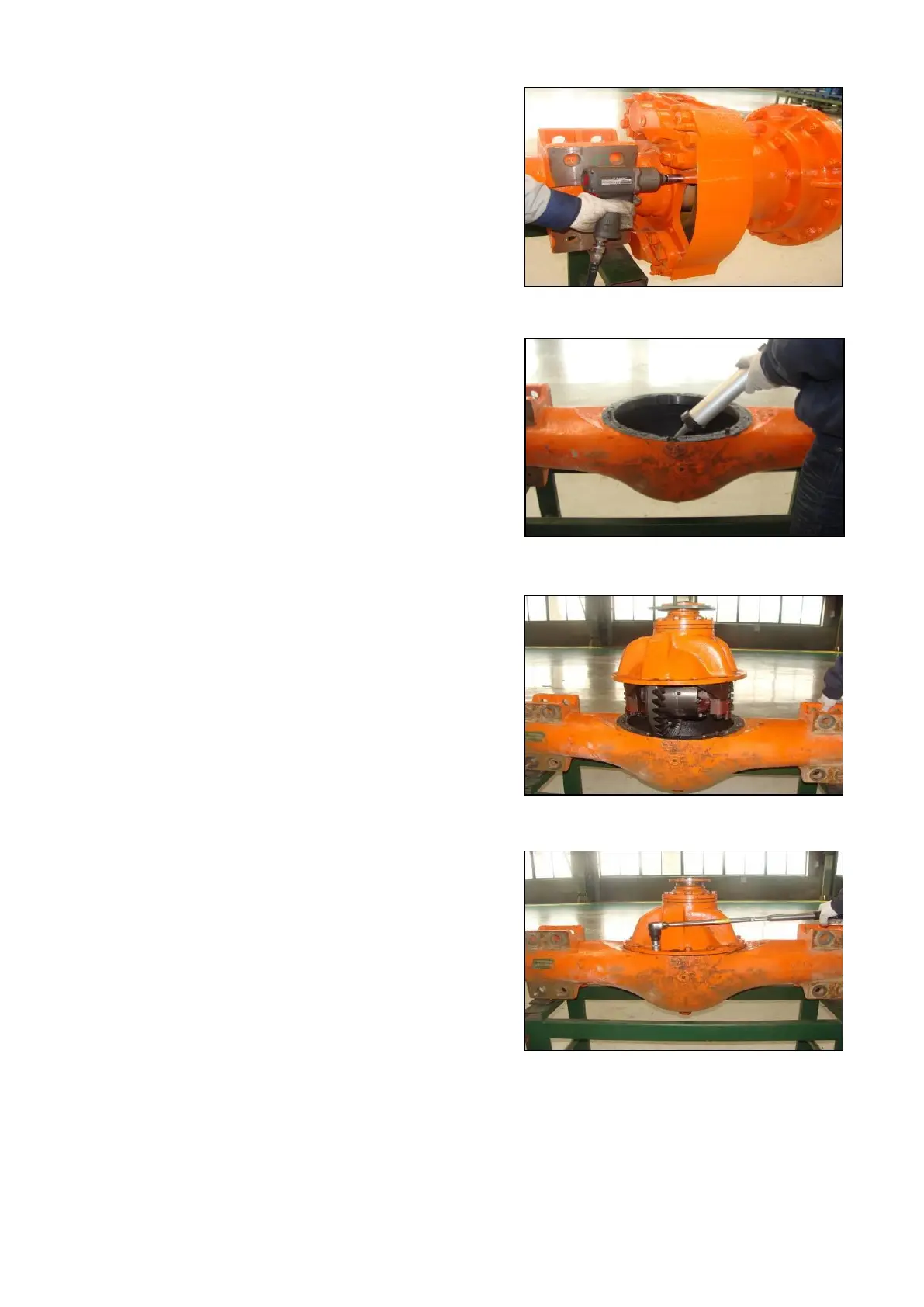

14. Assemble dust cover on brake caliper
tighten bolts of the dust cover with appropriate
tooling.
Note: Fastening torque
25
5 Nm,
15. Assemble main drive assembly
Coat Letai 598 silicon rubber surface sealant at the
joint surface between shell and bracket, coatφ3φ6
glue soluting ring with sealing surrounding inside of
thread hole at the large end of shell. The coated
sealant cannot be in the air for more than ten minutes.
Note: Letai 598 silicon rubber surface sealant
16. Assemble main drive
Hand up main drive assembly with overhead crane,
put main drive at main drive shell of the axle,
assemble locating pin.
17. Assemble bolts
Coat proper Letai 262 threat fastening sealant on bolts,
the coating position is 15mm length at thread end.
Fasten main drive assembly and shell assembly with
bolts and gaskets.
Note: Fastening torque
180 ~ 210Nm
Letai 262 threat fastening sealant
Fasten all screws according to symmetrical and
crossing principle.
Front Axle SPC000009
Page 31
