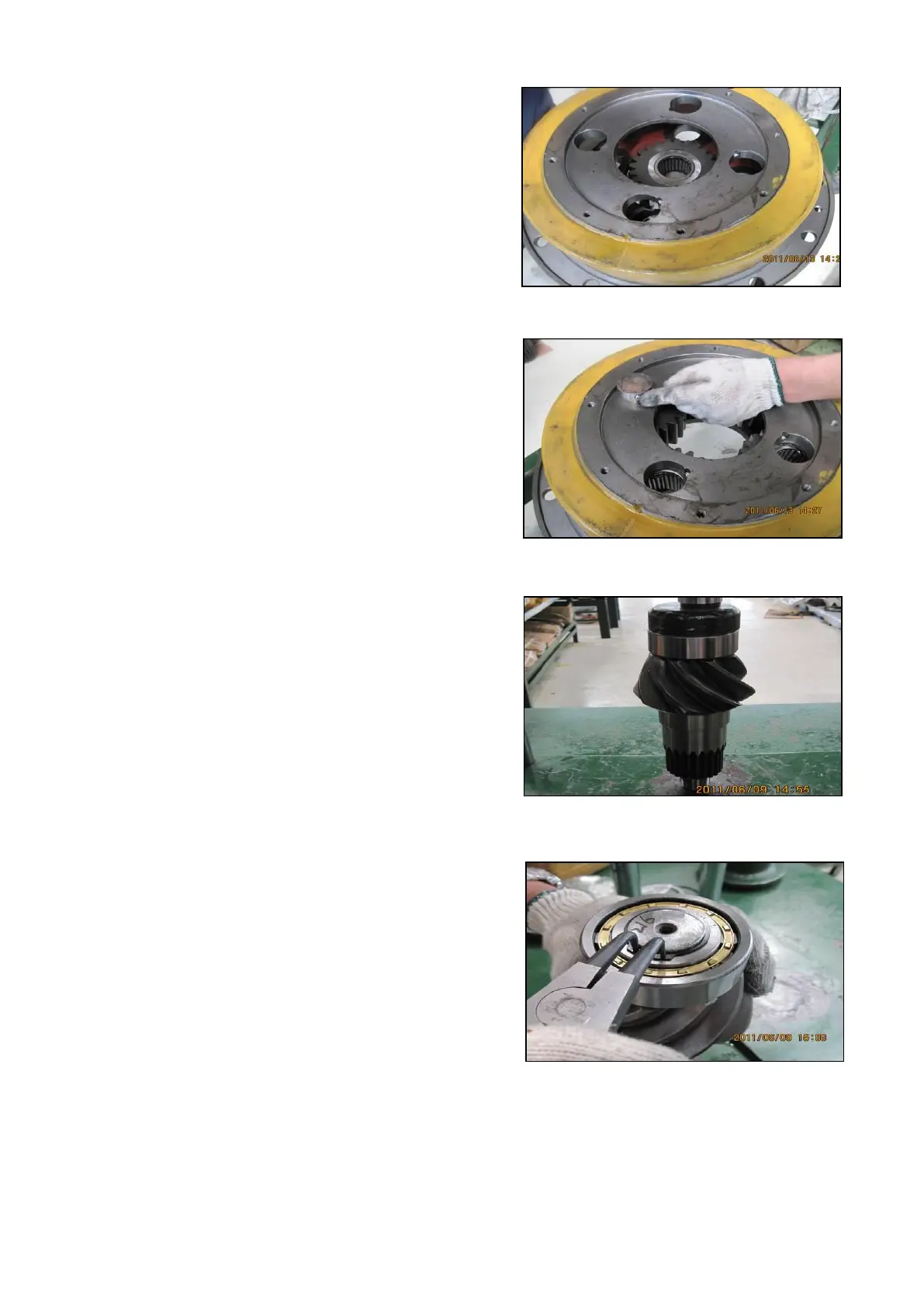

3. Assemble the planet gear with quill roller to the
seat hole of planet carrier.
4. Assemble steel balls in holes of planet gear shaft,
steel ball shall aim at semi circle of planet carrier, go
through the inner hole of planet gear and gasket
and assemble on planet carrier. After assembly,
planet gear shall rotate flexibly there is no blocking.
Install of main drive assembly
1. Assemble rolling bearing on bear neck of the
terminal with pressure machine, rotate to the left on
active spiral bevel gear front axle, and rotate to the
right side.
2. Assemble circlip.
Front Axle SPC000009
