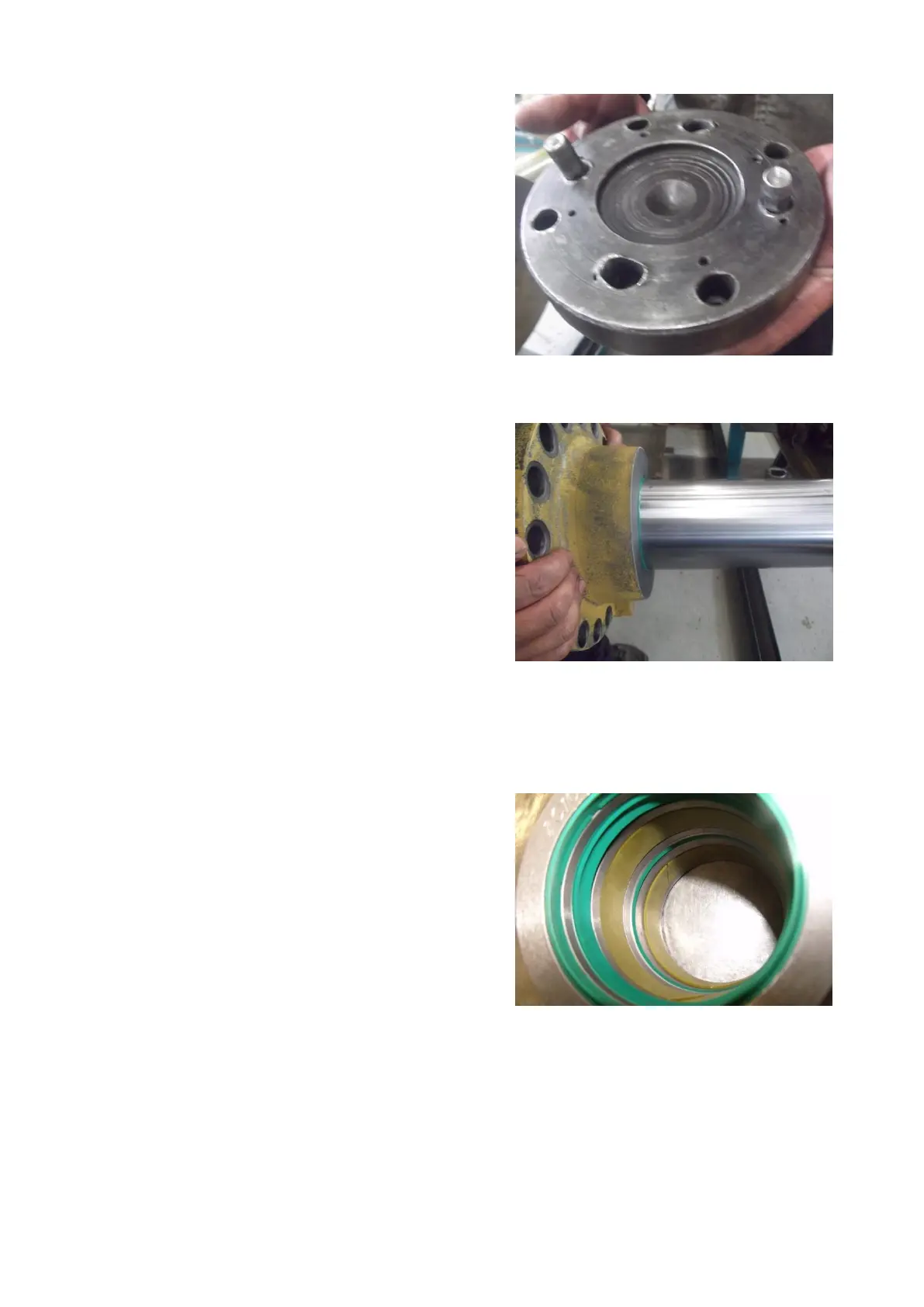

4. Dismantle piston with special piston tightening
tool and jackhammer (refer to figure 6).
5. Dismantle piston and cylinder cover assembly
(refer to figure 7).
6. Dismantle sealing parts with special tools (refer to
figure 8).
SPC000011 Cylinder
Page 6
Figure 6
Figure 7
Figure 8
