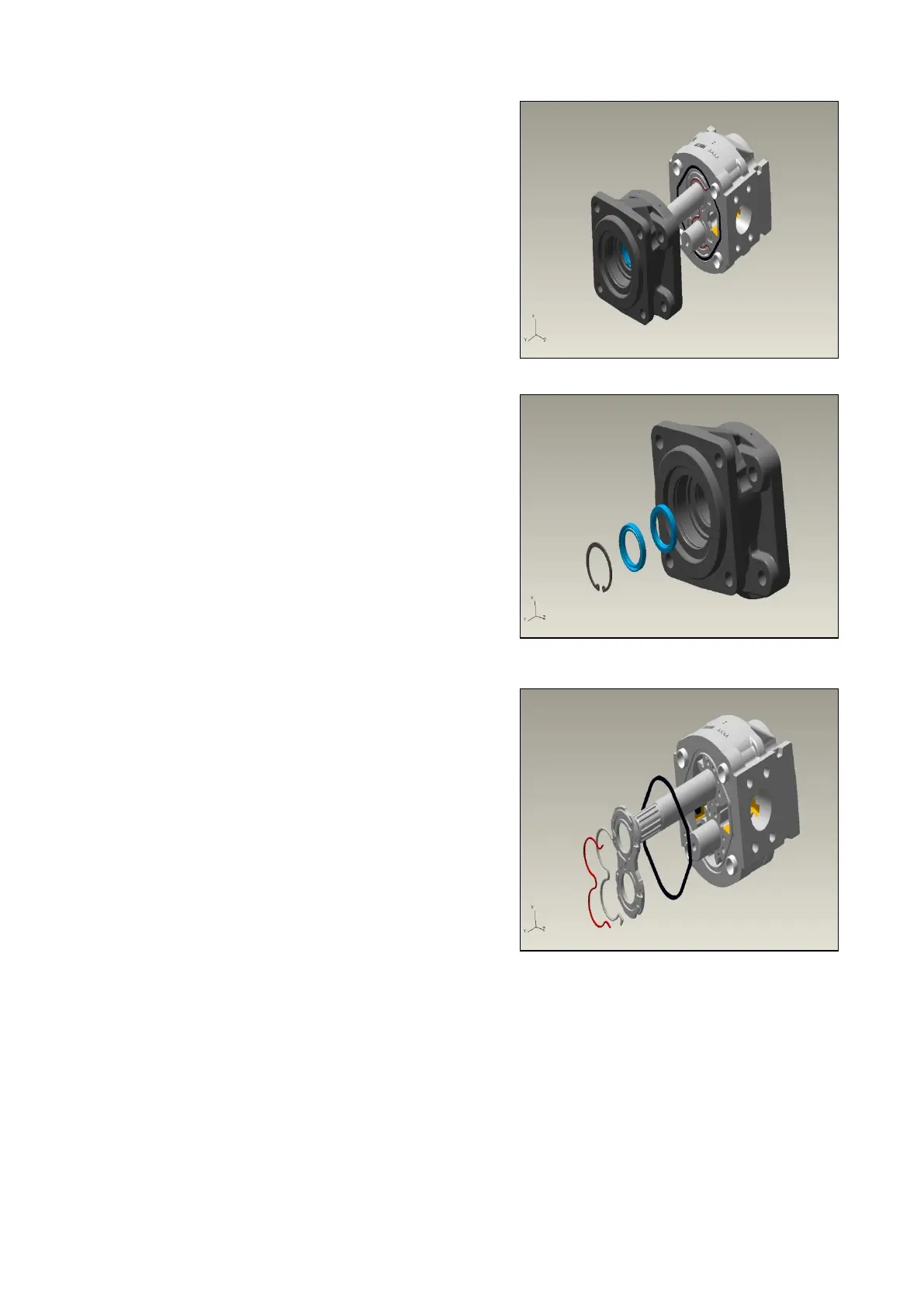

2. ① Remove mounting flange taking care to keep
it as straight as possible during removal.
Tap around the edge with rubber mallet in order to
break away from the body.
☞Ensure that while removing it, the drive shaft and
other components remain position. Use proper tool
to avoid shaft seal damage by sharp endge of shaft
3. Take out snap ring with proper tool and Remove
2 shaft seal with (-) screwdriver.
☞Take out the shaft seals only needed.
Shaft seals disassembled from the mounting
flange is not reusable
4. ① Remove the pressure plate with prearranged
parts, O-ring & back up ring from the working
section and examine it carefully.
② Take out square O-ring from the groove on the
body.
☞Be careful not to give any damage on the surface
of rings.
Main Pump SPC000012
Page 7
