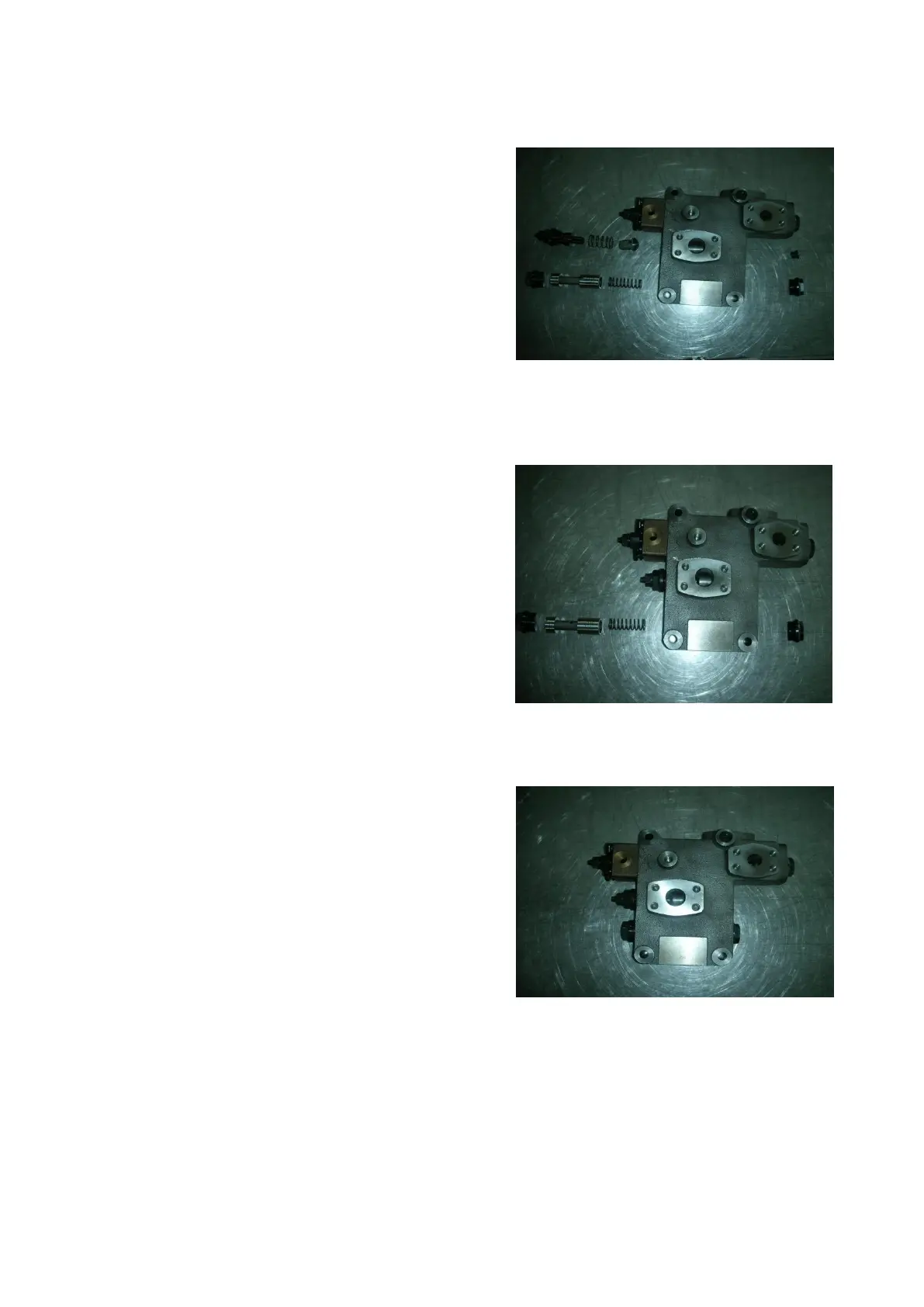

Assembling steps of priority valve
1. Install relief valve II, relief valve seat, priority
spring, priority spool and plug I into valve body from
left to right.
Tools: torque (electric) wrench, m27 sleeve, m22
sleeve and m16 sleeve
2. Install relief valve I, check valve spring, check
valve and plug into valve body from left to right.
Tools: torque (electric) wrench, m27 sleeve, m6
inner hexagonal spearhead
3. Install plug I, load discharging valve spring, load
discharging valve spool and plug II into valve body
from left to right.
Tools: torque (electric) wrench, m27 sleeve
Priority Valve SPC000016
Page 7
