Reference Number
Description
Reference Number
Description
1
Disconnect Switch
6
Battery Relay
2
Battery
7
Diode
3
Starter Switch
8
Charge Indicator
4
Fuse Box
9
Resistor
5
Alternator
Electrical System SPC000025
Page 13

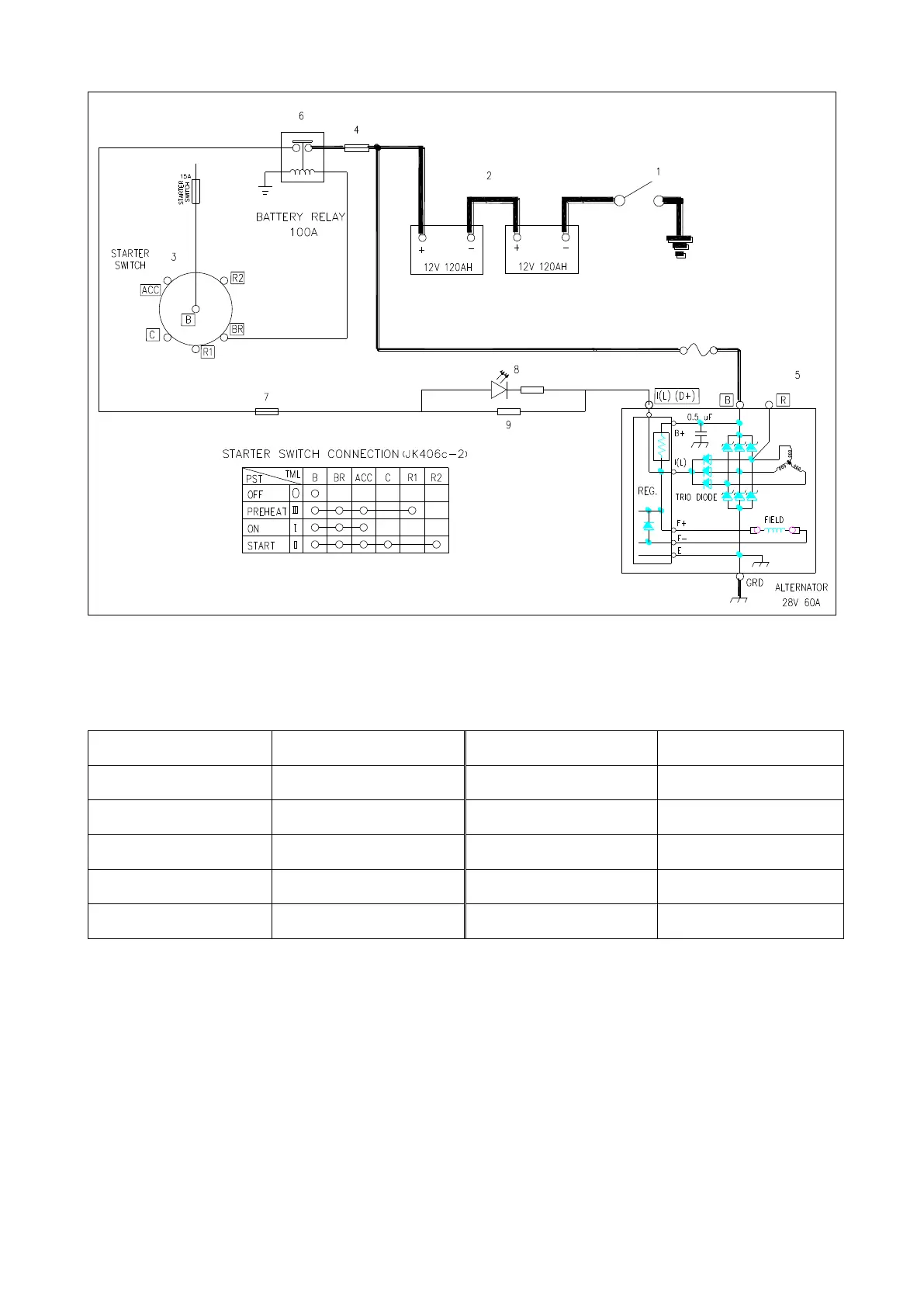

Figure 5. Charging system circuit diagram
