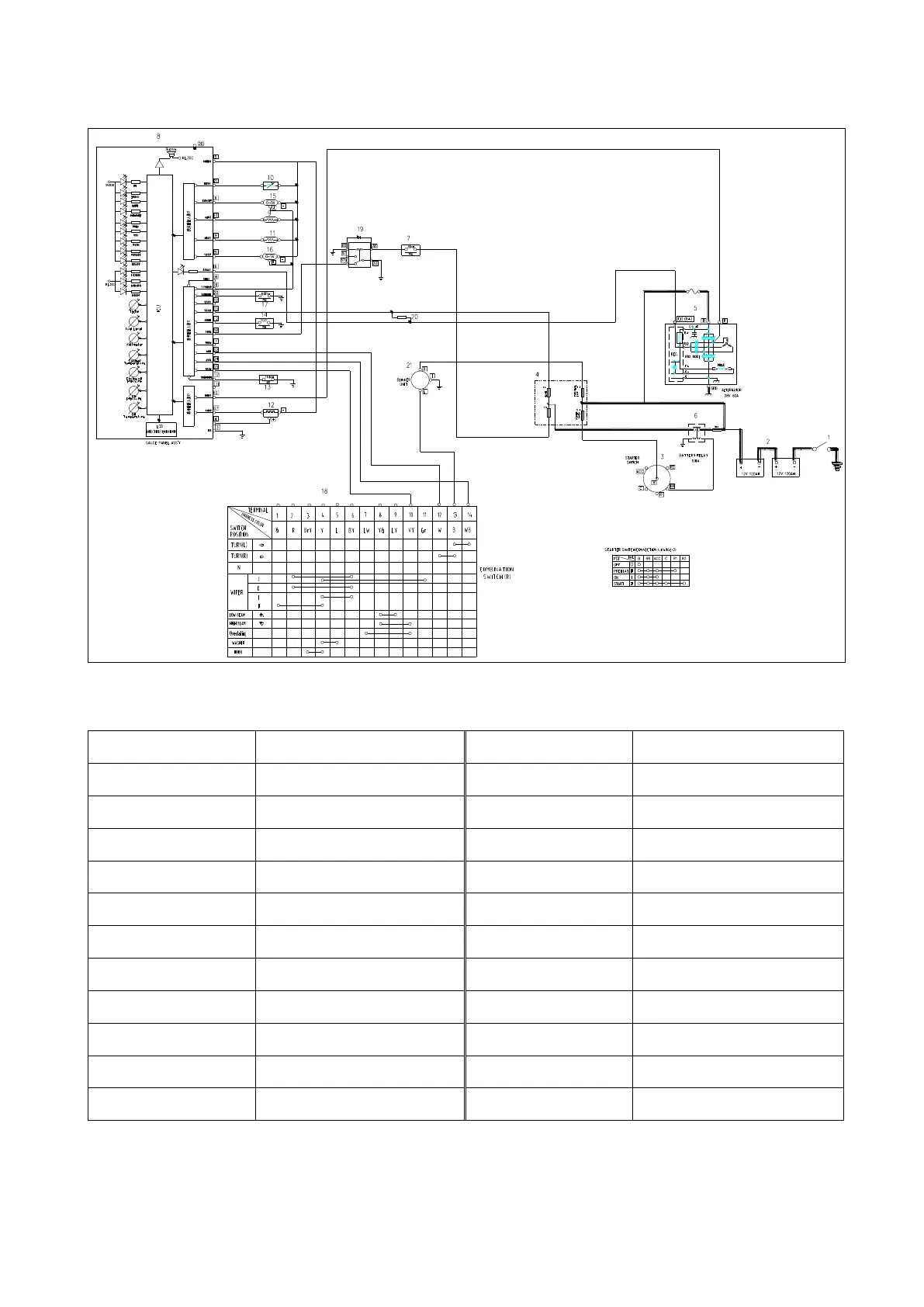

Schematic diagram of monitoring system
Reference Number
Description
Reference Number
Description
1
Disconnect Switch
12
Speed Sensor
2
Battery
13
T/M Oil Pressure Switch
3
Starter Switch
14
Water temp. Switch
4
Fuse Box
15
Eng. Oil Pressure Switch
5
Alternator
16
Air Pressure Alarm Switch
6
Starter Relay
17
Empty filter jams switch
7
Park press switch
18
Combination Switch
8
Gauge Panel
19
Relay
9
Water Temperature Sensor
20
Excitation resistance
10
Fuel Sensor
21
Blinker Unit
11
Transmission Temp Sensor
SPC000025 Electrical System
Page 20
Figure 8. Schematic diagram of monitoring system
