General Description
The loader frame is an articulated type: the front frame is joined to the rear frame with two hinge pins around
which the loader pivots for steering.
CAUTION!
When the loader is steered, the area near center
hinge pins becomes so narrow that you may get
caught between front and rear frames. Before
trying to service the loader, make sure to set
frame lock plate.
Prior to moving (traveling) the loader, make sure
the frame lock plate is set to original position.

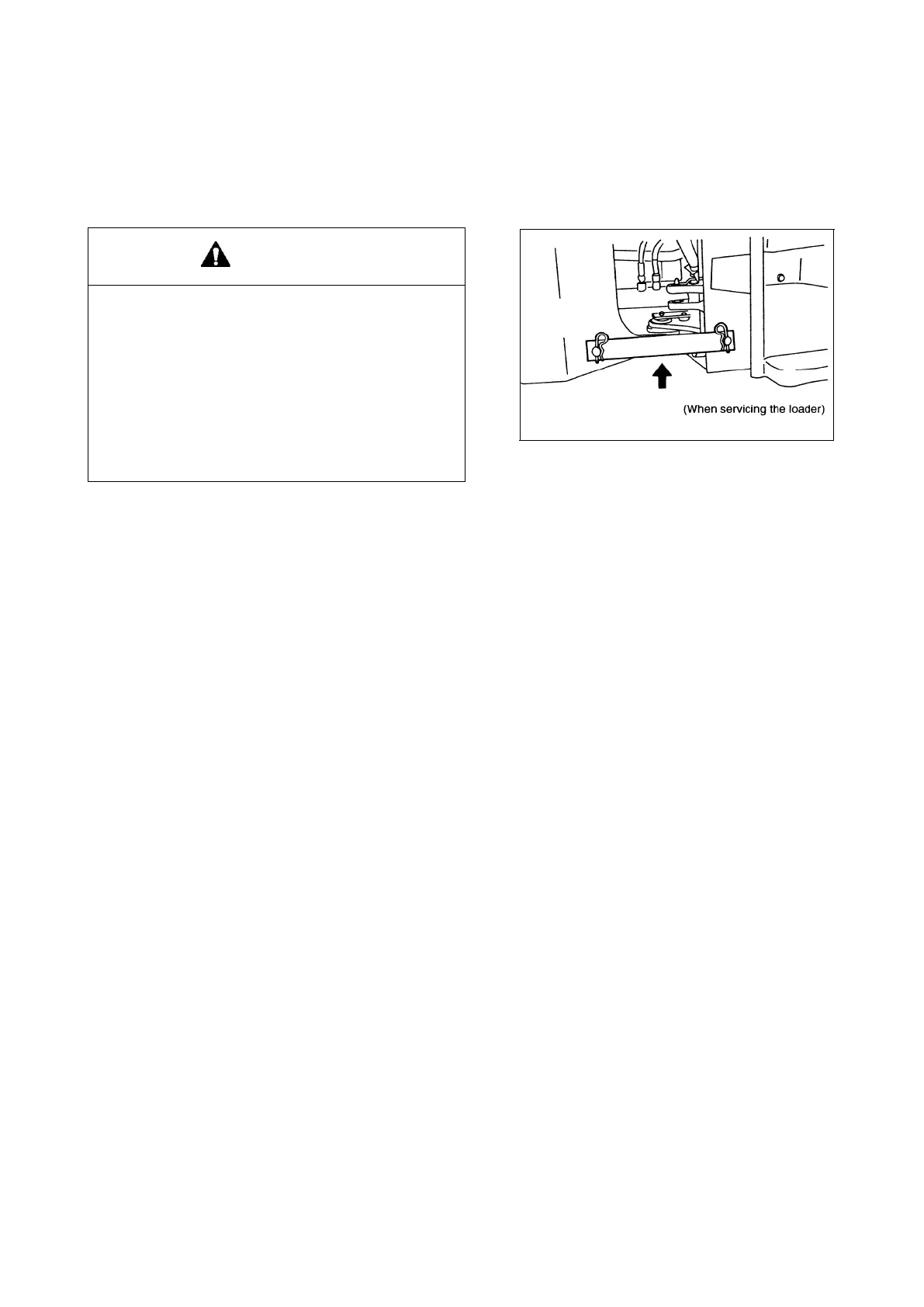

Center Joint (Articulation Joint) SPC000005
Page 3
Figure 1
