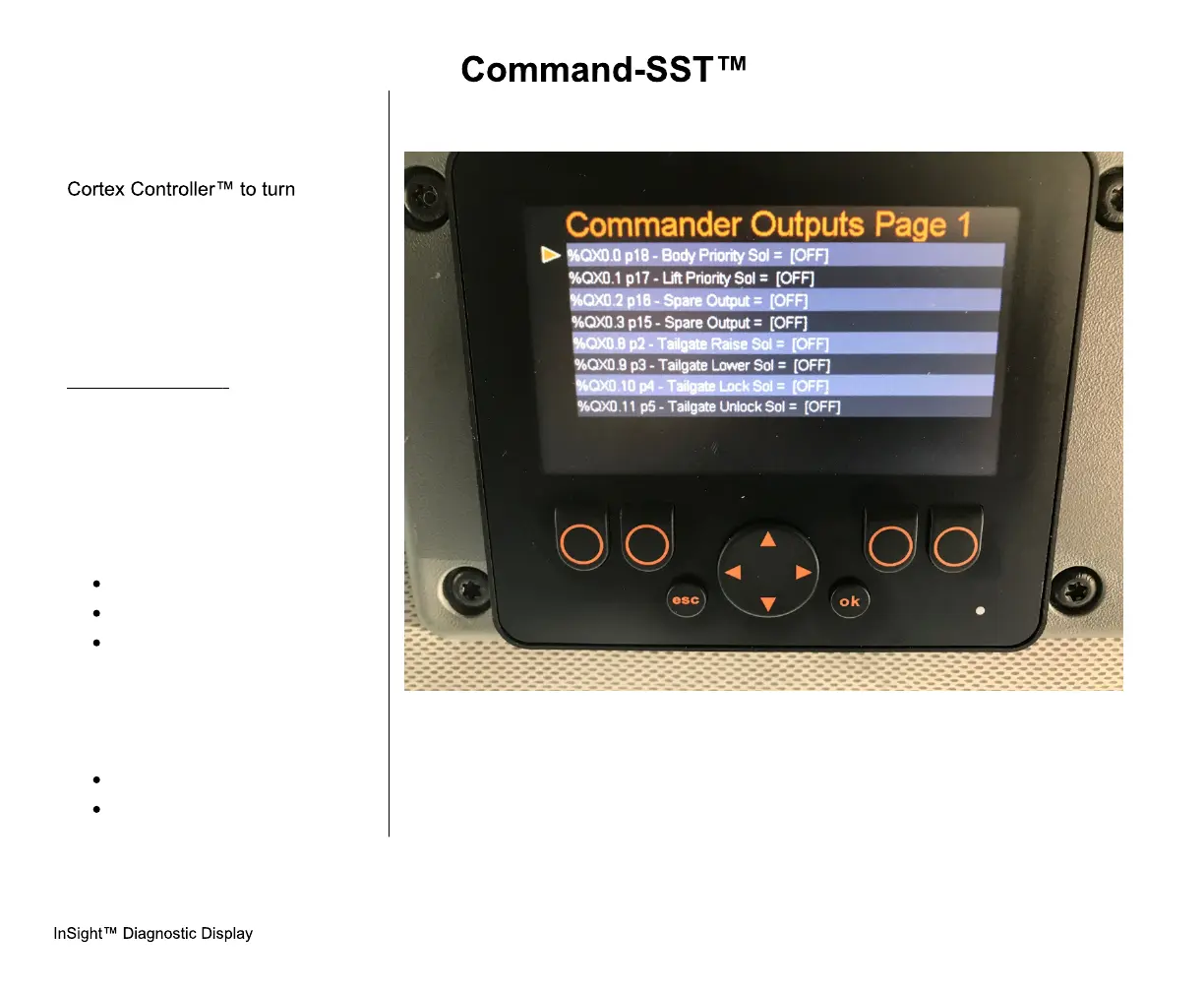

OUTPUTS SCREENS
Outputs are signals sent out of the
something ON or to make
something happen. Any signal that
is sent out of the controller is an
output. Output examples are:
Signals sent to valve coils that
move a valve spool or to turn on a
light. See the figure below.
Example Output:
Hopper Lights are ON: Turning the
HOPPER LIGHT switch ON sends
an Input signal from the switch to
the controller and the controller
sends an Output signal to the light
to turn the light ON.
Output signals send power to:
Coils/Solenoids
Lights
Body Valve Coils/Pulse
Width Modulation (PWM)
o Packer Extend PWM
o Packer Retract PWM
o Tailgate Flow PWM
Tailgate Valve Coils/SOL
Screen readouts
