LIFTING AND LOADING REFUSE
Use the following procedures at each stop along the route
to load refuse into the unit. Observe all DANGER and
WARNING hazard alerts.
Refer to Tables 1 and 2. Overhead Clearances . If
local rules and laws require more clearance, you must
follow them.
1. Move the unit to a position that is best to load the
refuse with the lift arm. Practice this maneuver for
best results. Pick Height can be set on the InSight
Diagnostic Display. See Pick Height Adjust Screen
. When in Spear Mode , the loader arm and
grabber pick position is prepositioned at the positions
Display. See Spearing Dimension Adjust Screen
.
2. ADJUST the container spot mirror for BEST
overhead vision of the hopper while you raise
container and, if equipped, use the grid lines on the
optional Heads-Up Display to help with lining up
on the right of this page.
3. PULL the SYSTEM POWER switch UP (and engage
the PTO if equipped). The PUMP push button light
should be ON (Green).
If the engine RPMs go above 900, the lift will not operate.

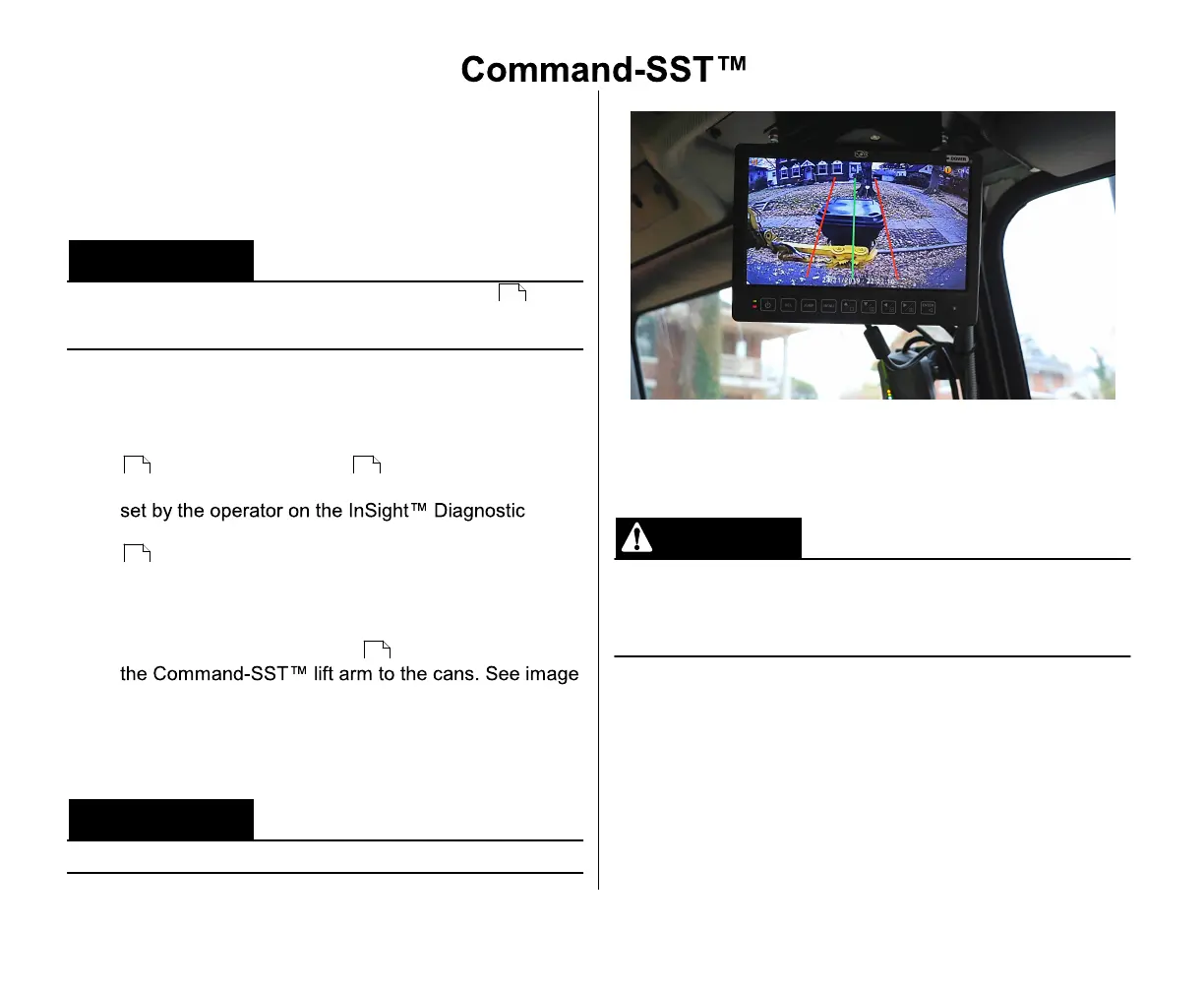

Figure 48. Optional 3rd Eye Heads-Up Display Grid
Lines
4. The Operator's foot is on the service brake and the
engine RPMs are at or below 900.
WARNING
Moving equipment can be dangerous. Serious injury or
death may occur if a person is in the wrong area or is not
attentive to the operations. Clear the area of all
unnecessary people before you operate the controls.
5. Make sure the loading area is clear of all
unnecessary people.
6. Make sure the packer is in the Auto-Pack Mode.
7. If equipped, the hopper cover or top door is OPEN.
You can damage the unit if you try to load refuse if
the hopper cover or top door is CLOSED.
28
105 68
106
65
