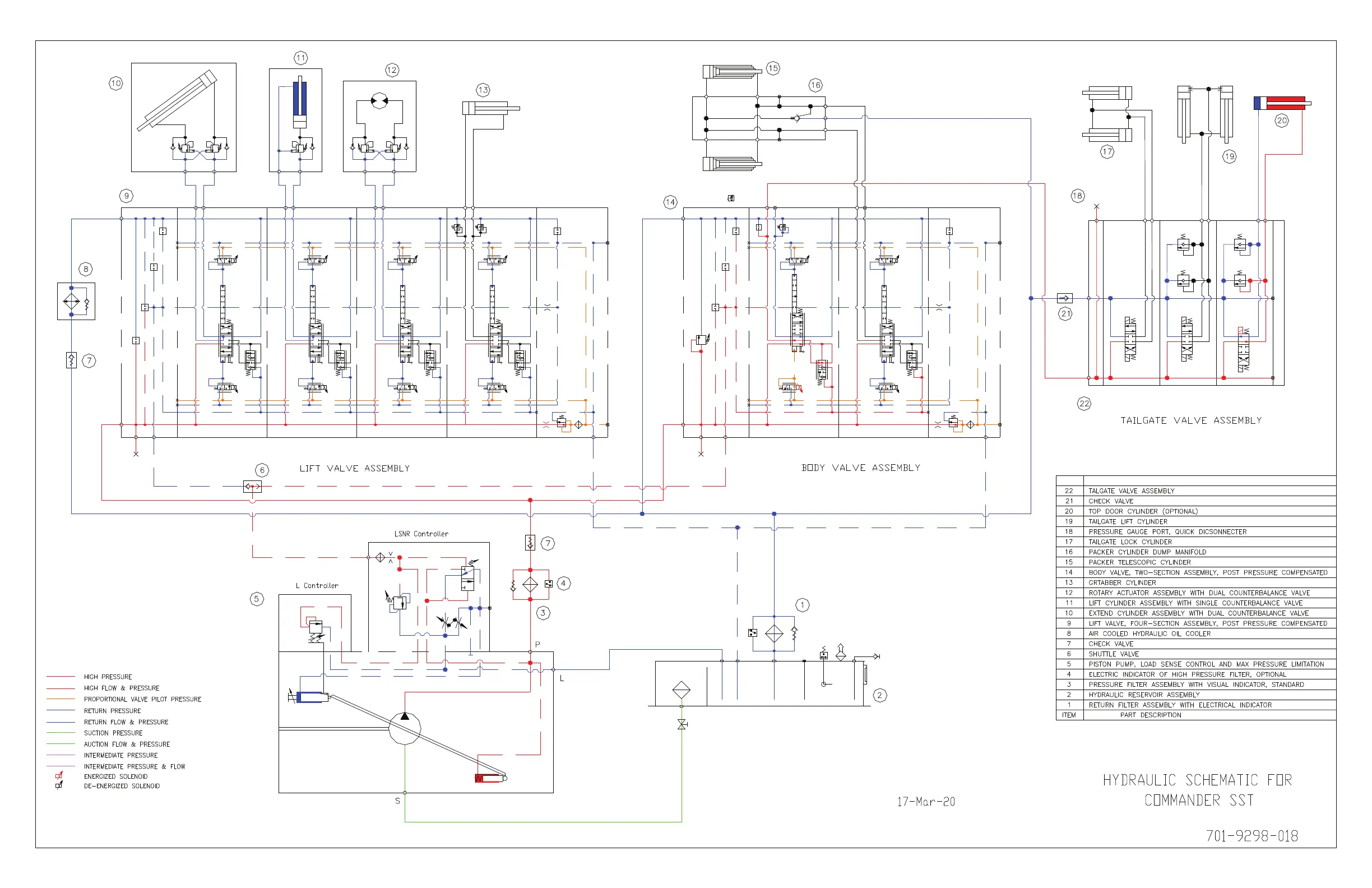

Dover HEIL Command-SST - Hydraulic Schematic, Top Door Open - 701-9298-018

PISTON PUMP
ST
Packer Cylinder
Extend / Retract
Tailgate Section
A2 B2A1 B1
P
T
D1
R
D2
LS
M
PG 2
2800 psi
1300 psi
1300 psi
b3
a3
b2
a2
1700 psi
Tailgate Lock
Lock / Unlock
Tailgate
Raise / Lower
Top Door
Open / Close
A2
B2
T/G RAISE CYL.
A1
B1
P
T
(OPTION)
A3
B3
TOP DOOR CYL.
PG 3
2500 psi
(OPTION)
ELECTRICAL INDICATOR
PRESSURE FILTER
1300 psi
1300 psi
P1
P2
b1
a2
b2
a3
b3
a4
b4
b1
a1
b1
a1
Extend Cylinder
In / Out
Lift Cylinder
Down / Up
Rotary Actuator
Dump / Undump
Grabber Cylinder
Release / Grab
PG 1
P
T
LS
M
D1
R
D2
a1
1300 psi
(A4 & B4)
B1A1 B2A2 B3A3 B4A4
a2
b2
T/G LOCK CYL.
T/G RAISE CYL.
R
E
R
E
CB2 CR2
CB1 CR1
T
VA
VAG
VBG
VB
Tailgate / Warming
LS
P R A A
LS
T/G LOCK CYL.
TOP DOOR OPEN
