JOYSTICK CONTROLS
The joystick controls all of the lift functions and has five (5)
push buttons to control various functions of the loader.

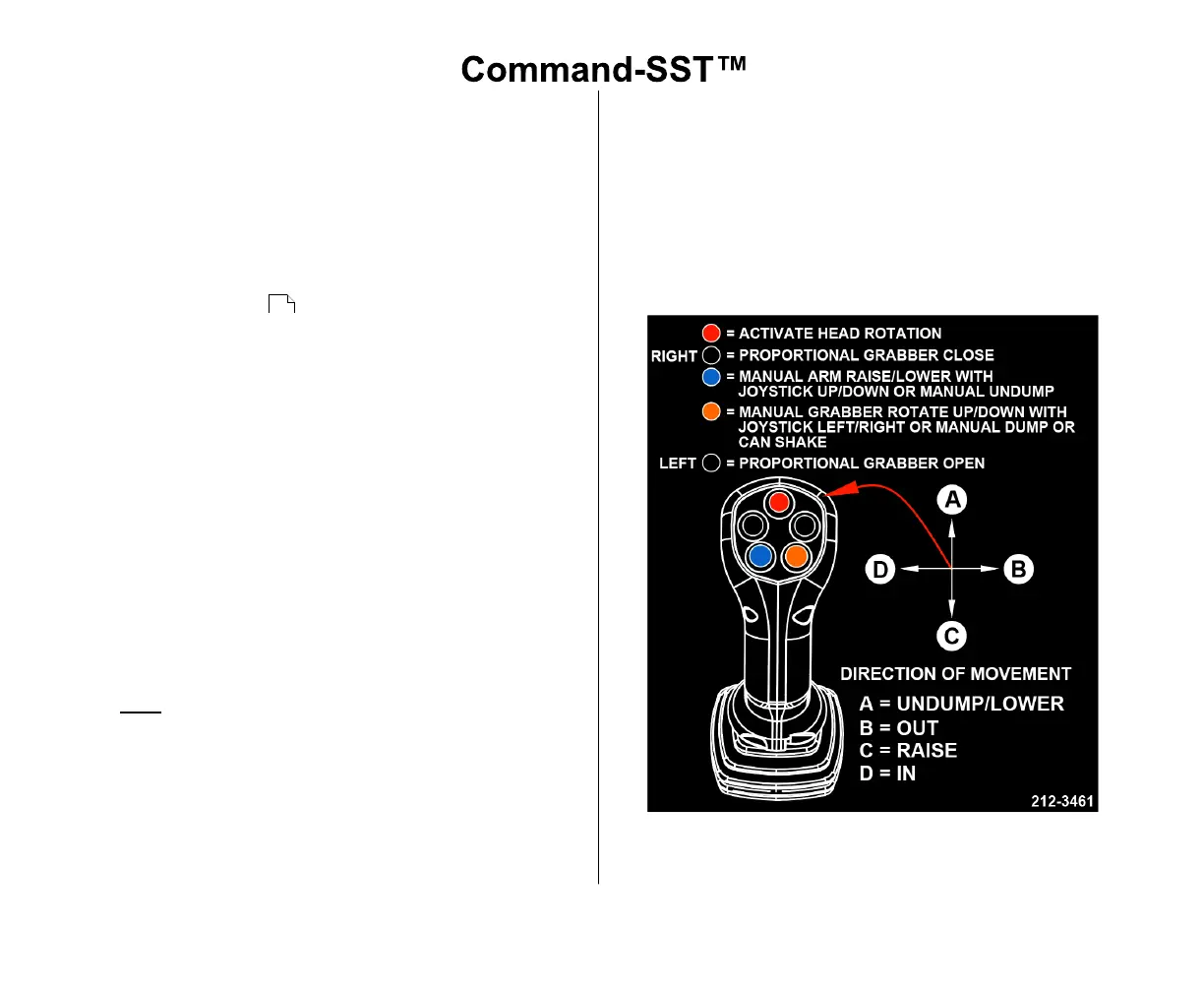

A.Joystick Movements
The joystick can be moved forward, backward and
sideways for the different functions while in
Coordinated Mode . See the figure the right for the
different movements and the functions they control.
Make sure you are familiar with the joystick controls for
your unit prior to operating the unit.
1. LIFT RAISE - In ABOVE / BELOW GRADE MODE,
PULL and HOLD joystick to RAISE the lift. Release
the joystick to stop the movement of the lift.
2. LIFT LOWER - In ABOVE / BELOW GRADE MODE,
push FORWARD and HOLD joystick to LOWER the
lift. Release joystick to stop the movement of the lift.
3. LIFT RETRACT (IN) - Move joystick to LEFT and
HOLD to RETRACT the lift IN. Release joystick to
stop the movement of the lift.
4. LIFT EXTEND (OUT) - Move joystick to RIGHT and
HOLD to EXTEND the lift OUT. Release joystick to
stop the movement of the lift.
Note: In COORDINATED MODE for LIFT RETRACT
(IN) and LIFT EXTEND (OUT), Raise/Lower Cylinder
will respond accordingly to keep lift level. In ABOVE /
BELOW GRADE MODE for LIFT RETRACT (IN) and
LIFT EXTEND (OUT), only the In/Out Cylinder will be
active and will move proportionally based on the
percentage that the joystick is moved.
5. UNDUMP - In COORDINATED MODE, push joystick
FORWARD and HOLD for to move lift OUT and
DOWN to place container on the ground. Release
joystick to stop the movement of the lift.
6. Sensor (Dead Man) - The Operator's hand must be
grasped around the Joystick control lift
functions. If the joystick is released, the joystick lift
functions will not operate.
