FUELING PROCEDURE (CONTINUED)
B.Types of Fueling Hoses
Dependent upon the fueling station, different types of
fueling hoses may be utilized. Refer to the figures below
and on the next page to determine which type of fueling
hoses you will be using.
1. Type 1:
When utilizing this type of nozzle, follow directions
below to refuel:

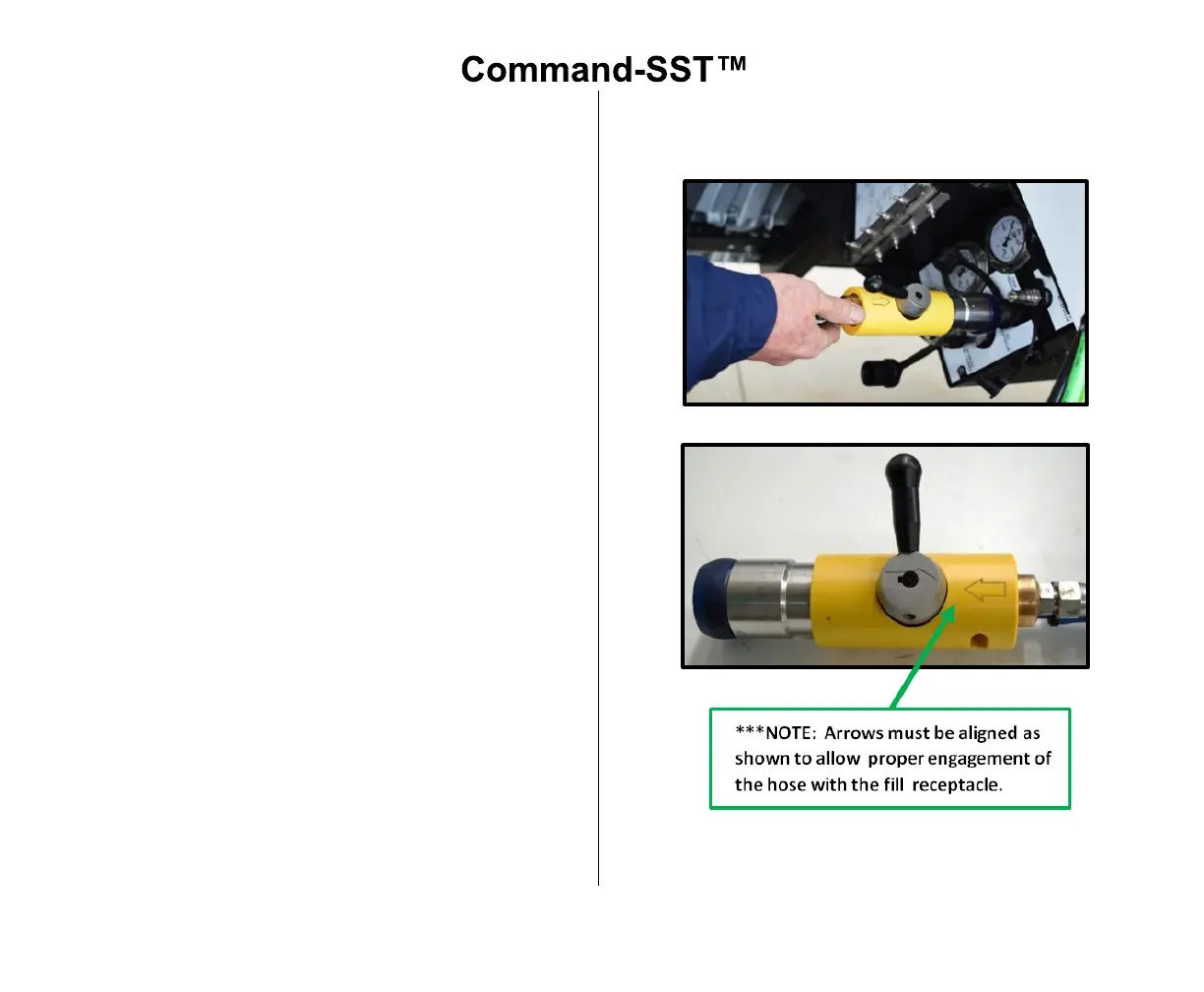

a. Slide the nozzle over the receptacle intake. In
order to properly engage the fill hose with the
receptacle, hold the nozzle in one hand. With the
free hand, twist the lever counterclockwise to line
up the two arrows, facing each other. Complete
the connection by pushing the fueling hose fully
onto the receptacle.
b. Once the hose fits completely onto the fill
receptacle, you will hear a click and the arrow on
the lever will shift, misaligning with the arrow on
the actual hose. This indicates that the hose
fueling nozzle is properly seated onto the
receptacle.
c. When the hose fully connects, turn the lever
clockwise until both arrows are pointing toward
the fill receptacle to begin fueling.
d. When fueling is complete, release the nozzle
connection. Holding the nozzle in one hand, use
the other hand to turn the nozzle so that arrows
again point toward each other (as shown in step
"a"). You will hear a release of pressure.
To Next Page
