CHANGE HYDRAULIC OIL FILTER ELEMENT

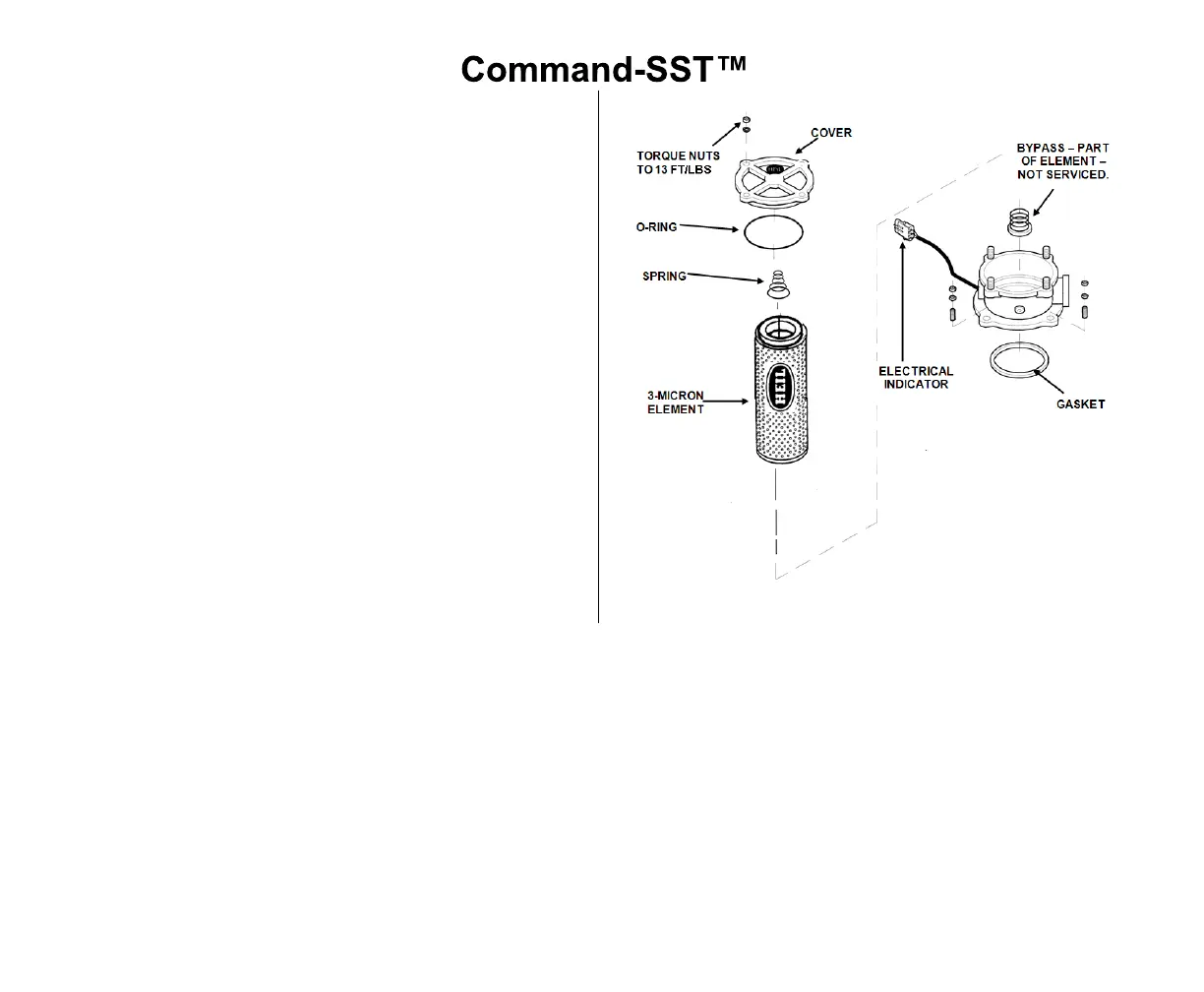

To change the hydraulic oil filter, refer to the figure below
and follow these steps:
1. Remove nuts and filter cover.
2. Remove the filter element with the by-pass assembly
and discard as required.
3. Clean the housing with a clean, lint-free cloth.
4. Check the o-ring and gasket. Replace them if
necessary.
5. Lubricate all o-rings and gaskets.
6. Install new element.
7. Reinstall cover with nuts. Torque nuts to 13 ft/lbs.
