50 Instructions for use Babyleo TN500 SW 1.0n
Operating concept
CAUTION
Uneven heat distribution
If the mattress tray is tilted, heat may be unevenly distributed on the mattress tray.
► If the mattress tray is tilted, make sure that the patient is adequately warmed.
Procedure:
1 Adjust the mattress tray height with the upper buttons:
– The right-hand key (1) raises the mattress tray.
– The left-hand key (2) lowers the mattress tray.

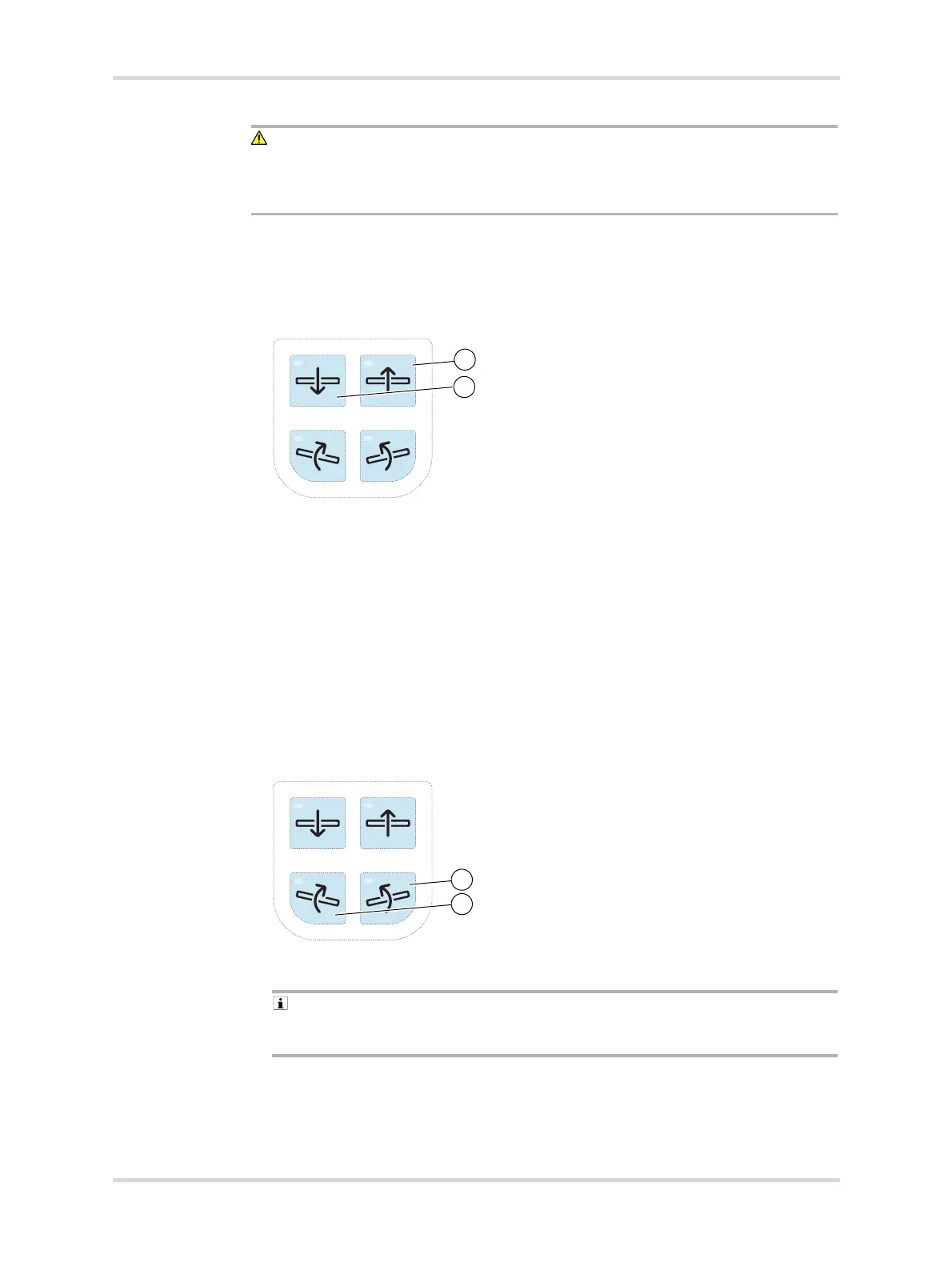

Fig. 22 Mattress tray control panel
– In incubator operation set the lowest position for the mattress tray so that
there is as much space as possible for the patient. This position also offers
good access to the patient.
When the lowest position is reached, the LED in the button (2) goes out.
– In radiant warmer operation Dräger recommends setting the highest position
for the mattress tray. This position provides the most effective warming for
the patient. This position also offers good access to the patient.
When the highest position is reached, the LED in the button (1) goes out.
2 Adjust the bed-tilt mechanism with the lower buttons:
– The two keys (3 and 4) tilt the mattress tray in the direction of the arrow.
Fig. 23 Mattress tray control panel
When the mattress tray reaches the horizontal position, the mattress tray
stops automatically. The mattress tray can be tilted further by pressing the
corresponding button again.
When the maximum mattress tray tilt is reached, the LED in the button (3 or
4) goes out.
✓ The height and tilt angle of the mattress tray are set.
2826228262
