56 Instructions for use Babyleo TN500 SW 1.0n
Assembly and preparation
5 Assembly and preparation
Follow the assembly instructions of the device.

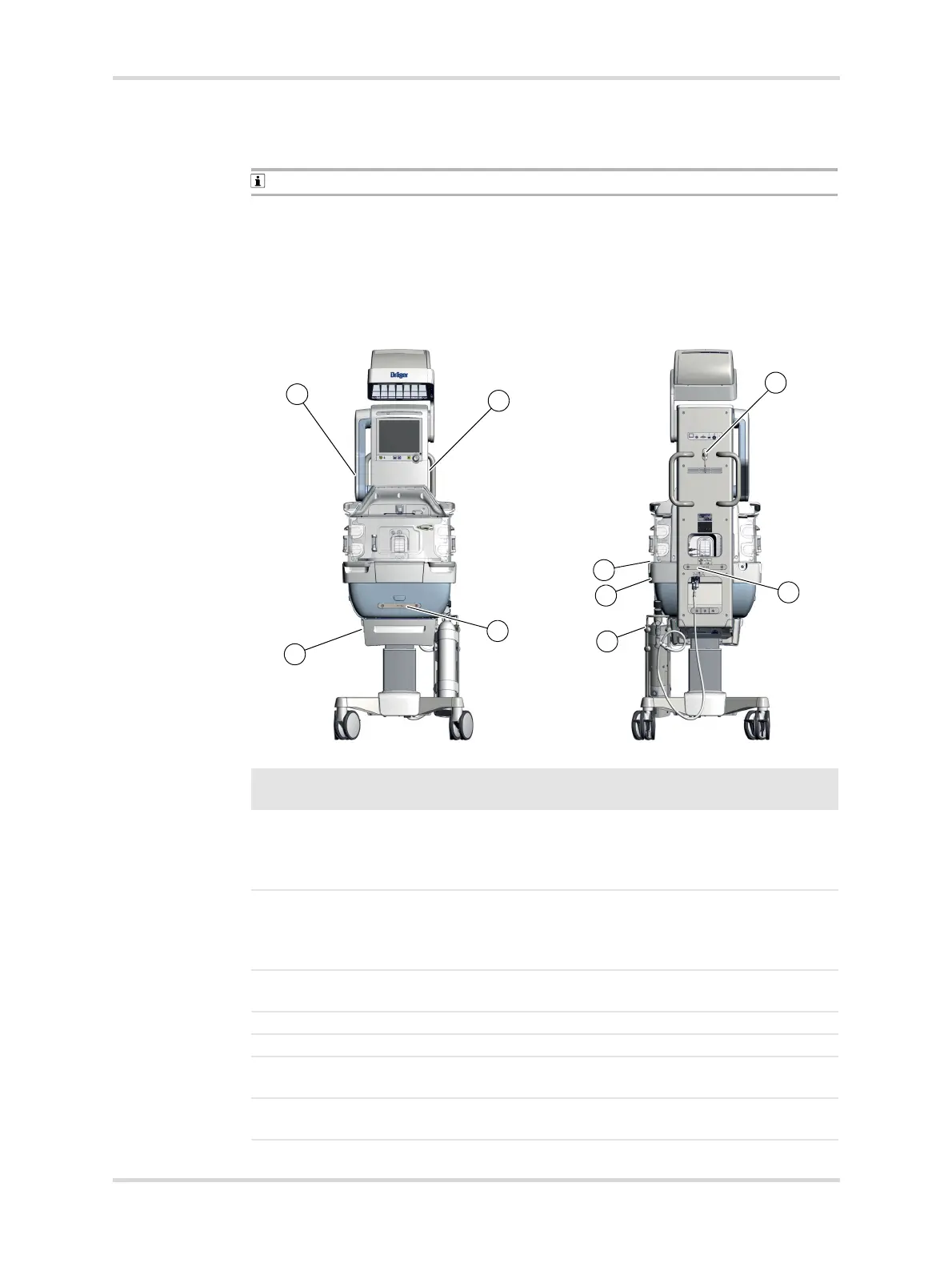

5.1 Maximum load
The maximum total weight including all loads is 220 kg (485 lbs). The maximum
load must not exceed 80 kg (176.4 lbs). The following load limits apply to the
individual areas:
No
.
Area Maximum load Examples
1 Duct rail on the side of
the hood arm; refer to
additional information
15 kg (33.1 lbs) (pivot
arm and accessory) at a
max. arm length of
300 mm (11.81 in)
Syringe pumps, monitors,
suction units, examination
lights, trays
2 Duct rail on the side
without the hood arm;
refer to additional infor-
mation
12 kg (26.5 lbs) (pivot
arm and load) at a max.
arm length of 300 mm
(11.81 in)
Syringe pumps, monitors,
suction units, examination
lights, trays
3 Standard rail, front 2.5 kg (5.5 lbs) Baskets, Babylog VN500
bed coupling, suction unit
4 Drawer (option) 5 kg (11 lbs) Patient accessories
5 Hook for humidifier 3 kg (6.6 lbs) Water bag or water sack
6 Standard rail, rear 2.5 kg (5.5 lbs) Baskets, Babylog VN500
bed coupling, suction unit
7 Gas cylinder holder
(option)
10 kg (22 lbs) Oxygen cylinders or com-
pressed air cylinders
2
1
3
4
5
6
8
7
9
