Dräger Savina

What's what
110
What's what

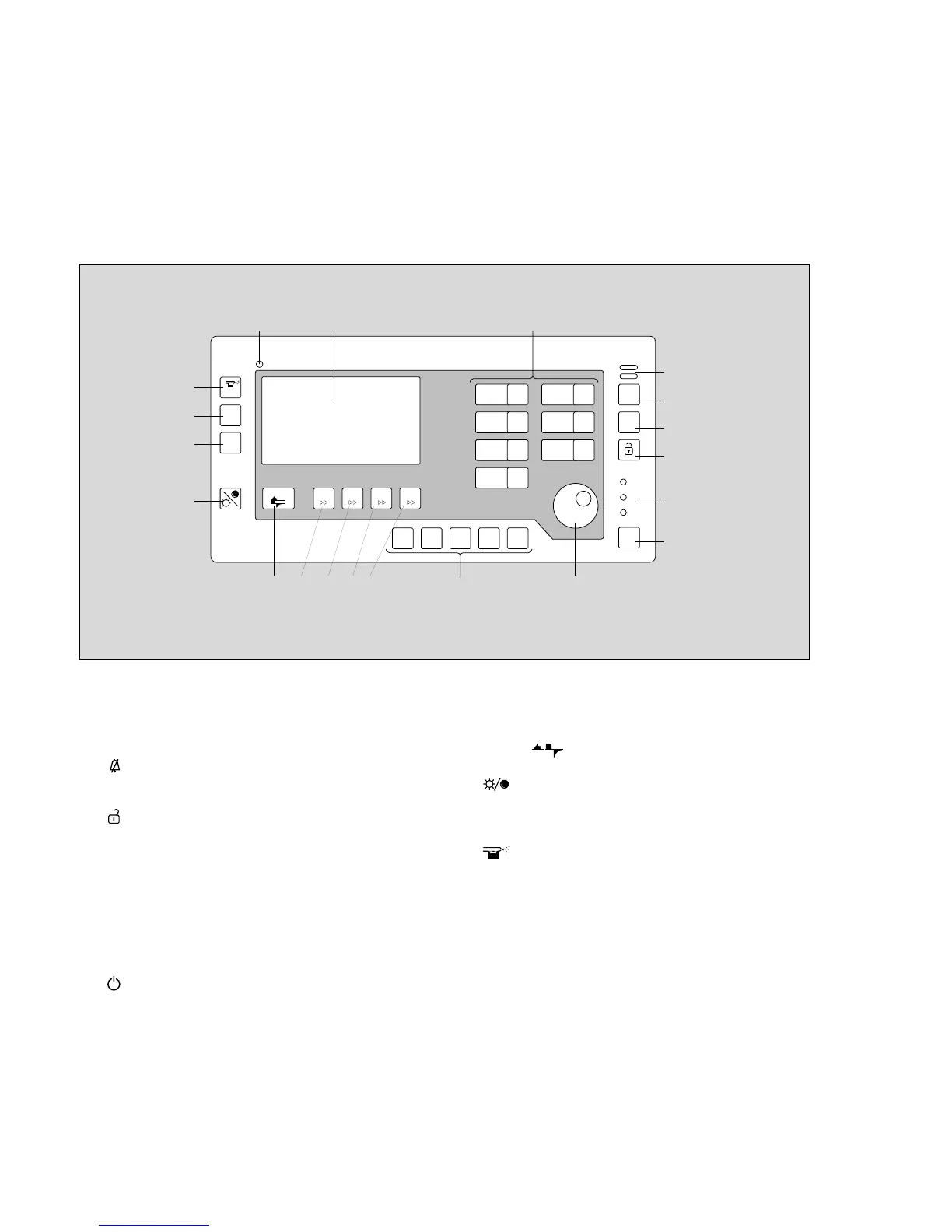

Control unit
1 Screen for displaying application-specific screen pages.
2 Parameter keys for setting the ventilation parameters and
displaying the settings.
3 Red and yellow lamps for alarms and advisory messages.
4 » 2 min« key for suppressing the audible alarm tone
for 2 minutes.
5 »Alarm Reset« key for acknowledging alarm messages.
6 » Lock« key for protecting against unauthorised
modification.
7 Power supply indicators
N Mains power
ext. J External battery or DC on-board network
int. J Internal battery
8 » Standby« key for changing between ventilation
and standby.
9 Central "turn and press" rotary knob for selecting
and confirming settings.
10 Mode keys for IPPV, SIMV, CPAP/ASB, BIPAP
11 »Config. ∆∆« key for system settings.
12 »Values ∆∆« key for displaying measured values.
084 37388
D
Savina
IPPV
Insp.
hold
O
2 Y
Absaug.
Verneb.
Lock
2 min
Standby
Einstell.
Kurven
Alarme Werte Konfig.
Trigger
SIMV BIPAP
O
g
CPAP
ASB
Alarm
Reset
V
T
mL L
Pinsp
mbar
∆PASB
über PEEP
PEEP
mbar
Tinsp.
s
f
bpm
O2
Vol.%
19
18
17
16
3
4
5
6
7
8
15 14 13 12 11 10 9
20 1 2
J
J
N
int.
ext.
D
Savina
IPPV
Insp.
hold
O
2 Y
Suction
Neb.
Settings
Curves
Alarms Values Config.
Trigger
SIMV BIPAP
O
g
CPAP
ASB
Alarm
Reset
V
T
mL L
Pinsp
mbar
∆PASB
above PEEP
PEEP
mbar
Tinsp.
s
f
bpm
O2
Vol.%
19
18
17
16
3
4
5
6
7
8
15 14 13 12 11 10 9
20 1 2
J
J
N
int.
ext.
13 »Alarms ∆∆« key for setting and displaying alarm limits.
14 »Settings ∆∆« key for setting other ventilation parameters
on the screen.
15 »Curves « key for changing to the main page
and for switching the curve displayed (Flow or Paw)
16 » « key for switching the screen brightness between
bright/dark.
17 »Insp. hold« key for manual inspiration.
18 »O2 Y Suction« key for bronchial suction.
19 » Nebul.« key for switching the pneumatic
medicament nebuliser on/off.
20 Trigger indicator.
