Dräger Savina User Manual

Preparation
93

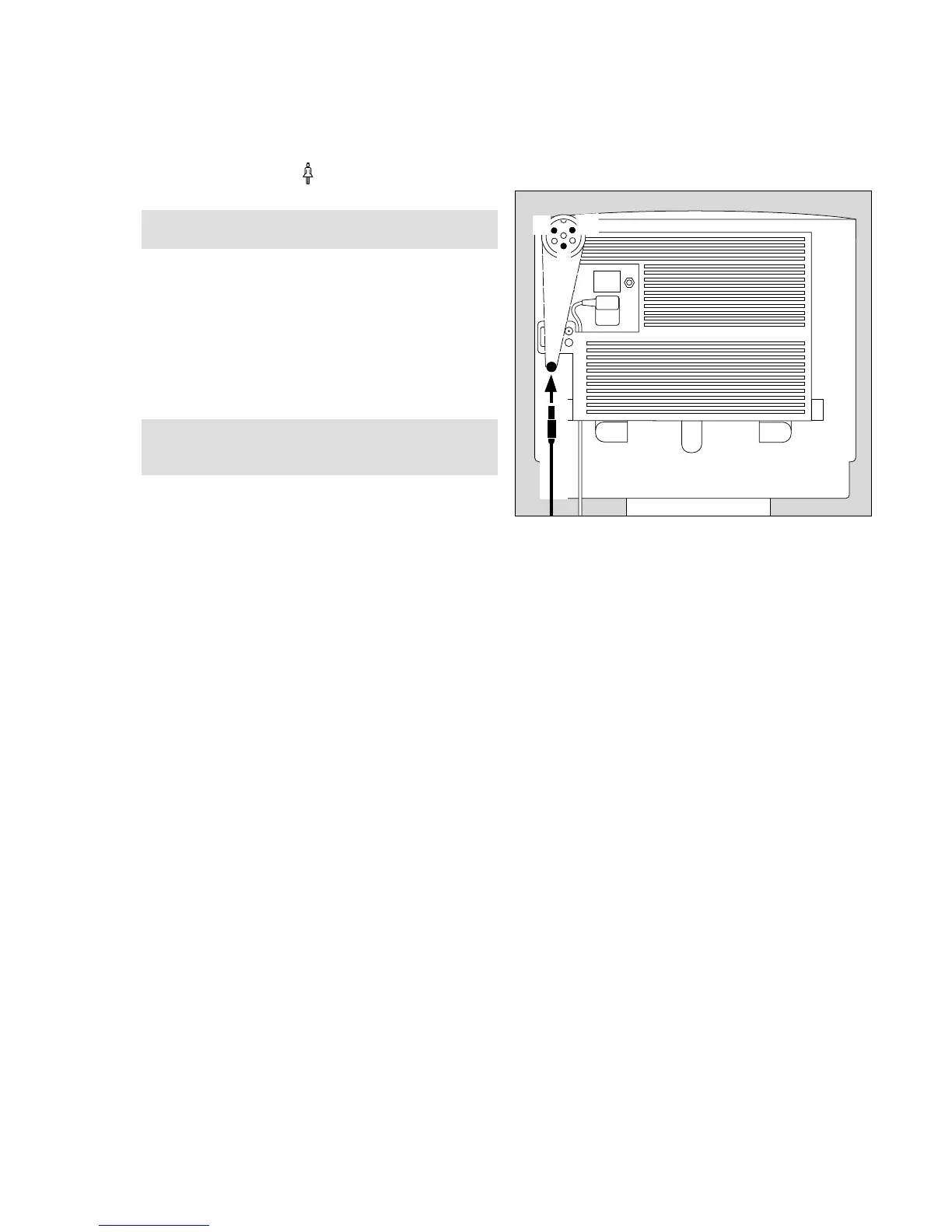

● Push the plug into the » « socket at the back and screw
in tightly.
Warning messages appear with 3 exclamation marks in the
upper line on screen; see page 31. Caution and advisory
messages will not be transferred. The nurse call system will
also be activated when the original alarm tone device is
defective, or the power supply to the device being used is cut
off.
● Test the connected nurse call system for proper
functioning.
Technical data
Potential-free DC contact
Input voltage max. 40 V =
Input current max. 500 mA
Switching power max. 15 W
Checking readiness for operation
● to be carried out after preparation.
The following functions are tested during this check:
— Operation of lamps/LEDs, displays and the audible alarm
— Ventilation function
— PEEP function
— Expiratory volume measurement MV
— Measurement of inspiratory O
2 concentration FiO2
— Lower alarm limit MV
— Lower alarm limit Paw
— Mains power failure alarm
—O2 alarm
Only alarm signals will be transferred through the nurse
call system.
The installation of the nurse call system does not replace
the regular Savina screen surveillance.
● Regularly check on-screen messages.
023 37261
1 5
3

Dräger Savina Specifications

General

FiO2	21 - 100 %
Ventilation Modes	CPAP/ASB
Display	Color
Power Supply	100 – 240 V AC, 50/60 Hz
Patient Range	Adult, Pediatric, Neonatal
Tidal Volume Range	20 to 2000 mL
Screen Size	12.1 inch
Inspiratory Time	0.1 - 10 s
