Dräger Savina

Care
76

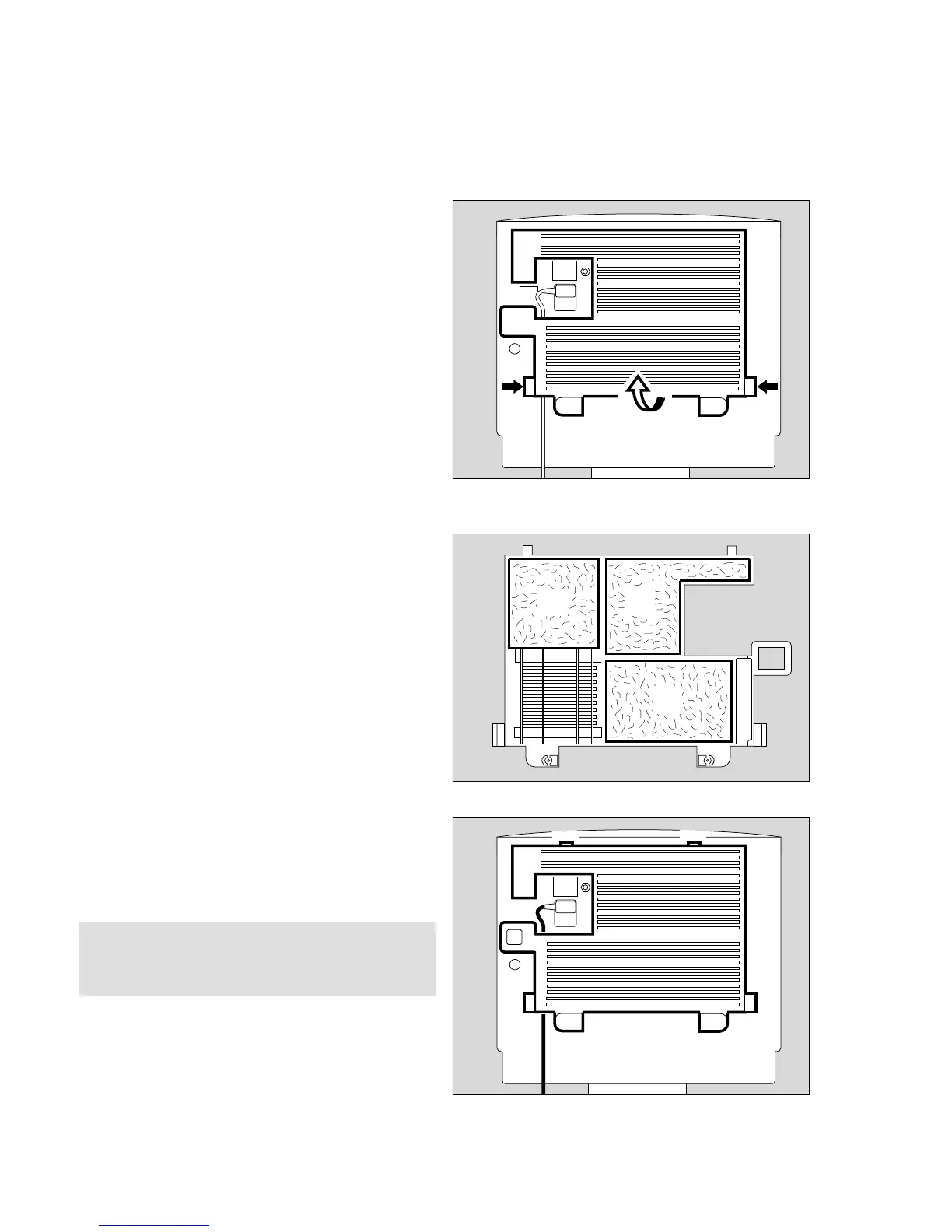

Replacing the dust filter set
— Inspect after 4 weeks for soiling, clean or replace as
necessary.
1 Hold down both latches,
2 lift filter cover and remove.
3 Remove used dust filter from filter cover.
● Fit new dust filter.
● Dispose of used dust filter with domestic waste.
4 Insert filter cover with two lugs into rear panel.
5 Position power cable under filter cover.
6 Push latches into housing until they engage.
Breathing air and cooling air are drawn in through the
filter cover.
● Do not cover, do not place up against a wall –
risk of device overheating.
097 29 170
11
2
098 29 170
3 3
3
114 29 170
5
66
44
