Dräger Savina

Configuration
50

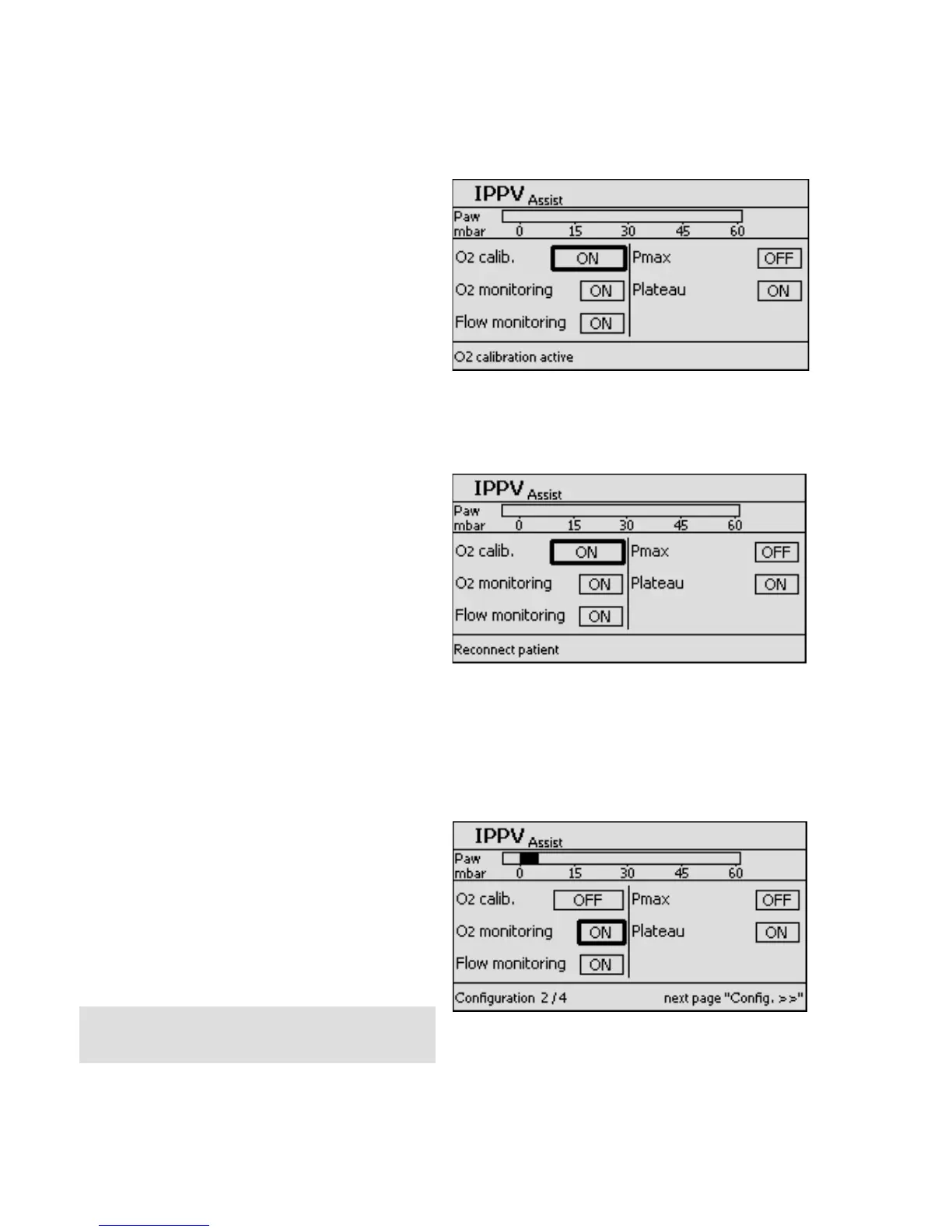

Message in the information line on screen:
O2 calibration active
After 60 seconds the following appears in the information line:
Reconnect patient
● Immediately reconnect patient.
Thereafter appears:
O2 calibration ok
The O2 calibration is completed, Savina ventilates once more
using the original settings.
Disconnection and change of O2 concentration would activate
the alarms. For this reason Savina turns the alarms off during
calibration.
If the patient is not reconnected within 30 seconds, Savina
continues ventilating and all the alarms are reactivated.
If the following alarm appears after calibration:
!!! O2 measurement inop.
or
!!! FiO2 low
● Replace O2 sensor, see page 77.
After replacing the O2 sensor:
● Allow about 20 minutes warm-up time to elapse,
then calibrate.
FiO2- or flow monitoring ON/OFF
For instance, when a used O2 or flow sensor cannot be
replaced immediately.
● Use alternative monitoring, as otherwise there will be a
restricted monitoring function.
● Press »Config. ∆∆« key repeatedly until
»Configuration 2/4« appears.
● Select the desired line = turn the rotary knob,
confirm = press the rotary knob
● Set to »ON« = turn the rotary knob,
confirm = press the rotary knob.
The corresponding monitoring is activated.
● Set to »OFF« = turn the rotary knob,
confirm = press the rotary knob.
Display in Alarm line:
! Flow monitoring off
or
! O
2 monitoring off
O22
22
monitoring and flow monitoring and associated
alarms are permanently deactivated.
● Provide alternative monitoring.
