Medicament nebulization
Applicable in every ventilation mode.
Will only function with O2 supply between 2.7 to 6 bar.
Savina applies the medicament aerosol in synchronization
with the inspiration only in the inspiratory flow phase and
automatically maintains the minute-volume constant.
Savina automatically turns the nebulizer off after 30 minutes.
The flow sensor will be automatically heat-cleaned and
calibrated after the aerosol treatment to prevent false results
during flow measurement.
Due to the inability of Savina to measure this O2 concentration
increase, an incorrect O2 reading will be displayed.
● Connect your O2 supply 2.7 to 6 bar – from the medical O2
pipeline system or from a cylinder, to the side of Savina.
● Prepare the medicament nebulizer in accordance with the
accompanying instructions for use.

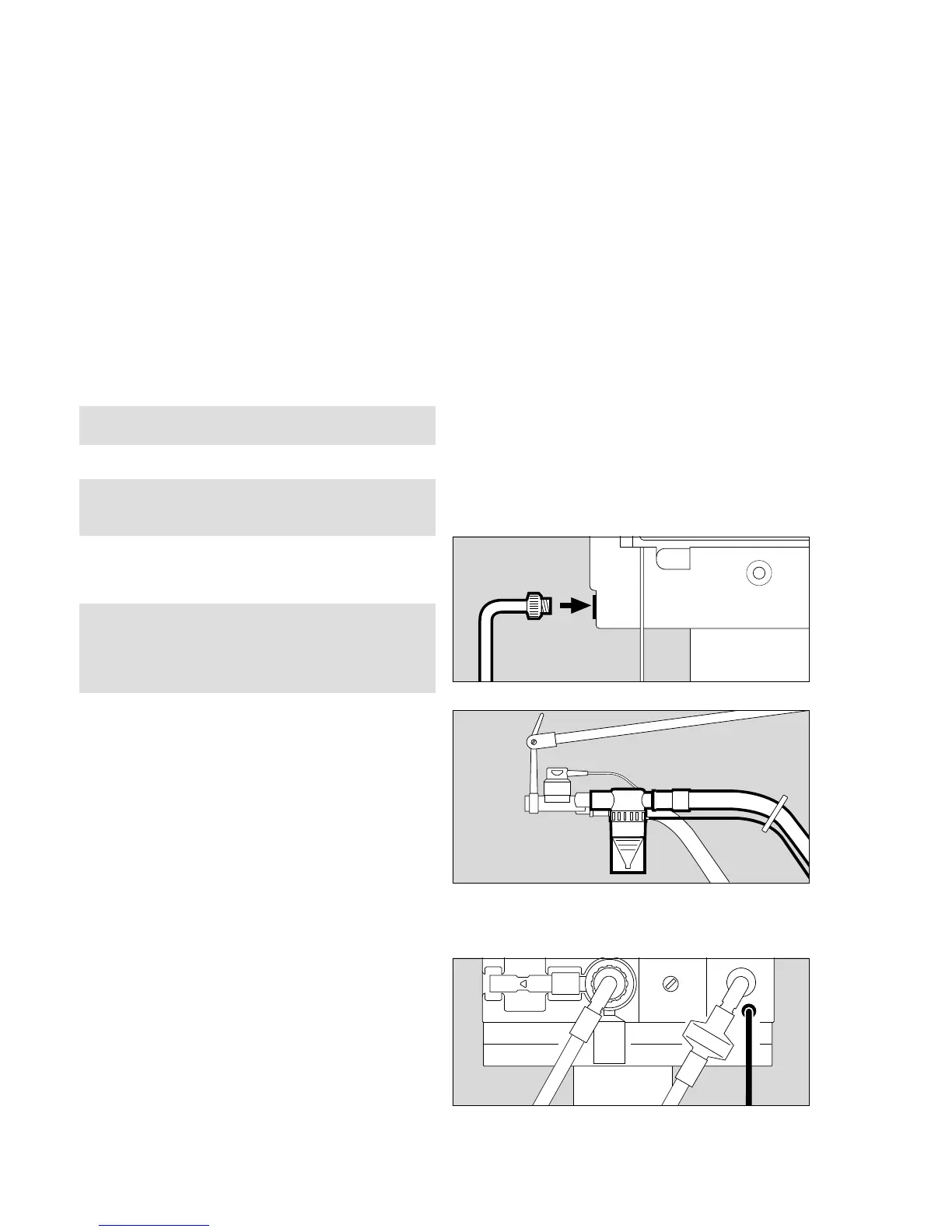

1 Connect the nebulizer to the inspiratory side of the Y-piece
(temperature sensor side).
2 Connect the inspiration hose to the medicament nebulizer.
● Swivel the medicament nebulizer to the vertical position.
● Using clamps, route the nebulizer hose back to the
ventilator along the ventilation hose.
3 Connect the nebulizer hose to the spigot at the front side of
Savina.
● Fill the medicament nebulizer in accordance with the
accompanying instructions for use.
● Danger of fire! Do not nebulize flammable
medicaments.
Since Savina uses pure oxygen for the medicament
nebulization, an increase of the desired inspiratory
O2 concentration may be caused.
Only use medicament nebulizer 84 12 935 (white
centerpiece).
Use of other pneumatic medicament nebulizers may result
in considerable discrepancies in the minute-volume
reading!
