Dräger Savina User Manual

Operating Concept
11

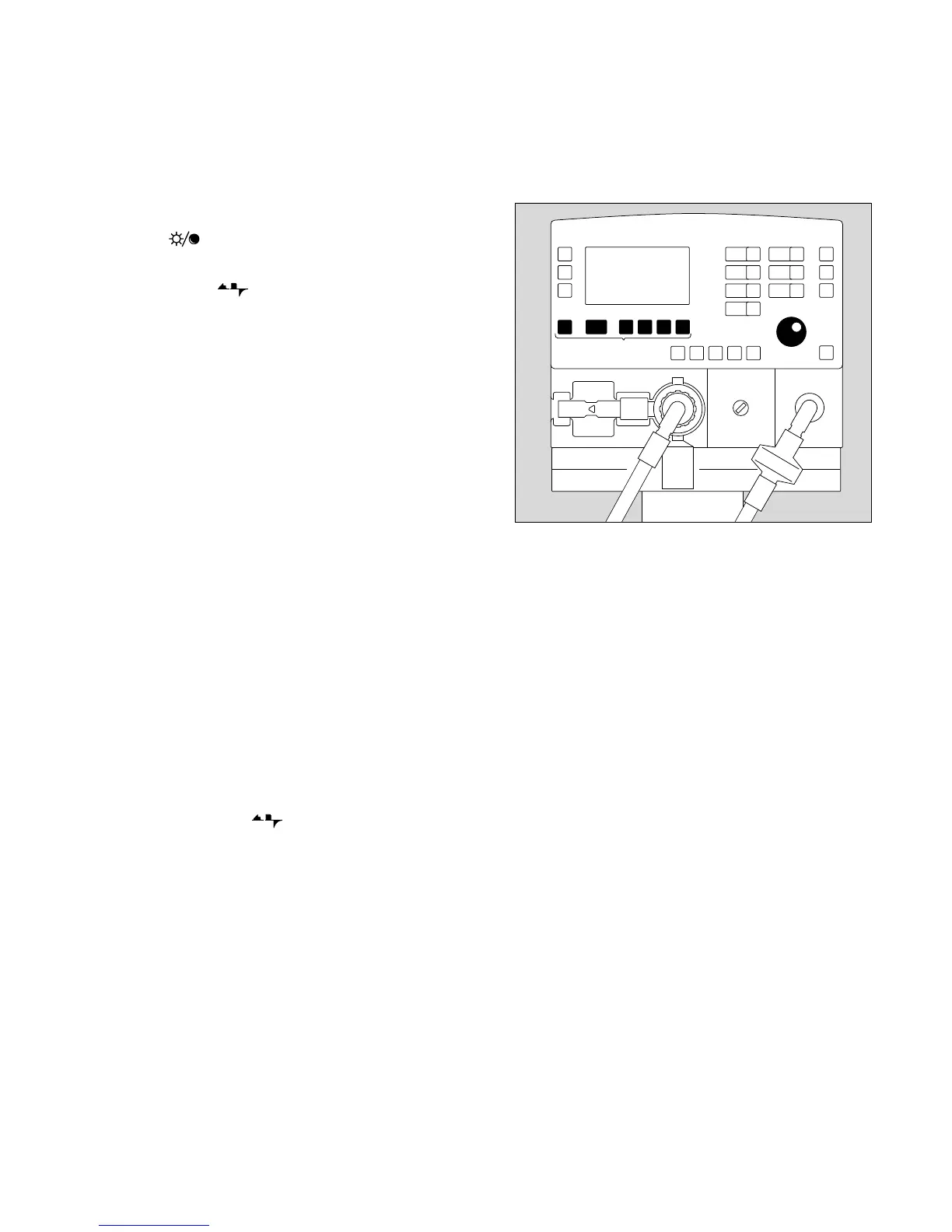

Screen Operating Controls
1 Screen page selection keys:
— » « key for setting the screen and display brightness
to bright or dark
—»Curves « key for selecting the main page to
display the pressure/flow curve
—»Set ∆∆« key for selecting the "Setting" screen page in
order to set other ventilation parameters,
—»Alarm ∆∆« key for selecting the "Alarms" screen pages
in order to set and display the alarm limits,
— »Values ∆∆« key for selecting the "Measured values"
screen page in order to display the measured values,
—»Config. ∆∆« key for selecting the "Configuration" screen
page, for system settings such as alarm volume, screen
brightness.
2 Central "turn and push" rotary knob for selecting and
setting the options displayed on the screen.
To select/set = turn the rotary knob,
to confirm = press the rotary knob.
Changing screen pages
To change to the next page:
● press the same key again.
To change to another page:
● press the corresponding key.
To change to the main page:
● press »Curves « key.
