Apnoea ventilation
For automatic switchover to volume-controlled mandatory
ventilation if the patient stops breathing. Apnoea ventilation
can be provided for all ventilation modes with spontaneous
breathing. If the patient stops breathing, Savina activates an
alarm after the set apnoea alarm time TApnoea and starts
volume-controlled mandatory ventilation with:
— inspiration /expiration ratio I:E = 1:2
and the set ventilation parameters:
— Frequency »fApnoea«
— Tidal volume »VTApnoea«
The patient can breathe spontaneously during apnoea
ventilation. The frequency »fApnoea« remains constant.

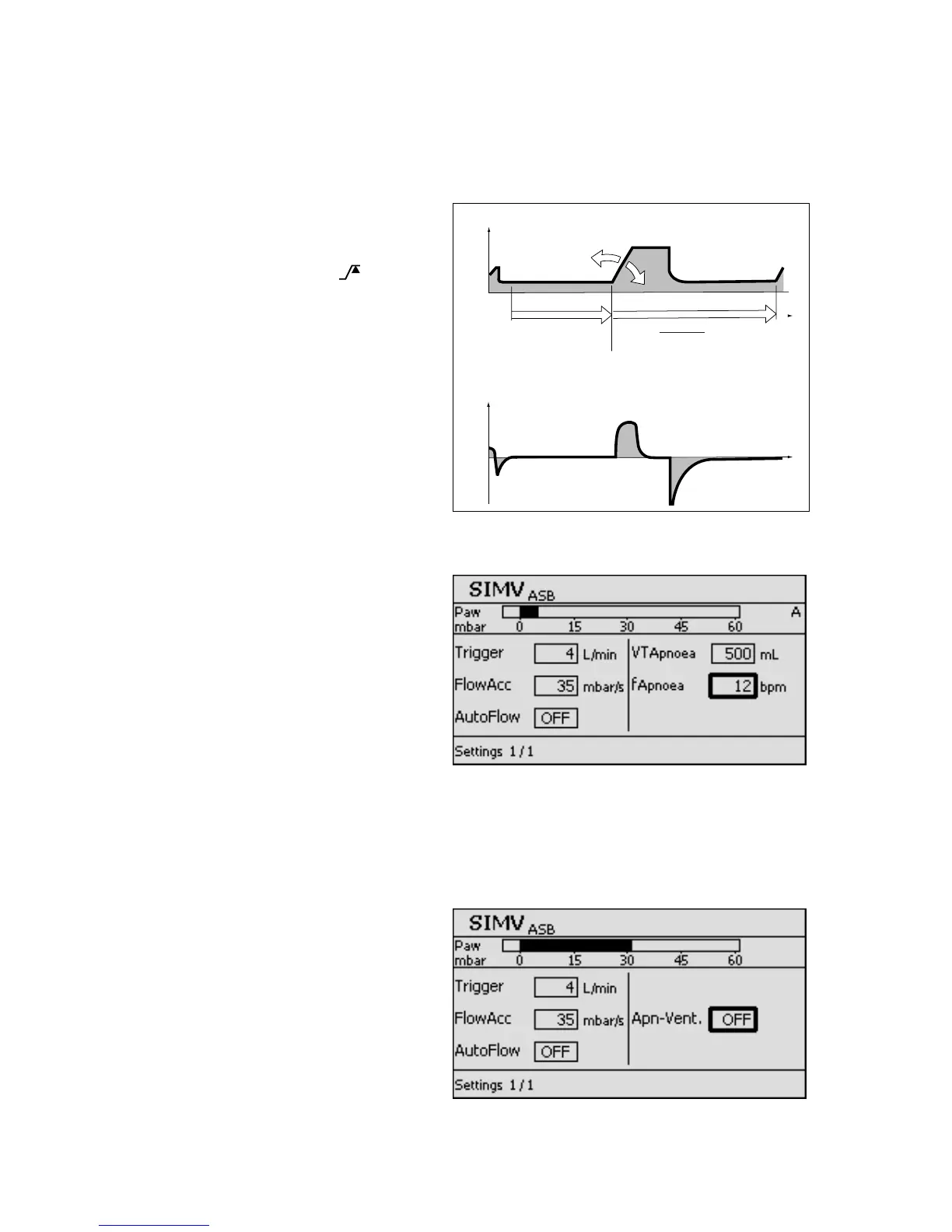

To set apnoea ventilation
● Press »Settings ∆∆« key. Screen page 1/1 appears.
If apnoea ventilation is activated, the »VTApnoea« and »fApnoea«
lines are visible.
In this case A = apnoea ventilation standby appears at the right
on the main screen page.
If apnoea ventilation is deactivated, instead of the »fApnoe« line
the display shows:
»Apn-Vent. OFF«.
To activate apnoea ventilation:
● Select »Apn-Vent. OFF« line = turn rotary knob
Activate = press rotary knob.
● Set a value of at least 2 bpm = turn rotary knob.
The »VTApnoea« and »fApnoea« lines appear.
● To select lines = turn rotary knob,
activate = press rotary knob.
● To set value = turn rotary knob,
confirm = press rotary knob.
To deactivate apnoea ventilation:
● Set a value less than 2 in the »fApnoea« line
= turn rotary knob,
confirm = press rotary knob.
