Operating Concept
10
Operating Concept
Ventilation Controls

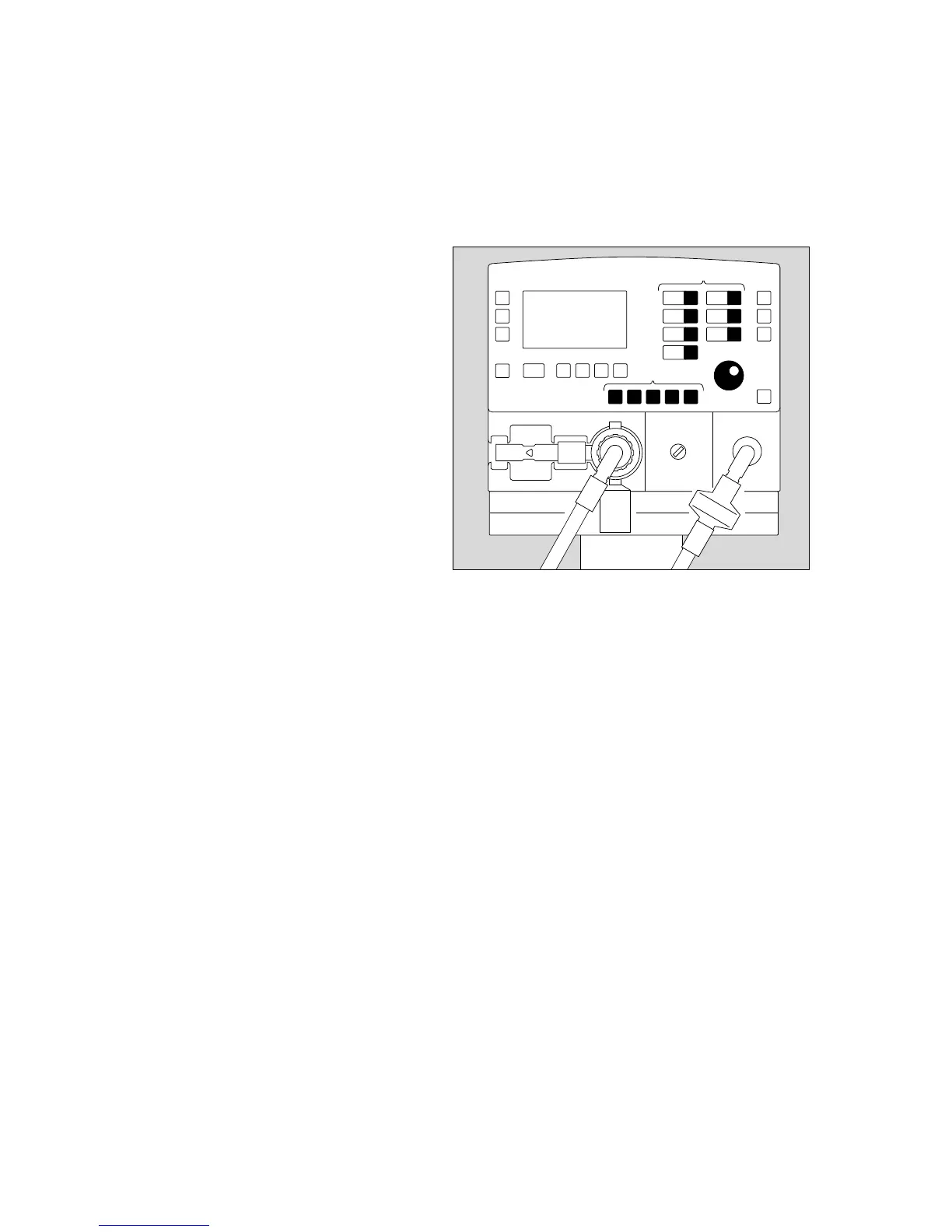

1 Keys for selecting the ventilation modes:
IPPV
SIMV
CPAP/ASB
BIPAP (optional)
2 Keys for selecting/setting ventilation parameters:
– Tidal volume VT
– Inspiration time Tinsp
– Frequency f
– O2-concentration O2
– Inspiratory pressure Pinsp
– Pressure support PASB
– Positive End-Expiratory Pressure PEEP
3 Central "turn and push" rotary knob for setting the
parameters and for selecting screen parameters.
To set = turn the rotary knob
To confirm setting = press the rotary knob.
Setting ventilation parameters
2 To select a ventilation parameter = press the corresponding
parameter key.
The yellow LED in the key lights up.
3 To set the value of the ventilation parameter = turn the rotary
knob. The value is displayed next to the parameter key.
3 To confirm the value = press the rotary knob.
The yellow LED in the key goes out.
The new value of the parameter becomes effective on
confirmation.
Derived parameters are displayed in an information window
on the main screen page during the setting procedure.
Selecting the ventilation mode
1 Hold down the appropriate key for about 3 seconds
or
press the appropriate key briefly and
3 confirm = press the rotary knob
The selected ventilation mode will now be activated.
For detailed instructions on setting the ventilation modes,
see pages 19 onwards.
