Setting Alarm Limits
● Press »Alarms ∆∆« key.

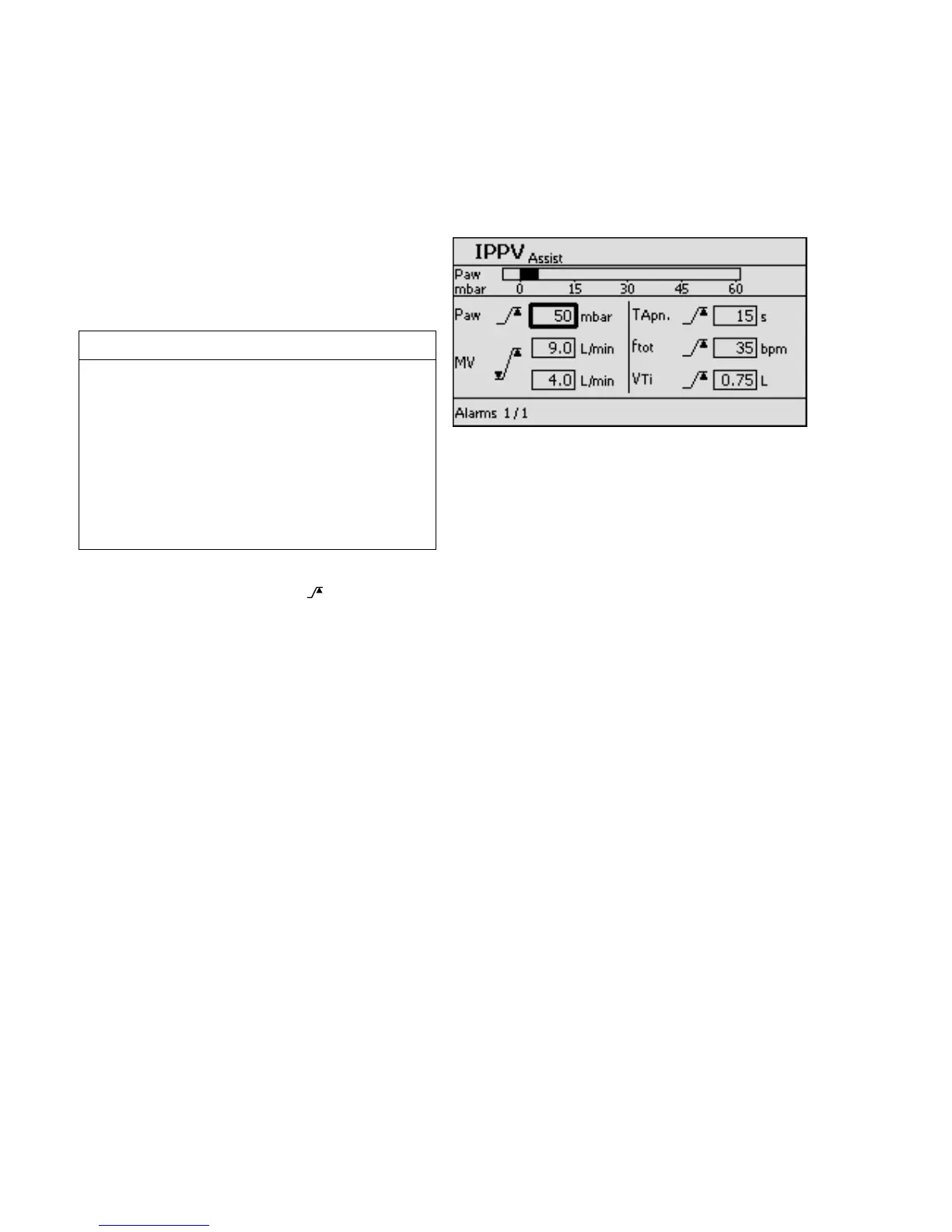

Example display: screen page »Alarms1/1«
This page displays all the alarm limits that can be set.
< = lower alarm limit
> = upper alarm limit
Example; setting the upper alarm limit for Paw.
● On the screen, select the line »Paw « =
turn the rotary knob,
to release for setting = press rotary knob.
● Set the desired value = turn the rotary knob,
confirm = press the rotary knob.
The lower alarm limit does not have to be set for the airway
pressure Paw, because it is automatically coupled to the
PEEP setting.
The alarm limits do not have to be set for the O2 concentration.
These limits are automatically coupled to the O2 concentration
setting:
Lower alarm limit:
Setting –4 vol. % (at settings up to 60 vol. %)
Setting –6 vol. % (at settings from 60 to 100 vol. %)
Upper alarm limit:
Setting +4 vol. % (at settings up to 60 vol. %)
Setting +6 vol. % (at settings from 60 to 100 vol. %)
A specific screen page »Alarms 2/2« appears in the optional
mode »Mask/NIV«. See "NIV – Non-invasive ventilation",
page 34.
Alarm Setting Range
Paw
>
10 to 100 mbar
MV
>
2 to 41 L/min
MV
<
0.5 to 40 L/min
TApn.
>
15 to 60 sec
ftot
>
10 to 120 bpm
VTi
>
0.06 to 4 L
