Configuring the measured values line

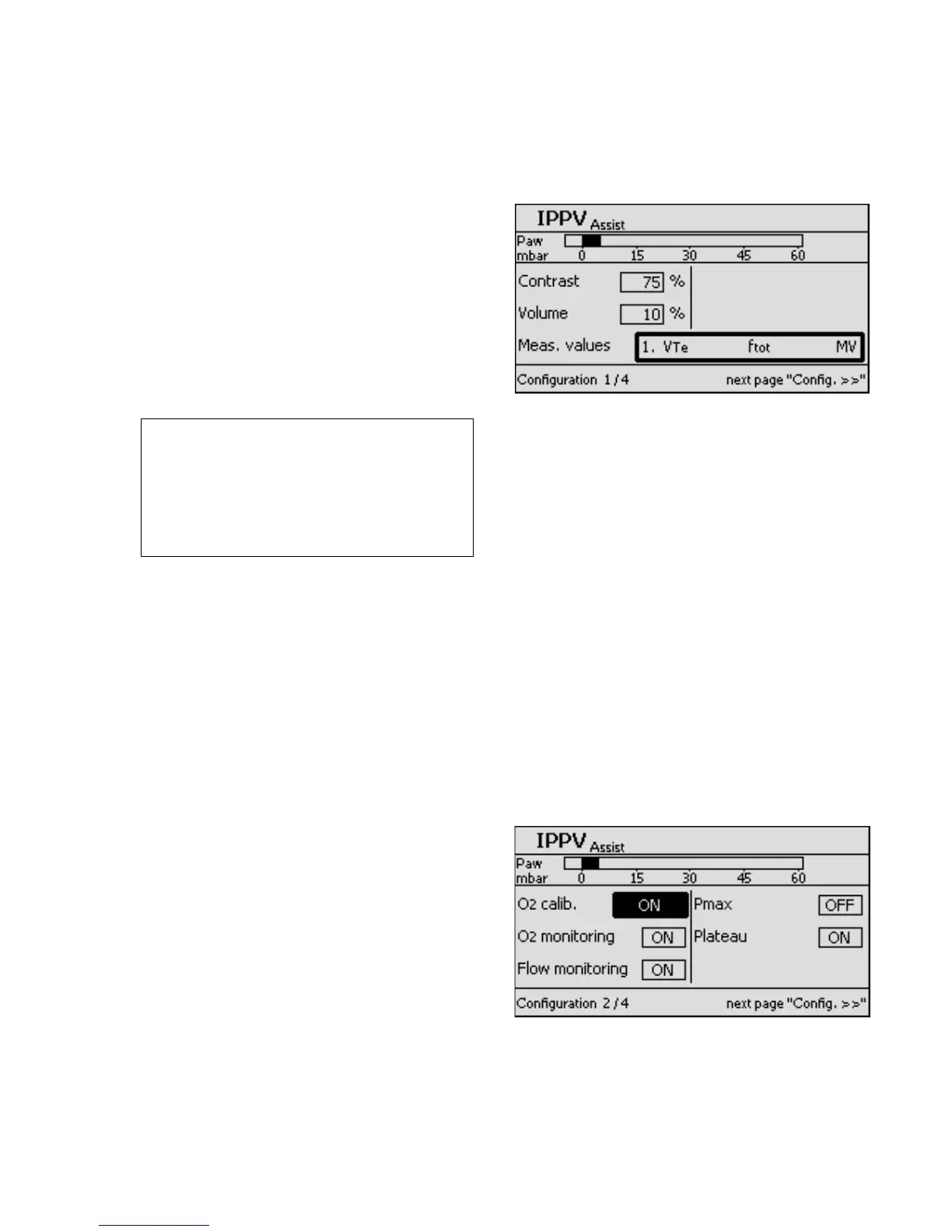

Select one of 6 possible combinations of measured values:
● Press »Config. ∆∆« key repeatedly until
»Configuration 1/4« appears.
● Select »Measured values« line = turn the rotary knob,
activate = press the rotary knob.
● To set the measured values combination =
turn the rotary knob,
confirm = press the rotary knob.
The following combinations of measured values can
be selected:
Manual calibration for O2 sensor 2
— once per month,
— if the following alarms occur:
!!! FiO2 high
or
!!! FiO2 low
or
!!! O2 measurement inop.
Manual calibration can be carried out in the respective
ventilation mode:
● Press »Config. ∆∆« key repeatedly until
»Configuration 2/4« appears.
● Select »O2 calib.« line = turn rotary knob,
to release for setting = press rotary knob.
● To start O2 calibration = turn rotary knob and select
»Start«,
to confirm = press rotary knob.
Message in the information line on screen:
Disconnect patient
● Disconnect patient within the next 30 seconds.
● If necessary continue ventilating the patient using a
separate ventilating appliance.
1. VTe ftot MV
2. FiO2 VTe MV
3. Ppeak VTe MV
4. Pmean FiO2 MV
5. Pmean VTe MV
6. Ppeak Pmean VTe
