"Configuration" screen page
For setting equipment parameters:
— Screen contrast
— Alarm volume
— Displayed measured values
— Manual calibration for the O2 sensor 2
— FiO2 and Flow Monitoring ON/OFF
— Pmax ON/OFF
— Plateau ON/OFF
— Language, date and time
— MEDIBUS protocol

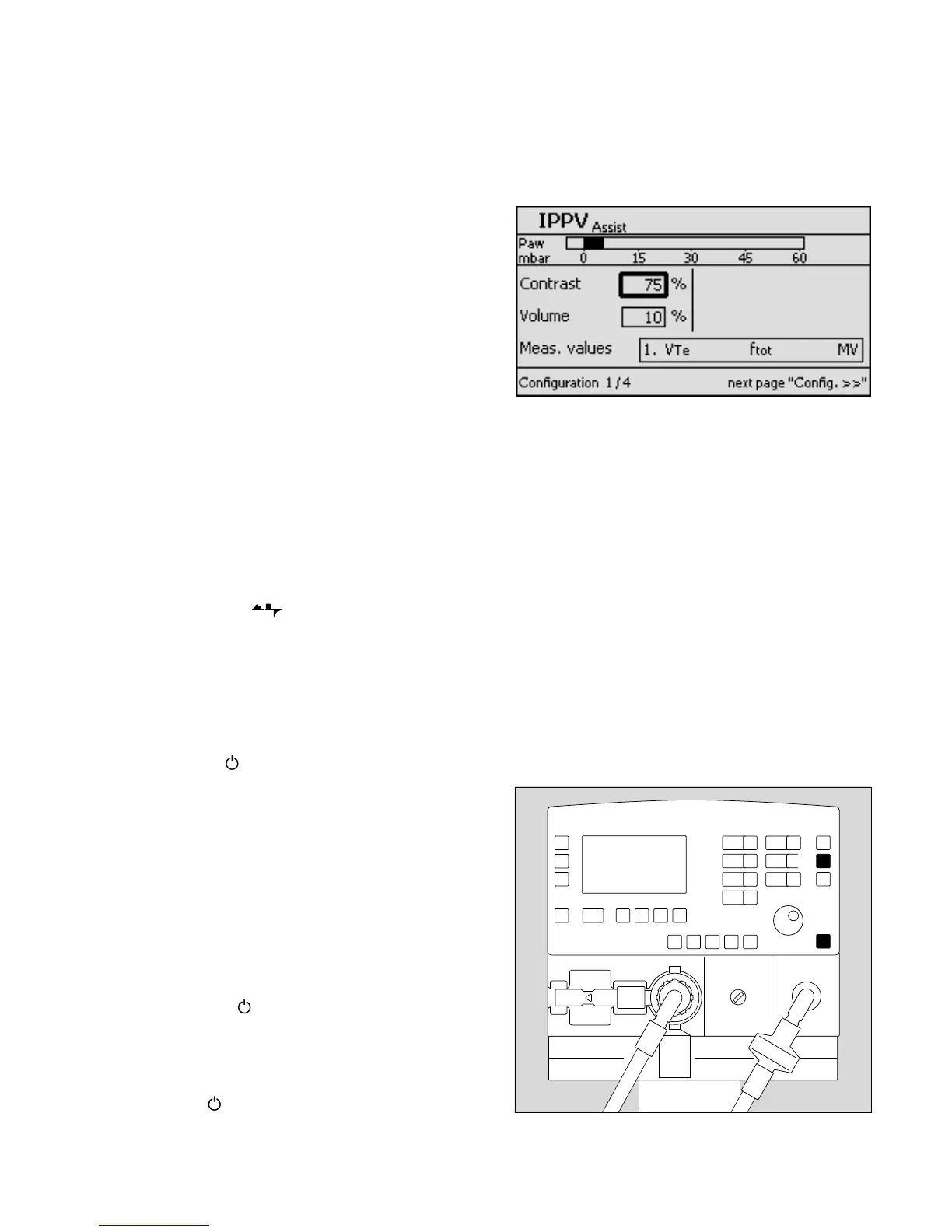

Configuration 1/4:
Page 1 of 4 available pages of the Configuration menu.
Changing screen pages
To change to the next page:
● press the same key again.
To change to another page:
● press the corresponding key for that page.
To change to the main page for pressure curves:
● press »Curves « key.
Detailed instructions for use, see "Configuration", pages 47
onwards.
»Standby« key
1 Positioned at bottom right of the front panel.
— To keep the apparatus operational,
e.g. after pre-setting.
or
— to switch on ventilation.
To switch to standby:
1 Hold down » Standby« key for at least 3 seconds
and
2 to confirm = press »Alarm Reset« key.
To switch on ventilation:
1 Press » Standby« key briefly.
