Technical information
DAC basic/classic
24
Control voltage for external actuators:
Voltage when idle [V] 25 Gs
Voltage when under load [V] 25 Gs when I = 2.9A
Power [W] 96 (225, short-term)
Load current [A] 3
Max. load current [A] 9, short-term
Anzahl Ein- und Ausgänge DAC
basic
Digital-inputs [24V] 7
Analog-inputs [3,3V] 1
LED-outputs [24V/max.30mA] 3
Digital-outputs [24V/max. 0,5A] 4
Digital-outputs [24V/max. 2A] 1
PWM-outputs [24V/max. 2A] 4
Anzahl Ein- und Ausgänge DAC
classic
Digital-inputs [24V] 16
Analog-inputs [3,3V] 2
LED-outputs [24V/max.30mA] 6
Digital-outputs [24V/max. 0,5A] 8
Digital-outputs [24V/max. 2A] 1
PWM-outputs [24V/max. 2A] 5
Warning: The total load currents of all actuators switched on at the same time
(magnets, magnet valves) must not exceed 3 A permanently.

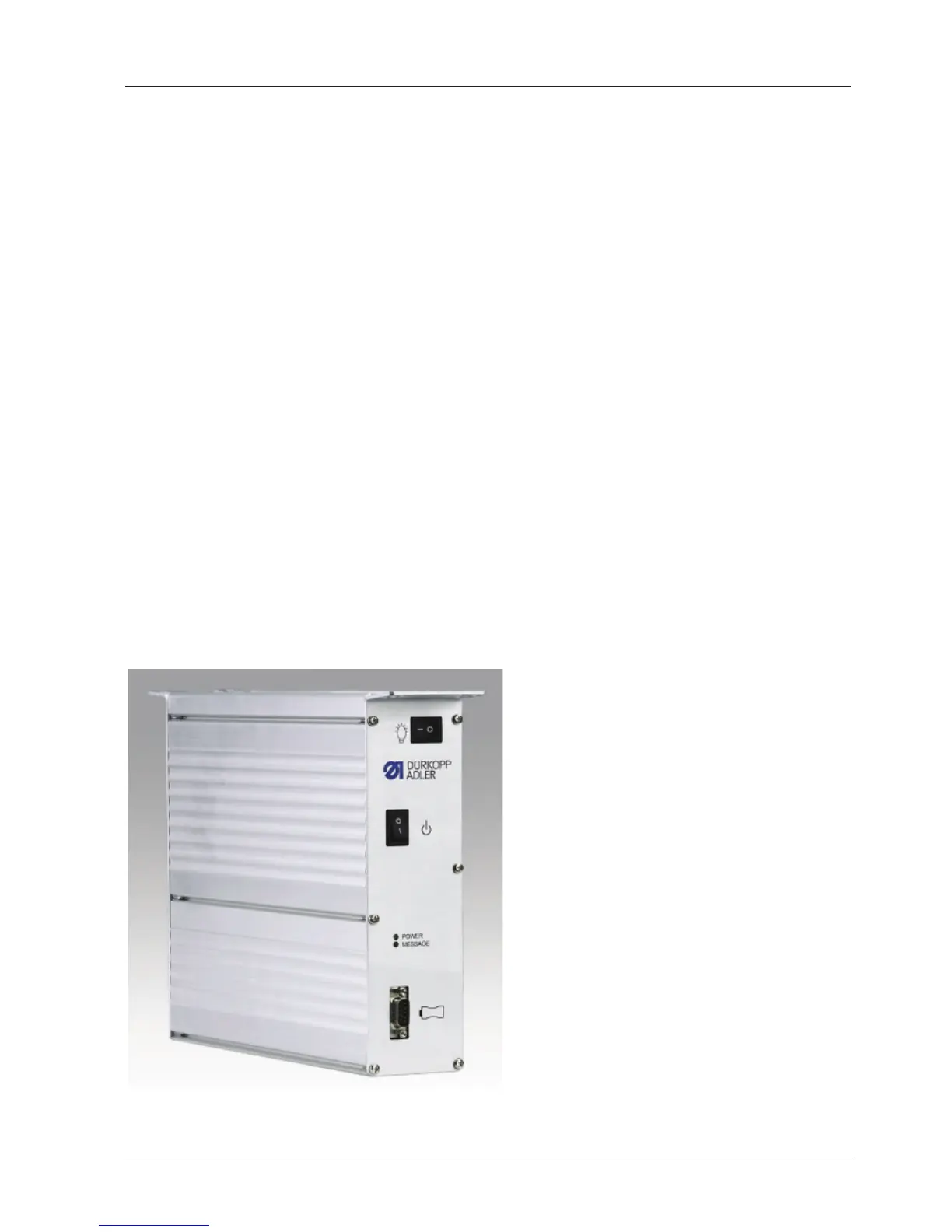

Control unit dimensions
