Winder
Service Instructions 667 - 00.0 - 04/2016 63
To set the winder run:
1. Loosen the threaded pin (8).
2. Set the switch cam (9) such that it is just contacting the leaf spring (10)
when the block (5) has engaged in the locking disk.
3. Set the switch cam (9) such that the winder lever (3) has no axial play.
4. Tighten the threaded pin (8).
Installing the winder

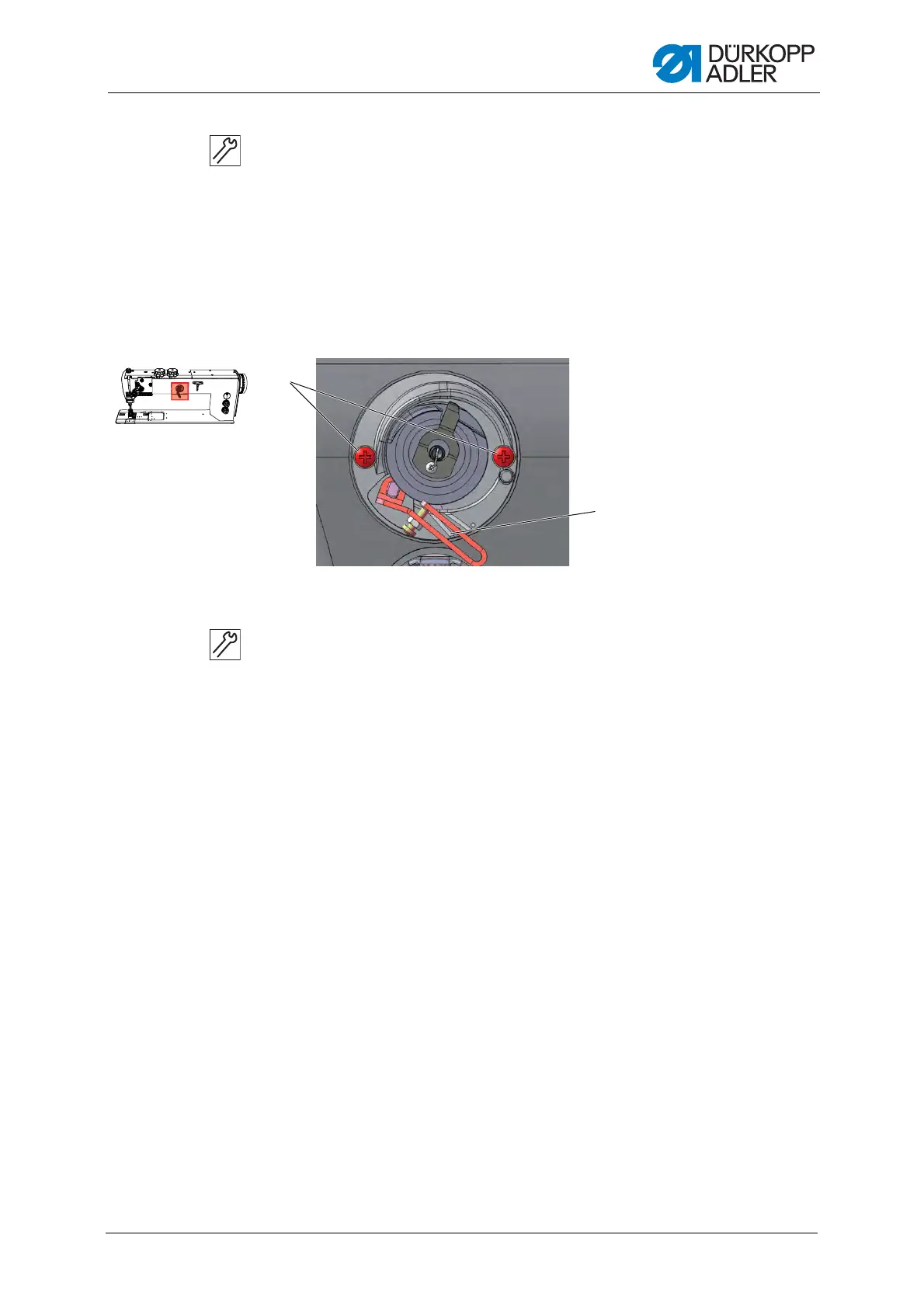

Fig. 45: Installing the winder
To install the winder:
1. Place the winder on the machine arm.
2. Tighten the screws (1).
1
.
(1) - Screws (15) - Marking for XXL hook
