E15h SPRAYER- Sprayer Setup Operation
• Press MENU
• Press ENTER to select SETUP
• Press ENTER to select SPRAYER SETUP
• Press LINE 4 until the focus window is on SPEED CAL.
The focus window
displays the current SPEED CAL factor
• Press ENTER.
Screen will change to SPEED CAL SETUP screen. Go to Section 3.8.2
for Automatic Speed Calibration; or Section 3.8.3 for Manual Speed Calibration
Entry
When the STANDARD is selected for the SPEED SOURCE:
STANDARD is the default, which means the speed source is taken from the wheel
sensor on the Sprayer Loom.
This wheel factor value is the distance travelled by the sprayer, per pulse from
the wheel (speed)sensor. The value will vary considerably between different
sprayers, with typical values between .25 and 1 meter per pulse. Values more
than 5.0 meters will not give good spray rate control and must be avoided.
When the RADAR is selected for the SPEED SOURCE:
If the RADAR is selected, then the speed source is taken from the 3 pin weather
pak connector on the loom going into the back of the E15 console;
The RADAR SOURCE is used if the operator wants to use the tractor radar.
The wheel factor value will vary between different tractor radar models, a typical
value will be between 0.1 and 0.0005.

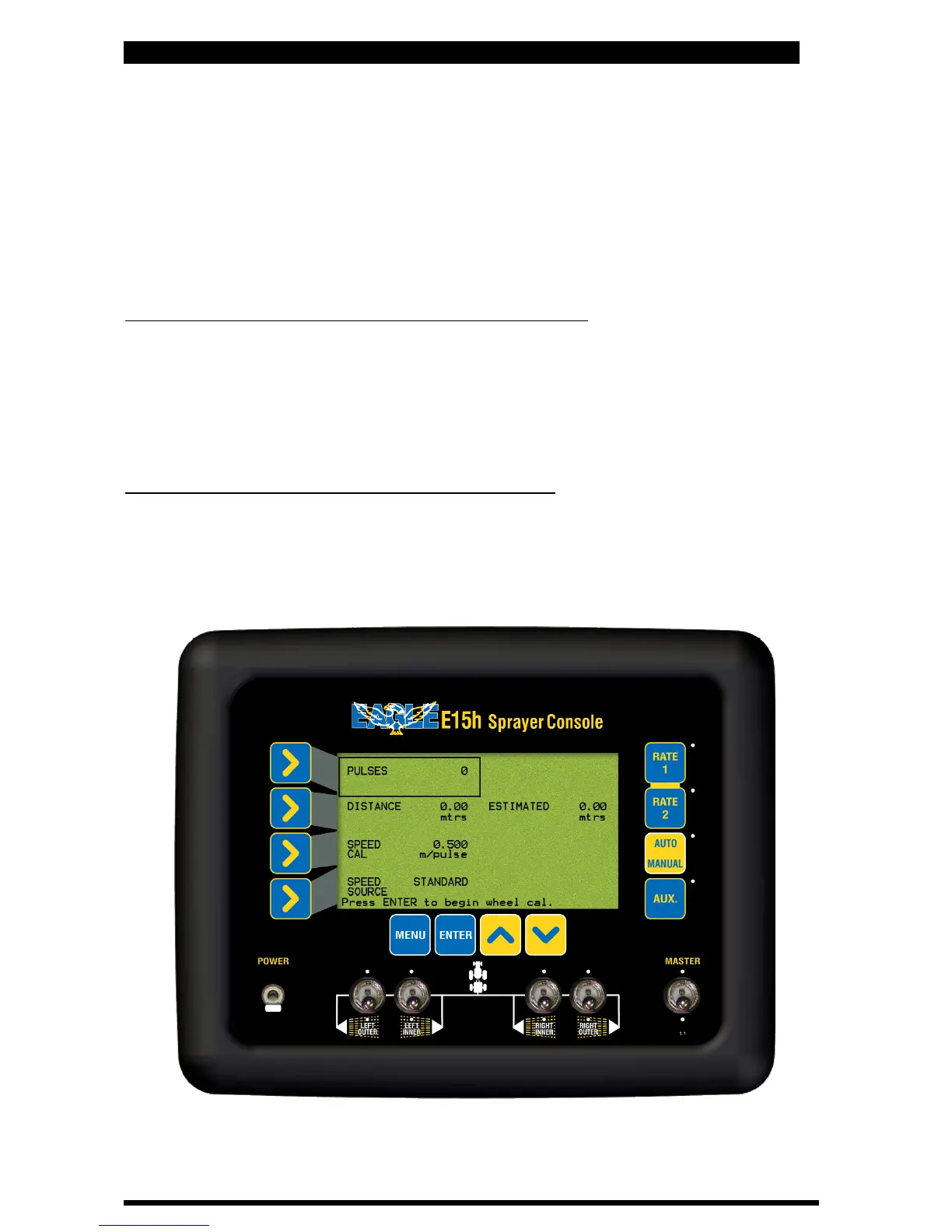

Speed Cal Screen
3.8 SET THE WHEEL CALIBRATION FACTOR
24
V 1.0 11/05
