E15h SPRAYER- Diagnostics Mode
9.4 SENSORS TEST
• Select this test to check the operation of the sensor circuitry
• The current period (time between pulse, measured in mS) for each sensor
will be displayed on the screen.
• During operation the period between the pulses should be constant, if
this value isn’t constant, then this suggests there is a magnet missing or
the sensor distance isn’t set properly.
• The pulse count keeps accumulating as each magnet goes past the
sensor.
• The battery volts is displayed. This shows the actual voltage being received
by the console.
• The actual pressure reading is displayed from the electronic pressure
sensor
• Press MENU to exit

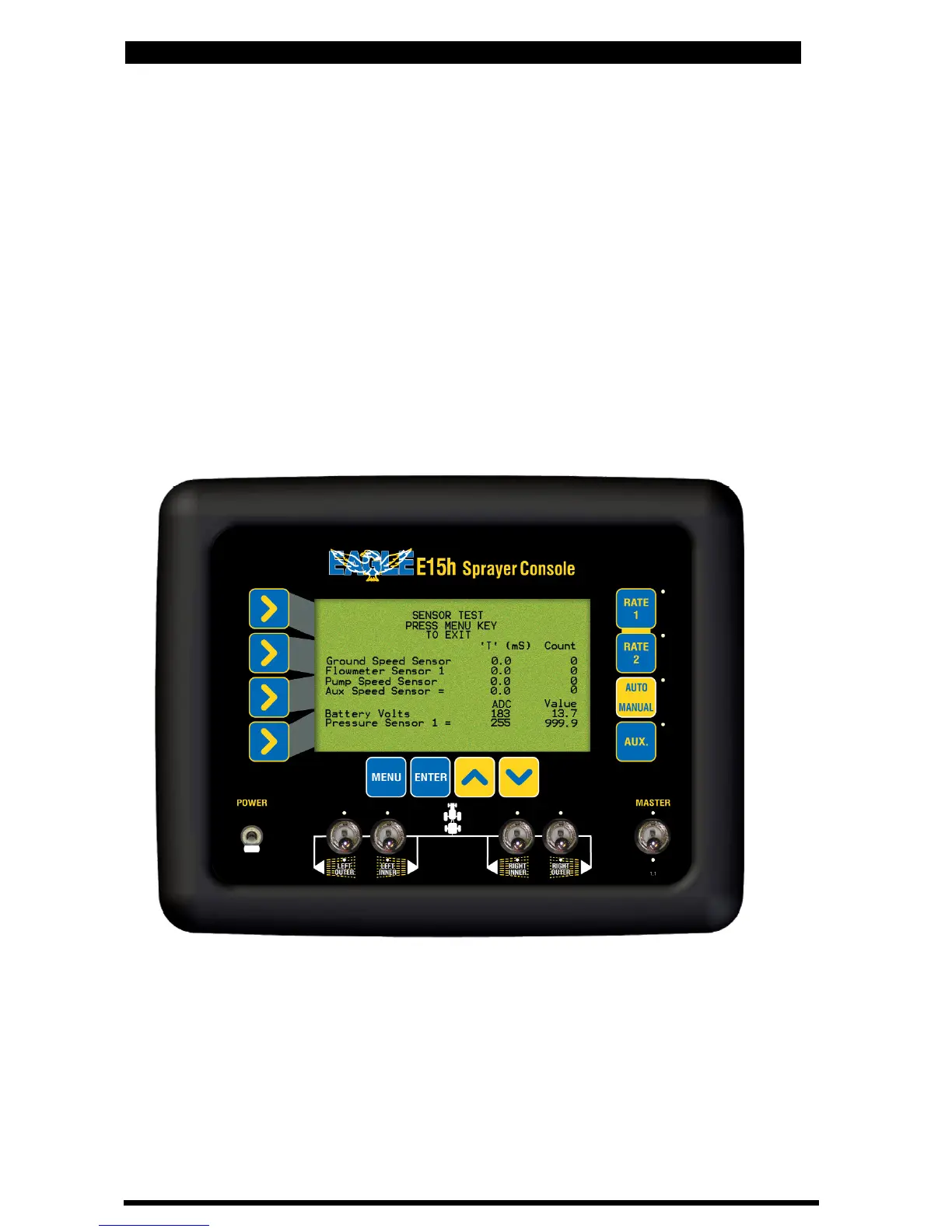

Sensors Diagnostics Screen
