E15h SPRAYER- Diagnostics Mode
9.5 RELAYS TEST
• Select this to check the operation of the relay circuitry
• This test, cycles through each relay within the console; and each of
the three states of each relay
• During the RELAY TEST regardless of the position of the Console
switches; section valves, foam marker solenoids, end jet nozzle solenoids
,flush solenoids etc are switched ON and OFF in sequence.
• This test isolates whether it is a relay problem in the console or an actual
switch problem in the console.
• Press MENU to exit

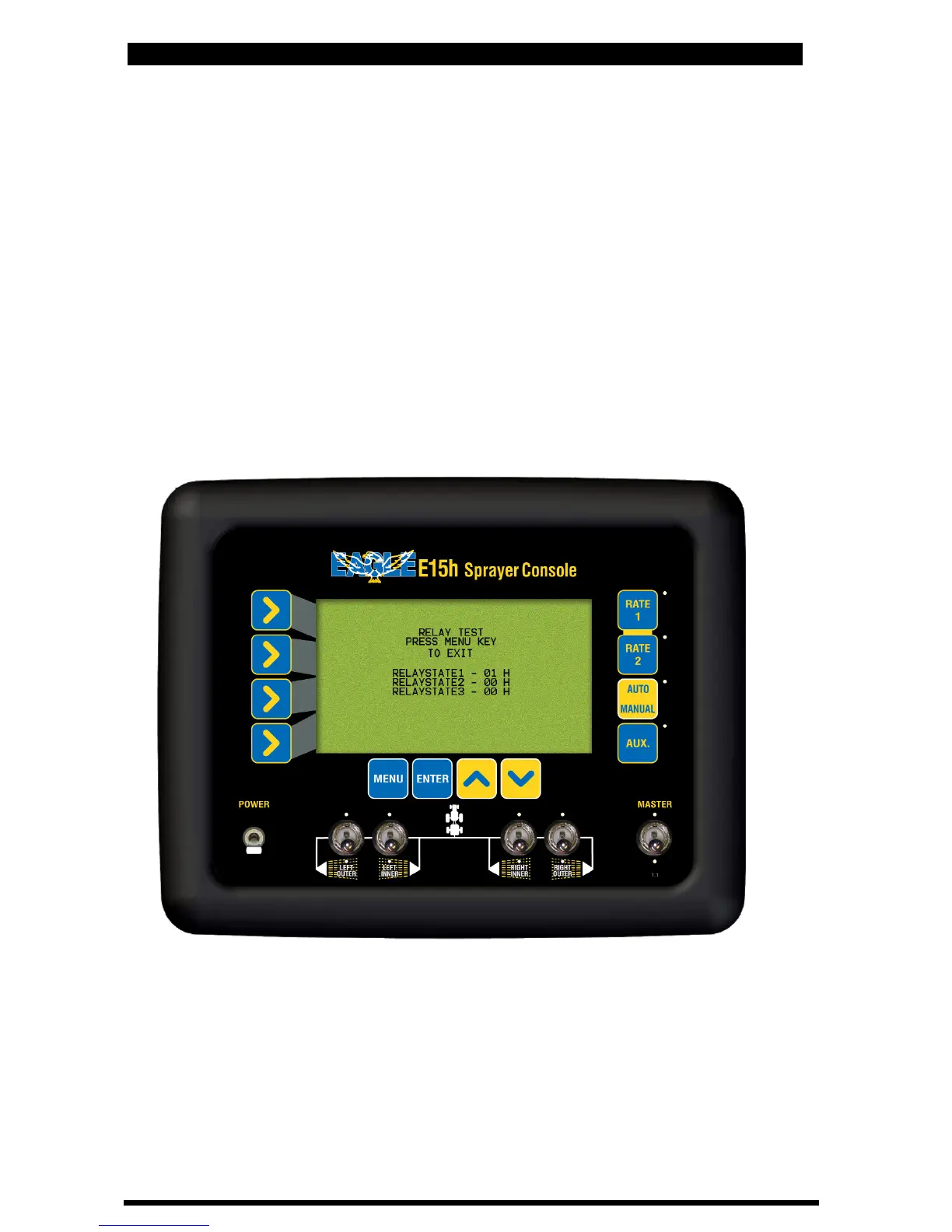

Relays Diagnostics Screen
91
V 1.0 11/05
