E15h SPRAYER- Diagnostics Mode
9.1 LED TEST
• Select this to check the operation of the Light Emitting Device (LED)’s on
the front panel. Diagram below shows the positions of the LED,s
• If operating correctly the LED’s will cycle consecutively around the front
panel, starting from the:
1)- Right hand side of console from top to bottom,
2)- The LED’s above the Section switches from left to right.
3)- The LED’s below the Section switches from left to right.
, 4)- then once, one cycle has been completed, all the LED’s will flash
together.
• Press MENU to exit

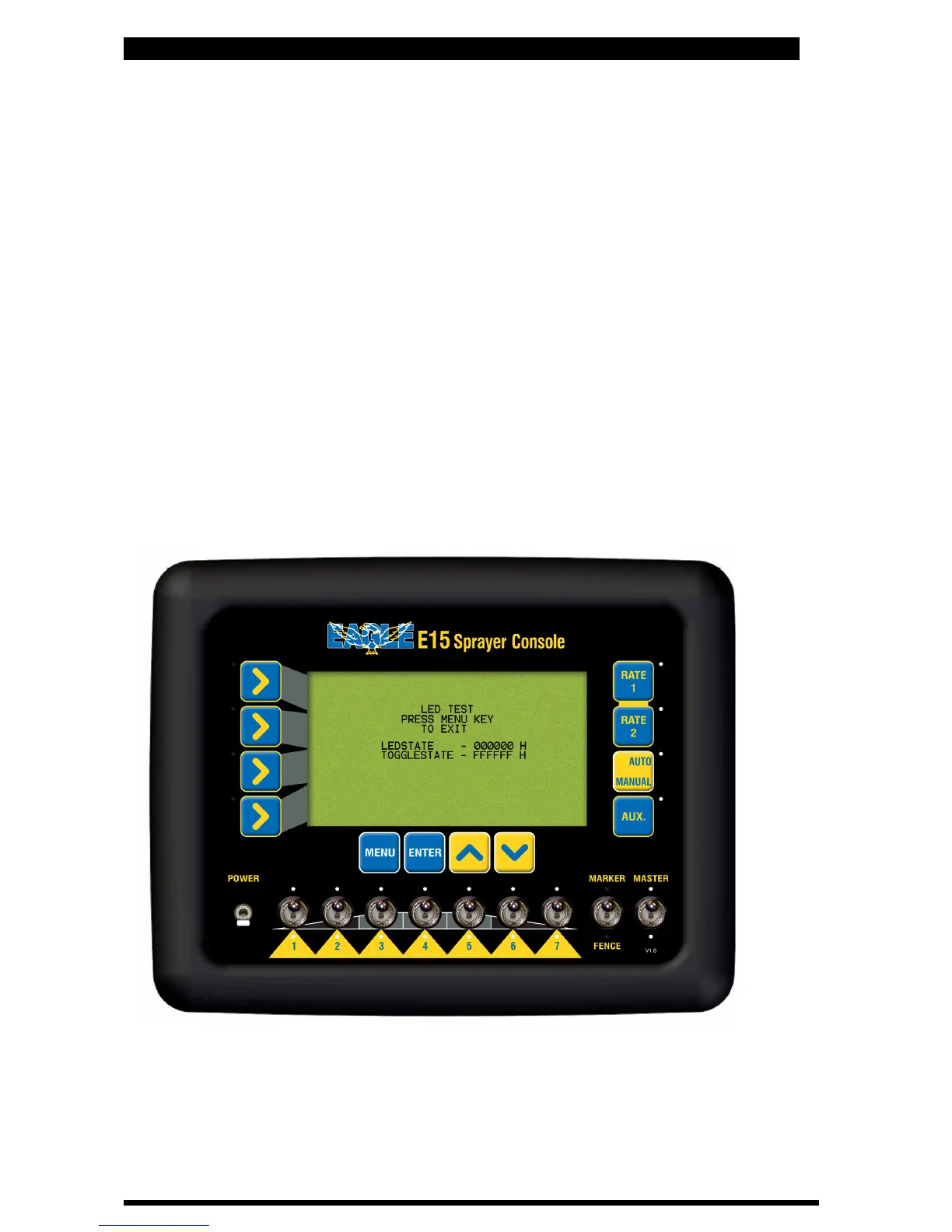

LED Diagnostics Screen
86
