E15h SPRAYER- Specifications

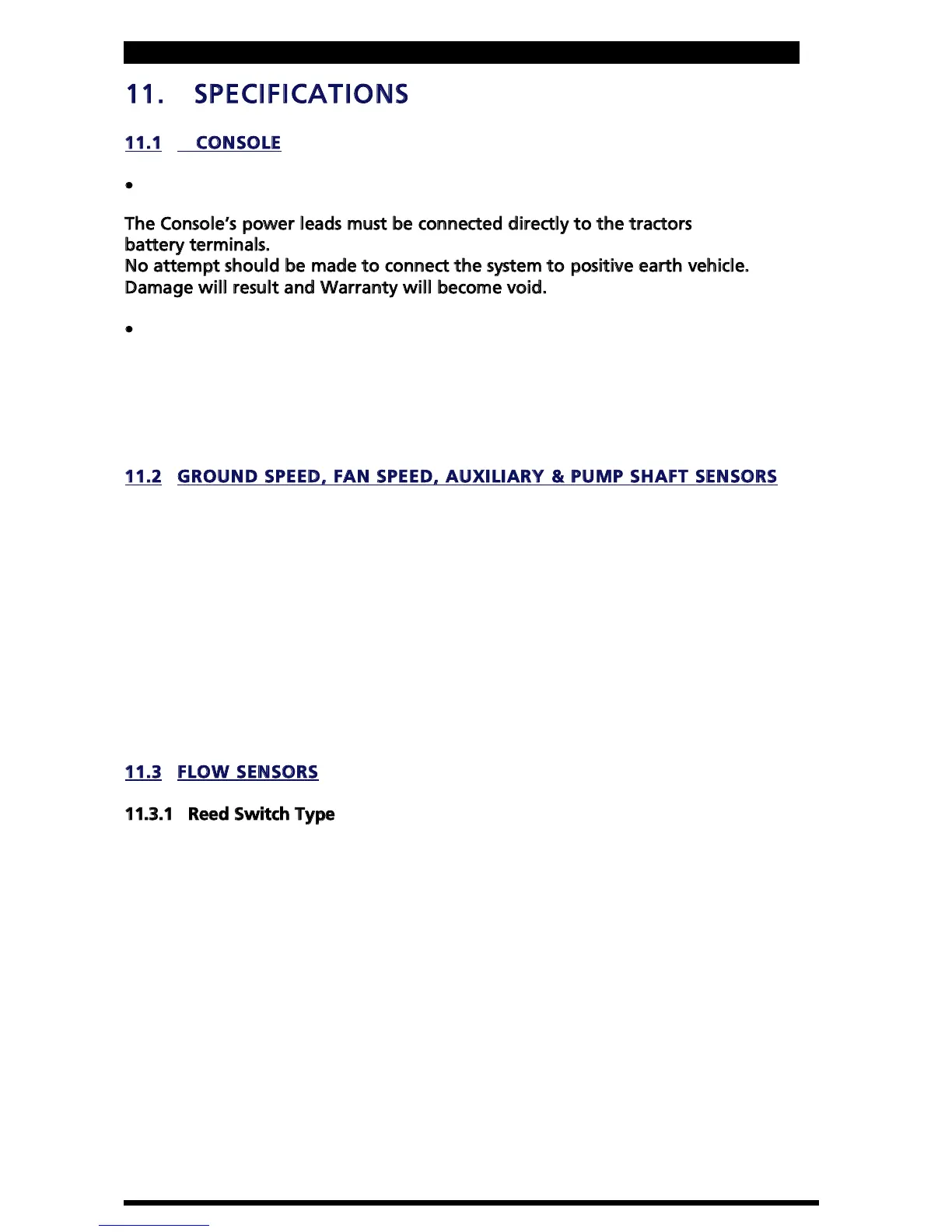

11. SPECIFICATIONS
11.1
CONSOLE
•
Supply Voltage 12.5 - 16 volts Negative earth system.
The Console’s power leads must be connected directly to the tractors
battery terminals.
No attempt should be made to connect the system to positive earth vehicle.
Damage will result and Warranty will become void.
•
Supply Current Console 0.9 amps approxImately.
Maximum Solenoid supply current 2 Amps each
Maximum Electric Regulator Valve Motor Current: approx. 250milli-amps
11.2 GROUND SPEED, FAN SPEED, AUXILIARY & PUMP SHAFT SENSORS
Ground Speed Sensor,: Hall effect type sensors
Fan Speed Sensor and 3 pin weather-pak plug (Pin A, B and C)
Auxiliary Shaft Sensors:
Sensor to Magnet Distance 2-3 millimeters (mm)
Supply Voltage Supply 12 volts from MDECU
Signal Voltage: 4 -5- volts sensor inactive
< 1 volt sensor activated by magnet
11.3
FLOW SENSORS
11.3.1 Reed Switch Type
• With Switch OFF: Open Circuit
• Switch ON Resistance: 1800 Ohms
• 2 Wire Only
• Maximum contact Current: 50 milli amps
• Accuracy: 2% in range 10% to 200% of nominal flow
• Bore: 15mm
• Nominal Flow Rate: 80l/min
• Calibration: 45.7 pulse/l
98
V 1.0 11/05
