9 Appendix
9.5 accessories
222 DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com

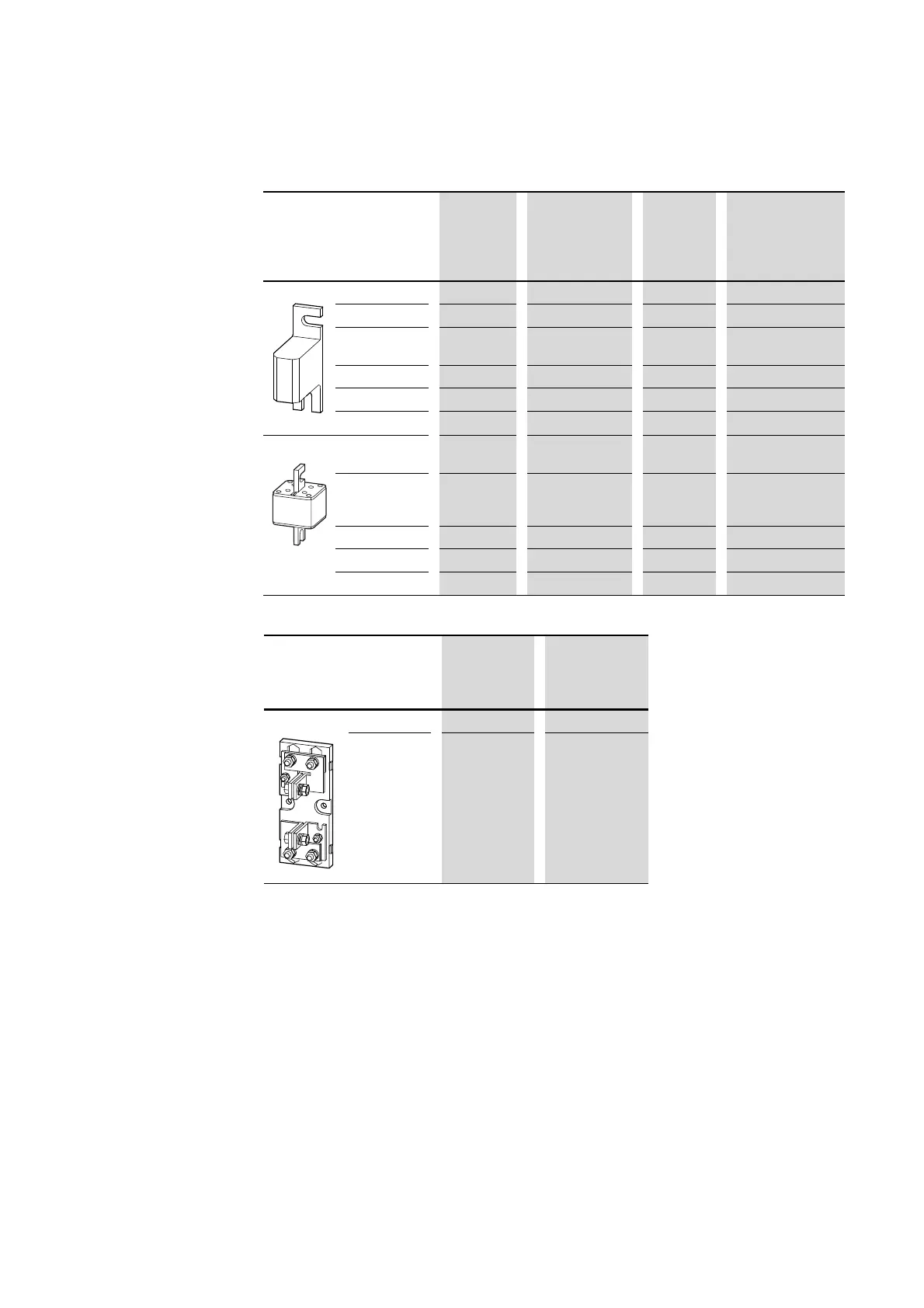

Table 48: Superfast semiconductor fuses
Table 49: Fuse bases for superfast semiconductor fuses
Part no.
Rated
operational
current
max. heat
dissipation P
V
Size/
fixing
centres
Can be used
for soft starters
A W mm Part no.
170M1359 16 5.5 000 DS7-34…SX004N0-…
170M1361
25 9 000 DS7-34…SX007N0-…
170M1362
32 10 000 DS7-34…SX009N0-…
DS7-34…SX012N0-…
170M1364
50 15 000 DS7-34…SX016N0-…
170M1365
63 16 000 DS7-34…SX024N0-…
170M1366
80 19 000 DS7-34…SX032N0-…
170M3013 125 26 S1 DS7-34…SX041N0-…
DS7-34…SX055N0-…
170M4008
200 45 S1 DS7-34…SX070N0-…
DS7-34…SX081N0-…
DS7-34…SX100N0-…
170M4010
315 58 S1 DS7-34…SX135N0-…
170M5008
400 65 S2 DS7-34…SX160N0-…
170M6008
500 95 S3 DS7-34…SX200N0-…
Part no. Dimensions/
(W x H x D)
for size
mm
170H1007 145 x 43 x 50 000
170H3004
205 x 88 x 80 S1, S2, S3
￫
If possible, install semiconductor fuses in the immediate vicinity
of the soft starter (short connection cables).
￫
Semiconductor fuses must be installed on all three phases
(L1, L2, L3).
￫
Each fuse-link requires a fuse base.
