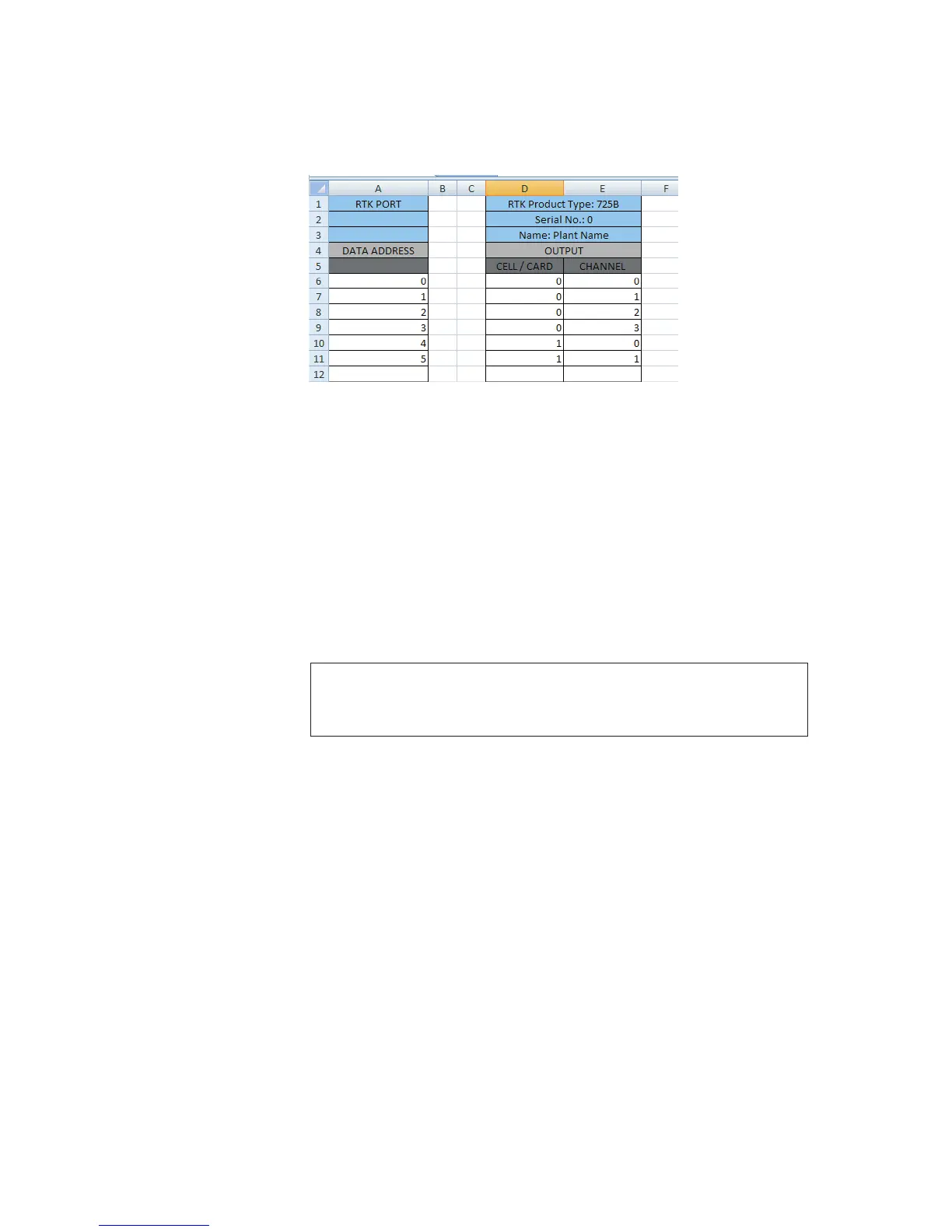

Slave Mapping
The slave spreadsheet allow the Port register to be mapped to the required channel. This
work in the same way as the Master but columns A and B show the PRTK 725B port register
addresses.
Mapping Limits
On the RTK 725B the number of mapped points is limited to 656, this only includes mapped
points, one to one points are not included in the mapping points.
Each master can have up to 16 request blocks.
If more than one address is mapped to a channel they can only be OR’d together. For the
reflash this must be enabled on the individual channel in the sequence tab under advanced
settings. The reflash pulse will be approx 500mS.
NOTE
If the configuration file is saved this doesn’t include any port mapping data, this must
be saved separately using the export mapping.
