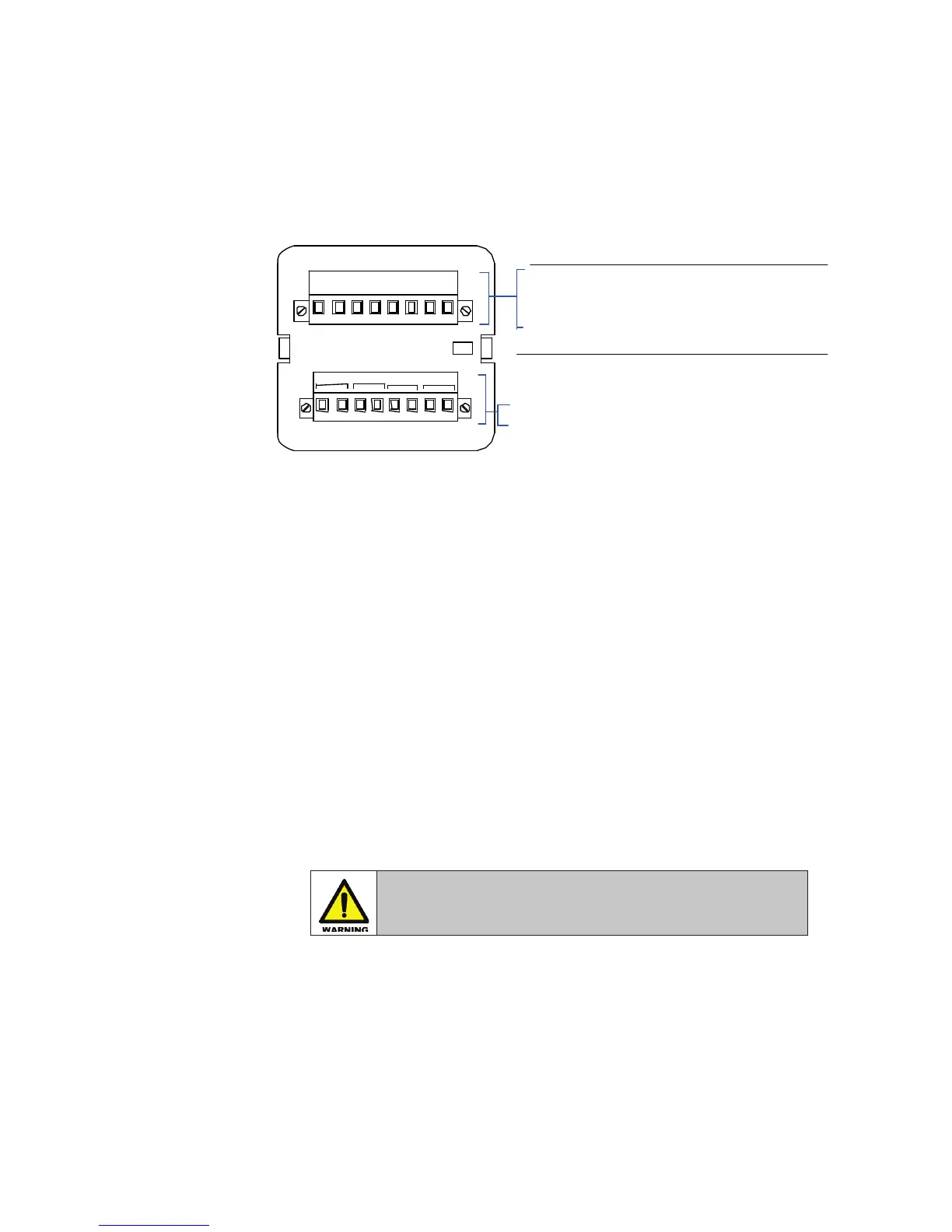

2.17 WRP Cell Detail (Watchdog Relay Card - Remote Pushbutton)
Cell type WRP is used to provide:-
Four channel relay card which provide
• Four Common Relays which can be programmed for use as horn, common alarm or
watchdog relays.
• Each of the output contacts can be set to N/C or N/O using a 3 way header and 2 way
shorting bar located on the card.
• The non alarm coil state of each relays can be programmed to be either EN or DE-EN
Remote Pushbutton Card that provides:
• Six external pushbutton inputs for use with optional remote mounting pushbuttons
as required.
• Each of the external pushbutton inputs can be programmed to operate as either:- Lamp
Test, Silence, Acknowledge, Reset, 1st Reset or System Test or Sleep Mode as
required. The common return for all remote pushbuttons is +V (+24VDC)
WARNING !
Remote pushbuttons must be installed in the same enclosure as the
RTK 725B/C annunciator.
