Eaton RTK 725B range - Standard Comms Version

INM 725B Rev 21
81
13.2 Standard Comms Version
RTK 725B annunciators supplied with standard comms are provided with 2 ports:
• Port-2 provides an isolated RS485 Port
• Port-4 provides a standard 8P8C (RJ45) Ethernet connection
Serial Ports
RTK 725B annunciators supplied with standard comms are provided with the following
communications protocols via Port-1 and Port-2
• RTK AMS
• Modbus RTU
• Modbus ASCII
• Wharton Time Sync
Communications Addresses
Each port within the comms card is provided with a software configurable node address.
Port 1
Connection Details

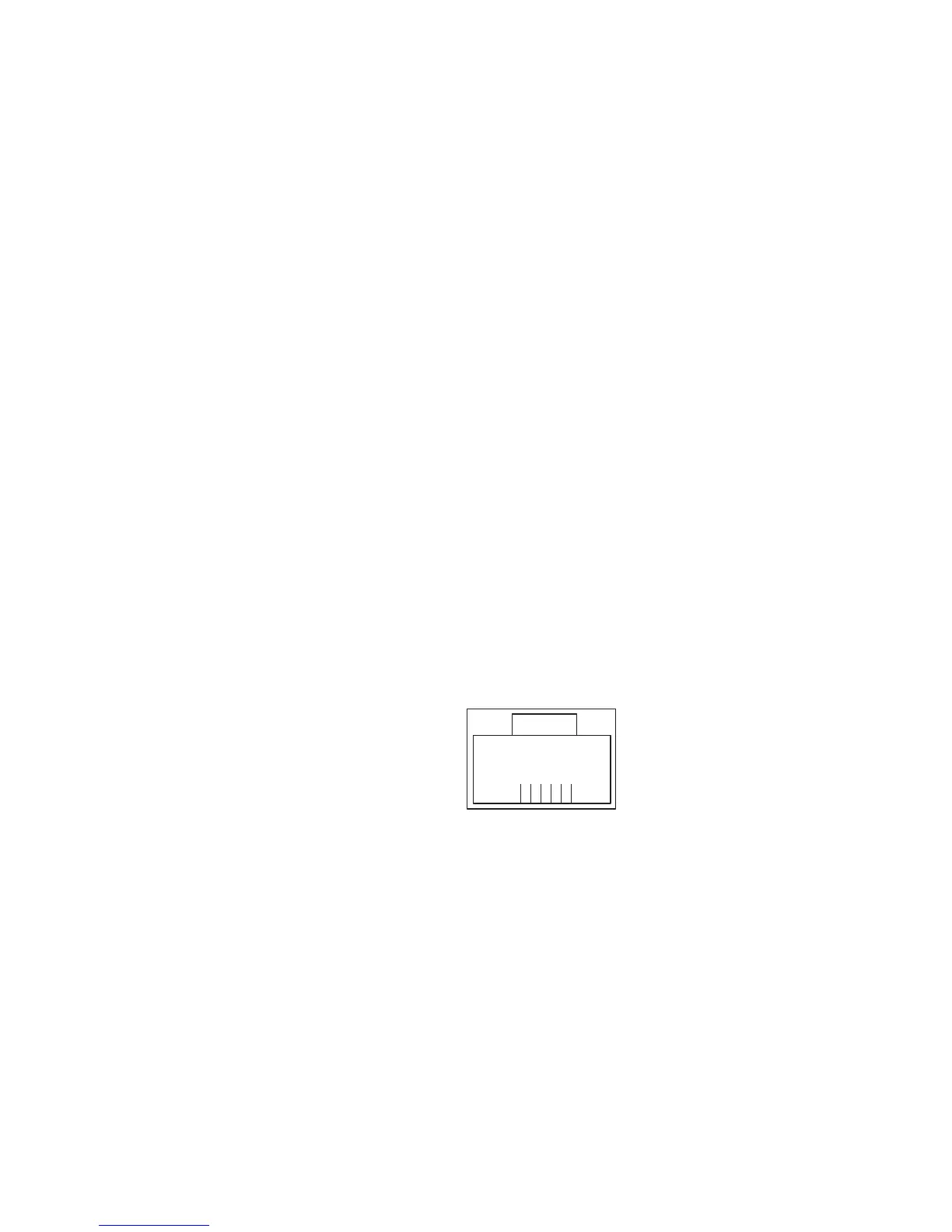

An Industry standard RJ11 connector is provided on the XS/FC485 communication card which
provides the following connections:-
1. TXa
2. No Connection
3. OV
4. RXb
5. TXb
6. RXa
PG4
123
45
6
