2.7 AP6 Cell Detail (Alarm Card - Remote Pushbutton)
Cell type AP6 is used to provide:-
• Four digital inputs for use with volt-free or powered contacts
• Six external pushbutton inputs for use with optional remote mounting pushbuttons
as required.
• Each of the external pushbutton inputs can be programmed to operate as either:- Lamp
Test, Silence, Acknowledge, Reset, 1st Reset or System Test or Sleep Mode as
required. The common return for all remote pushbuttons is +V (+24VDC)

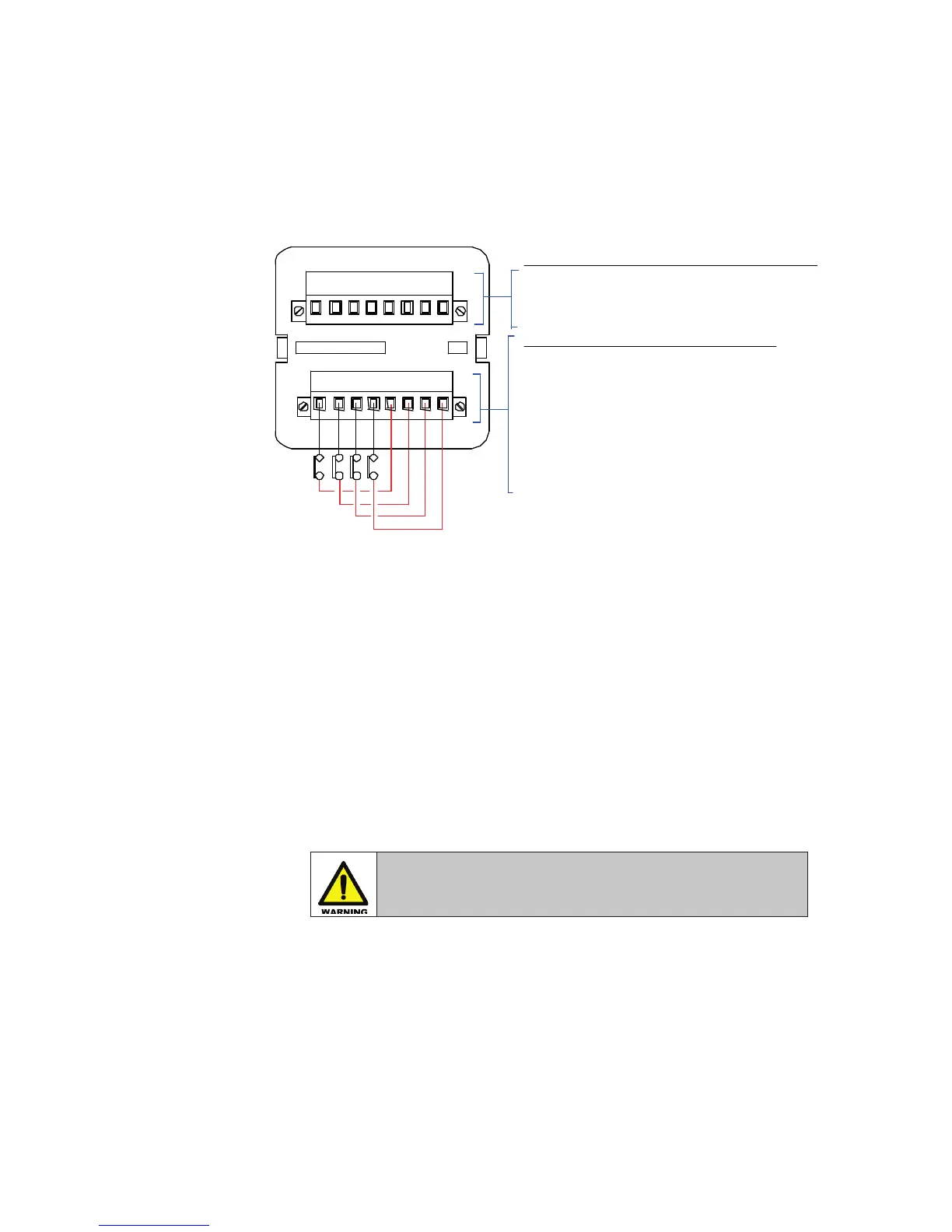

• The drawing above indicates the standard card types available for cell type AP6.
• Multiple AP6 cells may be used in applications that require more than 6 x pushbutton
inputs or in systems using multiple pushbutton groups to control selective channels
WARNING !
If remote pushbuttons are used they must be installed in
the same enclosure as the RTK 725B/C annunciator.
