Eaton RTK 725B range - Large Window Versions

INM 725B Rev 21
77
11.5 Large Window versions.
In the example shown 2 x four channel alarm cards plus 1 x common relay card would be fitted
in the cell positions indicated below:
Card Cell Type Cell Address
1 AP 0 0
2 AP 4 4
3 WR 7 7

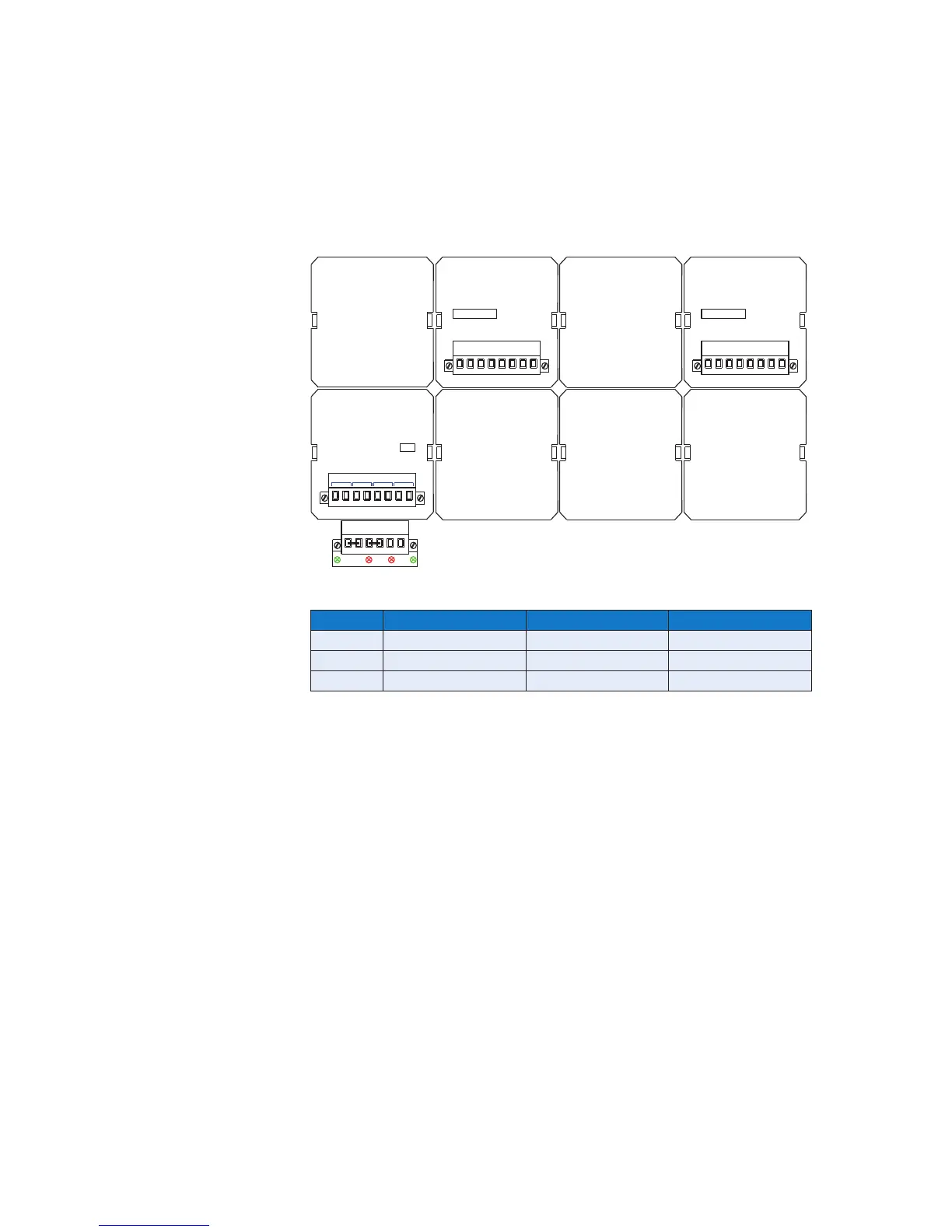

DIL switch SW1 on each card in the system should be set to match the Cell number as
indicated in the diagram above which shows the rear view of a typical large window RTK 725B
Annunciator.
For details on how to set the address please refer to page 80.
WR
OV OV +V+V OVC +VC
Rx F1 F2 Tx
CR1 CR2 CR3 CR4
CHANNEL
AP
P1
EXT. PB
INPUTS
2
3
1 4 C
P3
P2
1 - 4
2
3
1 4
9 -12
CHANNEL
CELL 6 CELL 4 CELL 2 CELL 0
CELL 7 CELL 5 CELL 3 CELL 1
P3
P2P1C
EXT. PB
INPUTS
AP
