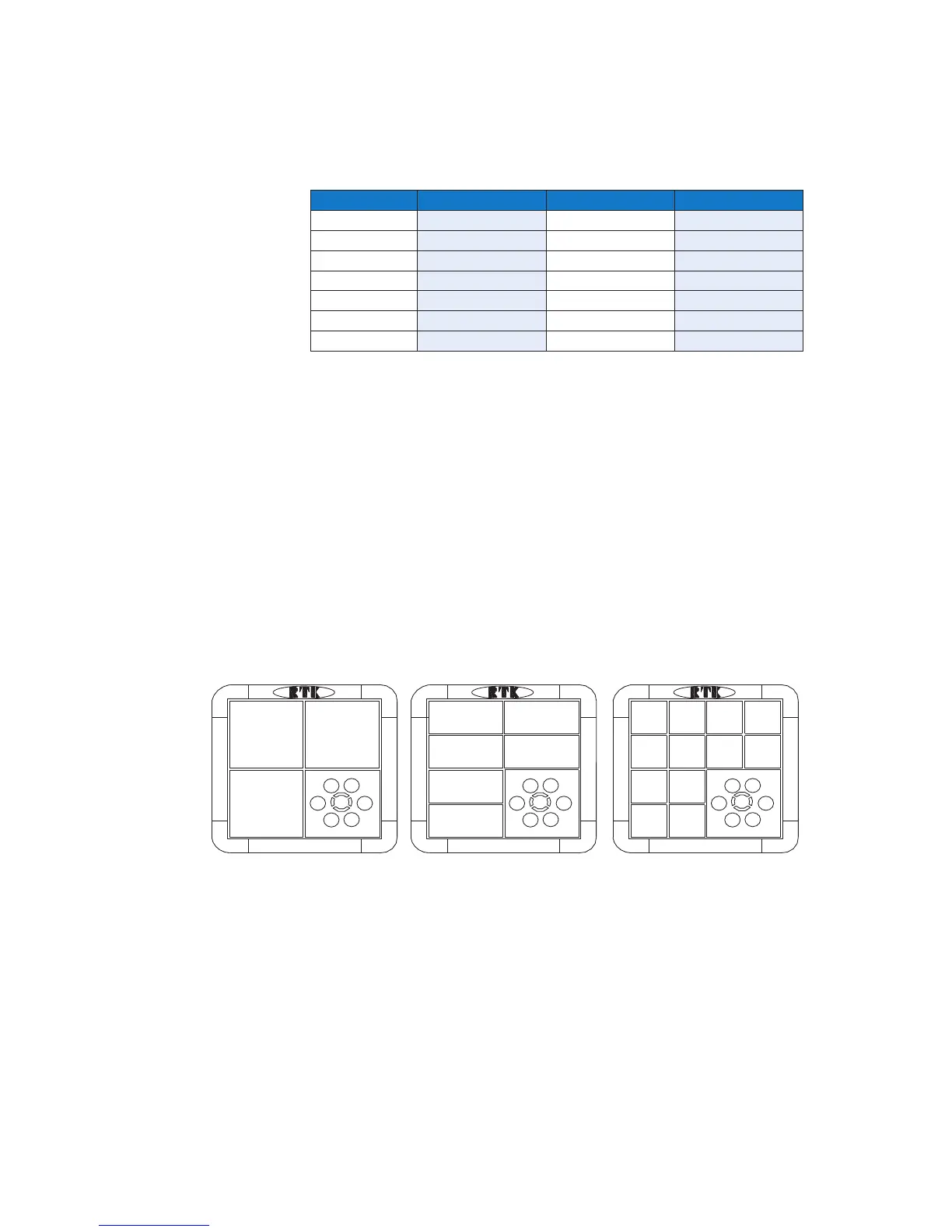

1.13 Filter & Bezel Spare Parts Numbers
Part Small Window Medium Window Large Window
Bezel ML-7227-S ML-7227-M ML-7227-L
Clear Lens ML-7228-S ML-7228-M ML-7228-L
Red filter ML-7229-S-RD ML-7229 -M-RD ML-7229-L-RD
Amber filter ML-7229-S-AM ML-7229-M-AM ML-7229-L-AM
Yellow filter ML-7229 -S-Y W ML-7229-M-Y W ML-7229-L-Y W
Blue filter ML-7229-S-BL ML-7229-M-BL ML-7229-L-BL
Green filter ML-7229-S-GN ML-7229-M-GN ML-7229 -L-GN
1.14 Laser Printed Legends
Film legends can be easily created in a style, size, font and language using Microsoft
Excel or the supplied configuration software.
Once the legend details have been entered they can be laser printed onto overhead
transparency film and placed between the clear front lens of the window assembly
and the associated coloured filter as shown above.
1.15 Window Numbering System
We have adopted the following window numbering system to aid with the location of
the film legend and the associated alarm cards.
This method is used to ensure that the legend matches the functions selected for
the designated alarm.
2
1
5
6
4
3
RESET
MUTE
SYST
TEST
FIRST
RESET
LAMP
TEST
ACK ACK
FIRST
RESET
SYST
TEST
MUTE
LAMP
TEST
RESET
FIRST
RESET
3
2
1
SYST
TEST
LAMP
TEST
MUTE
ACK
RESET
1 2
4
3
5
6
8
7
9 10
11 12
WD
COM
PWR
FC WD
COM
PWR
FC
WD
COM
PWR
FC
Large Window Version Medium Window Version Small Window Version
