Eaton RTK 725B range - A Cell - Differential Input Version

INM 725B Rev 21
17
2.2 A Cell - Differential Input Version
Cell type A is used to provide:-
• Four isolated digital inputs for use with volt-free or powered contacts

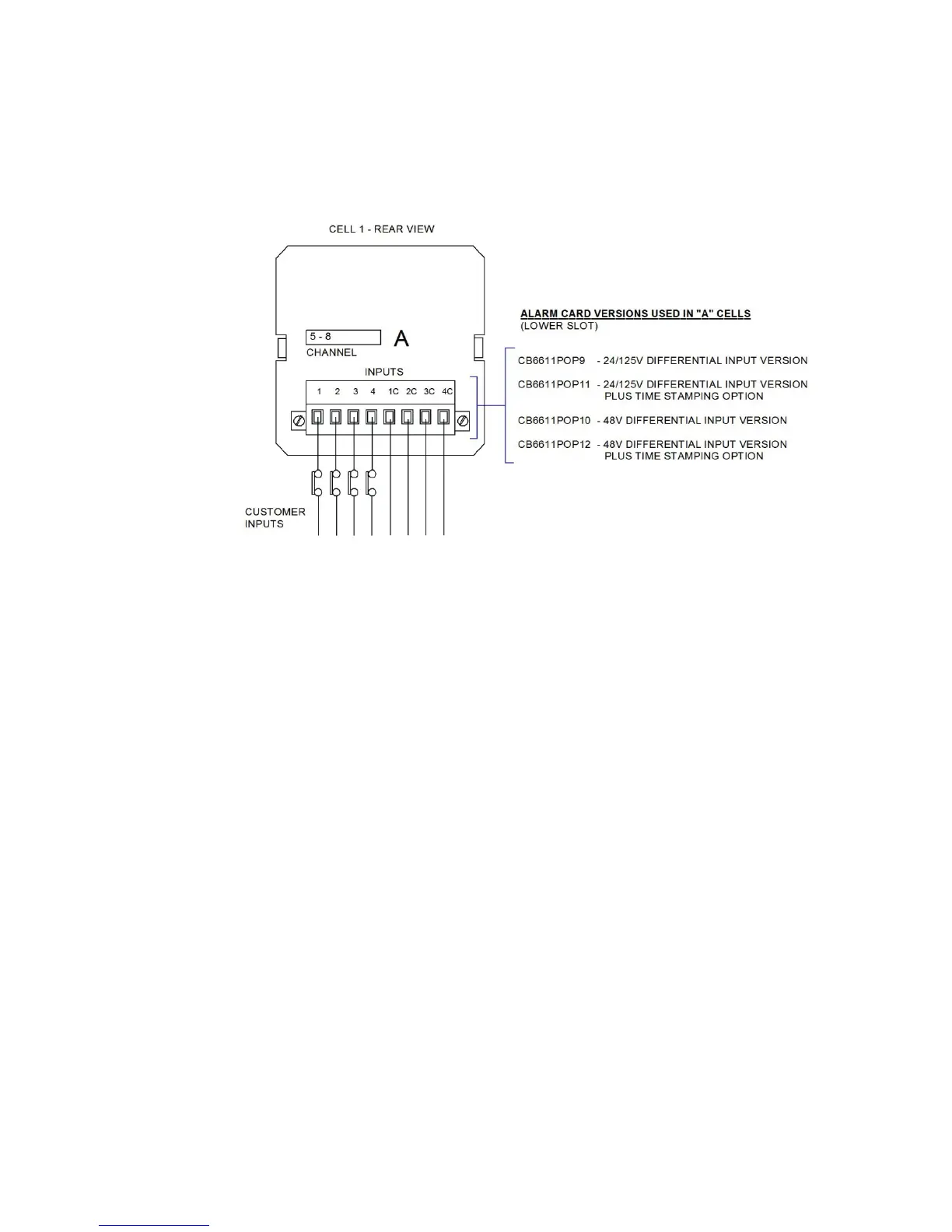

• The drawing above indicates the OPTIONAL differential input version where each
channel is provided with a fully isolated bi-polar input.
