1.7 Number Of Alarms Per Cell
Each 60mm x 60mm cell within the annunciator can contain 1, 2 or 4 alarms
depending on the required window size :-
Window Style Window Size (W x H) Alarms per Cell
Large 60mm x 60mm 1
Medium 60mm x 30mm 2
Small 30mm x 30mm 4
If requested at the time of order the unit can be supplied with intermixed window
sizes in any combination
1.8 Integral Pushbutton Location
When viewing the front of the annunciator the bottom right hand corner is normally
reserved for the integral pushbutton module.
If advised at the time of order the following alternatives are available
1. The integral pushbutton module can be placed in any cell within the
annunciator.
2. The integral pushbutton module can be replaced with active alarm
channels and remote pushbuttons can be used to control the
alarm annunciator.
3. The Pushbutton assembly can be supplied as a remote assembly which
can be interconnected with the annunciator via a factory supplied
ribbon cable.
1.9 Window Illumination
Each channel is illuminated by white “Plug-In” LED’s which offer a maintenance free
solution, lower heat dissipation and lower power consumption. Each LED assembly
is equipped with 2 pins that allows it be “plugged” into the 2 pin socket in the cell
behind each alarm window.
725B CELL
POLARITY
MARKING
FRONT VIEW SIDE VIEW
PINS
RTK
CB7028-0

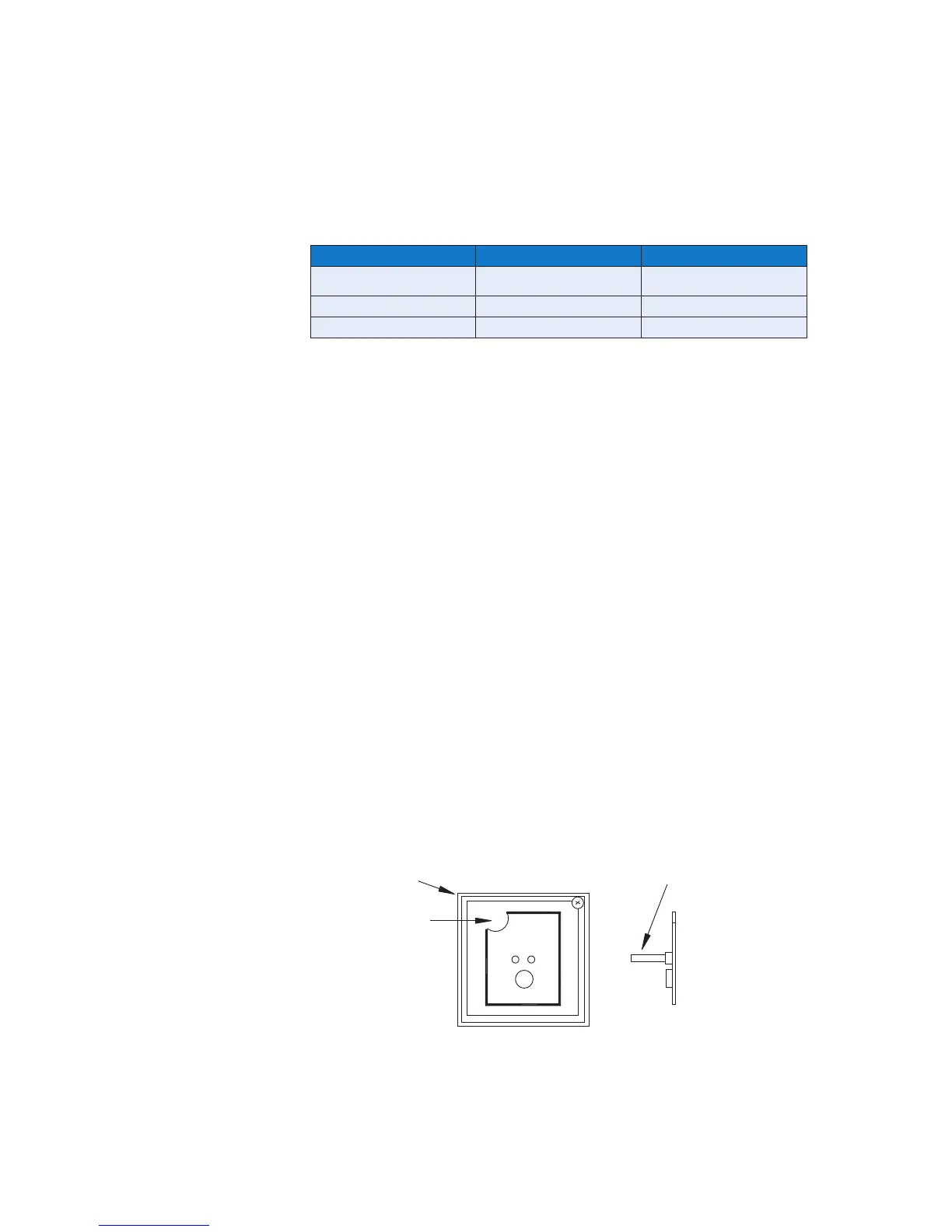

Figure 1.5 - CB7028-0 LED Assembly
