Firmware: V2.18 / V--

26.10.2022

87/119

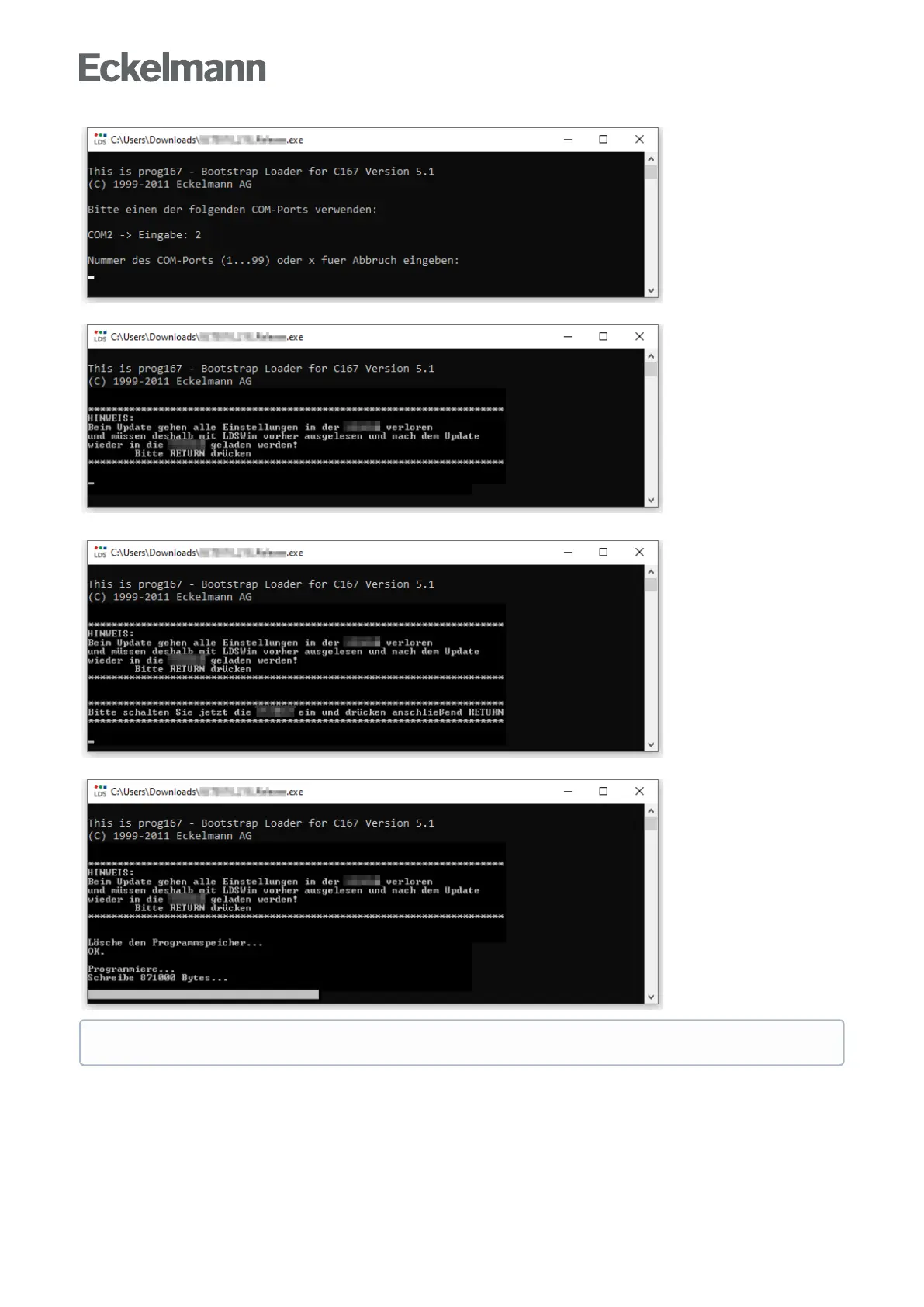

The following screen opens:

7.Press Enter (RETURN) key. The following screen opens:

8. Now switch on the controller again. Then start the download by pressing the Enter (RETURN) key:

The bar at the bottom indicates the progress of the download.


