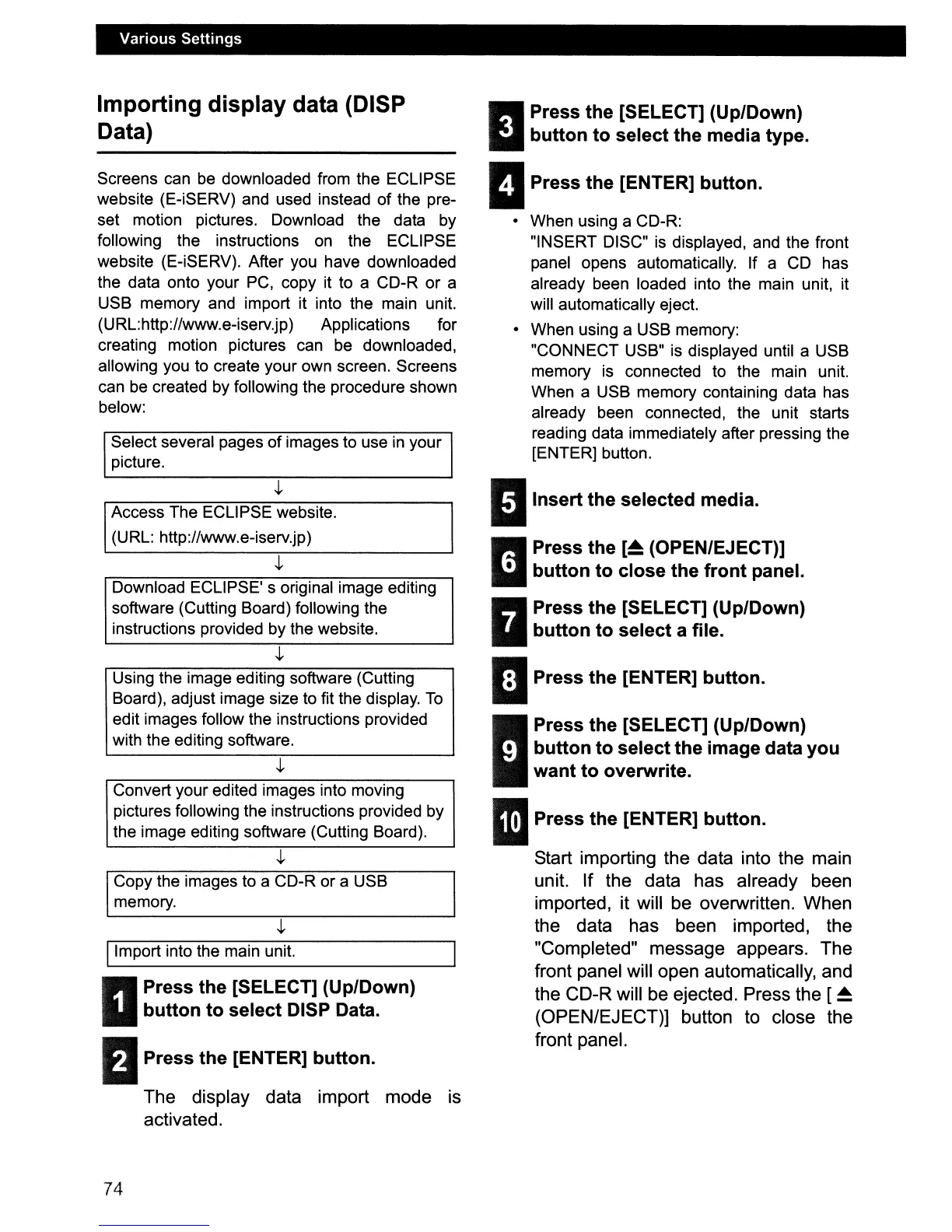

Importing display data (DISP
Data)
Screens can be downloaded from the ECLIPSE
website (E-iSERV) and used instead of the pre-
set motion pictures. Download the data
by
following the instructions on the ECLIPSE
website (E-iSERV). After you have downloaded
the data onto your
PC, copy it to a CD-R or a
USB memory and import it into the main unit.
(URL:http://www.e-iserv.jp) Applications for
creating motion pictures
can be downloaded,
allowing you to create your own screen. Screens
can
be created by following the procedure shown
below:
Select several pages of images to use
in your
picture.
Access The ECLIPSE website.
(URL: http://www.e-iserv.jp)
Download ECLIPSE's original image editing
software (Cutting Board) following the
instructions provided by the website.
Using the image editing software (Cutting
Board), adjust image size to fit the display.
To
edit images follow the instructions provided
with the editing software.
Convert your edited images into moving
pictures following the instructions provided by
the image editing software (Cutting Board).
.J-
Copy the images to a CD-R or a USB
memory.
IImport into the main unit.
II
Press the [SELECT] (Up/Down)
button to select DISP Data.
I Press the [ENTER] button.
The display data import mode is
activated.
74
II Press the [SELECT] (Up/Down)
iii button to select the media type.
IIPress the [ENTER] button.
• When using a CD-R:
"INSERT DISC"
is displayed, and the front
panel opens automatically. If a
CD has
already been loaded into the main unit, it
will automatically eject.
• When using a USB memory:
"CONNECT USB"
is displayed until a USB
memory
is connected to the main unit.
When a USB memory containing data has
already been connected, the unit starts
reading data immediately after pressing the
[ENTER] button.
Ellnsert the selected media.
I!! Press the [~ (OPEN/EJECT)]
iii button to close the front panel.
II Press the [SELECT] (Up/Down)
II button to select a file.
II Press the [ENTER] button.
I
Press the [SELECT] (Up/Down)
• button to select the image data you
want to overwrite.
II Press the [ENTER] button.
Start importing the data into the main
unit. If the data has already been
imported, it will be overwritten. When
the data has been imported, the
"Completed" message appears. The
front panel will open automatically, and
the CD-R will be ejected. Press the
[~
(OPEN/EJECT)] button to close the
front panel.
