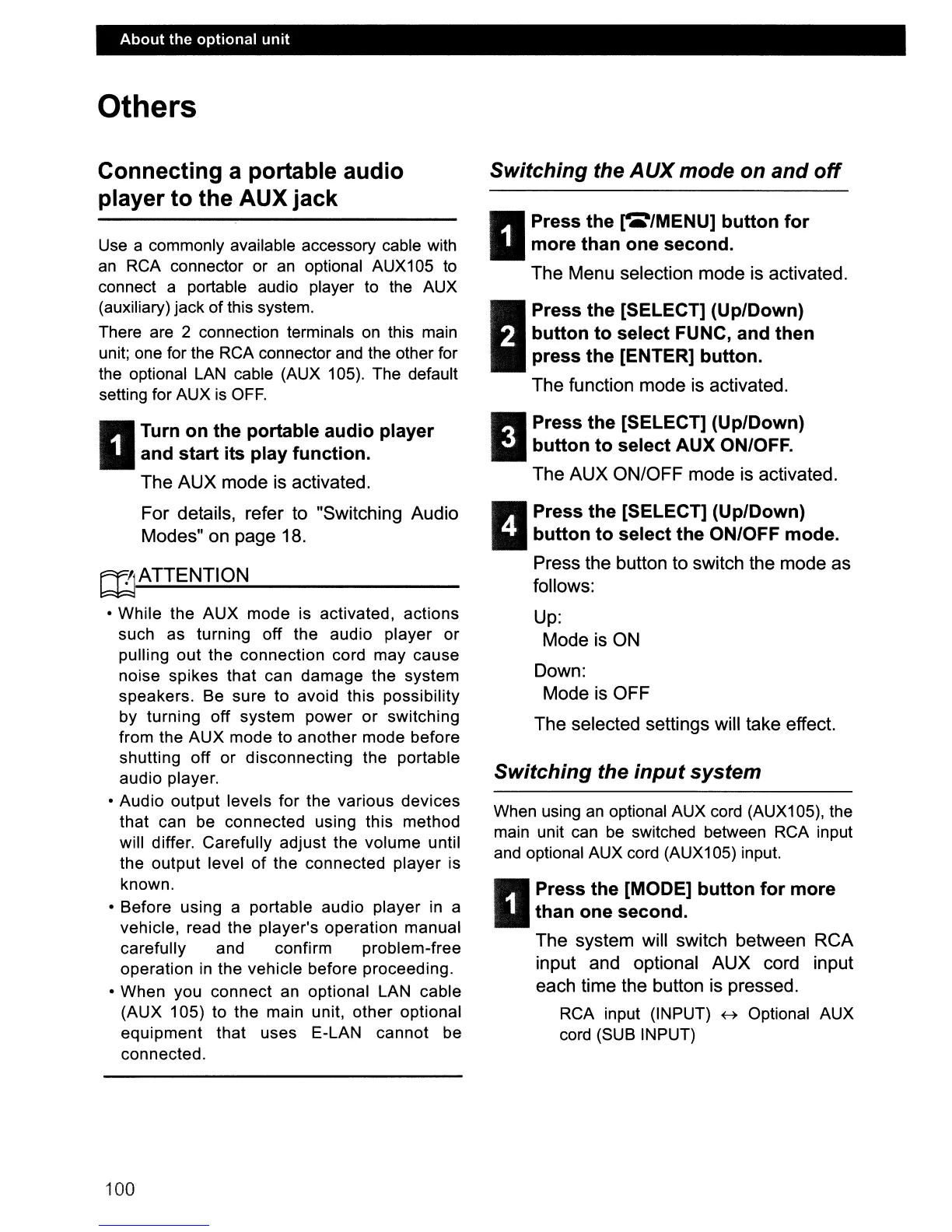

About the optional unit
Others
Connecting a portable audio
player to the AUX jack
Use a commonly available accessory cable with
an RCA connector or an optional AUX105 to
connect a portable audio player to the AUX
(auxiliary) jack
of this system.
There are 2 connection terminals
on this main
unit; one for the RCA connector and the other for
the optional LAN cable (AUX 105). The default
setting for AUX
is OFF.
II
Turn on the portable audio player
and start its play function.
The AUX mode is activated.
For details, refer to "Switching Audio
Modes" on page
18.
rnATTENTION
• While the AUX mode is activated, actions
such as turning off the audio player or
pulling out the connection cord may cause
noise spikes that can damage the system
speakers. Be sure to avoid this possibility
by turning off system power or switching
from the AUX mode to another mode before
shutting off or disconnecting the portable
audio player.
• Audio output levels for the various devices
that can be connected using this method
will differ. Carefully adjust the volume until
the output level
of the connected player is
known.
• Before using a portable audio player
in a
vehicle, read the player's operation manual
carefully and confirm problem-free
operation
in the vehicle before proceeding.
• When you connect an optional LAN cable
(AUX 105) to the main unit, other optional
equipment that uses E-LAN cannot be
connected.
100
Switching the AUX mode on and off
II
Press the ~/MENU] button for
more than one second.
The Menu selection mode is activated.
a
Press the [SELECT] (Up/Down)
button to select FUNC, and then
press the [ENTER] button.
The function mode is activated.
II
Press the [SELECT] (Up/Down)
button to select AUX ON/OFF.
The AUX ON/OFF mode is activated.
II
Press the [SELECT] (Up/Down)
~ button to select the ON/OFF mode.
Press the button to switch the mode as
follows:
Up:
Mode is ON
Down:
Mode is OFF
The selected settings will take effect.
Switching the input system
When using an optional AUX cord (AUX105). the
main unit can be switched between RCA input
and optional AUX cord (AUX105) input.
II
Press the [MODE] button for more
than one second.
The system will switch between RCA
input and optional AUX cord input
each time the button is pressed.
RCA input (INPUT) B Optional AUX
cord (SUB INPUT)
