Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

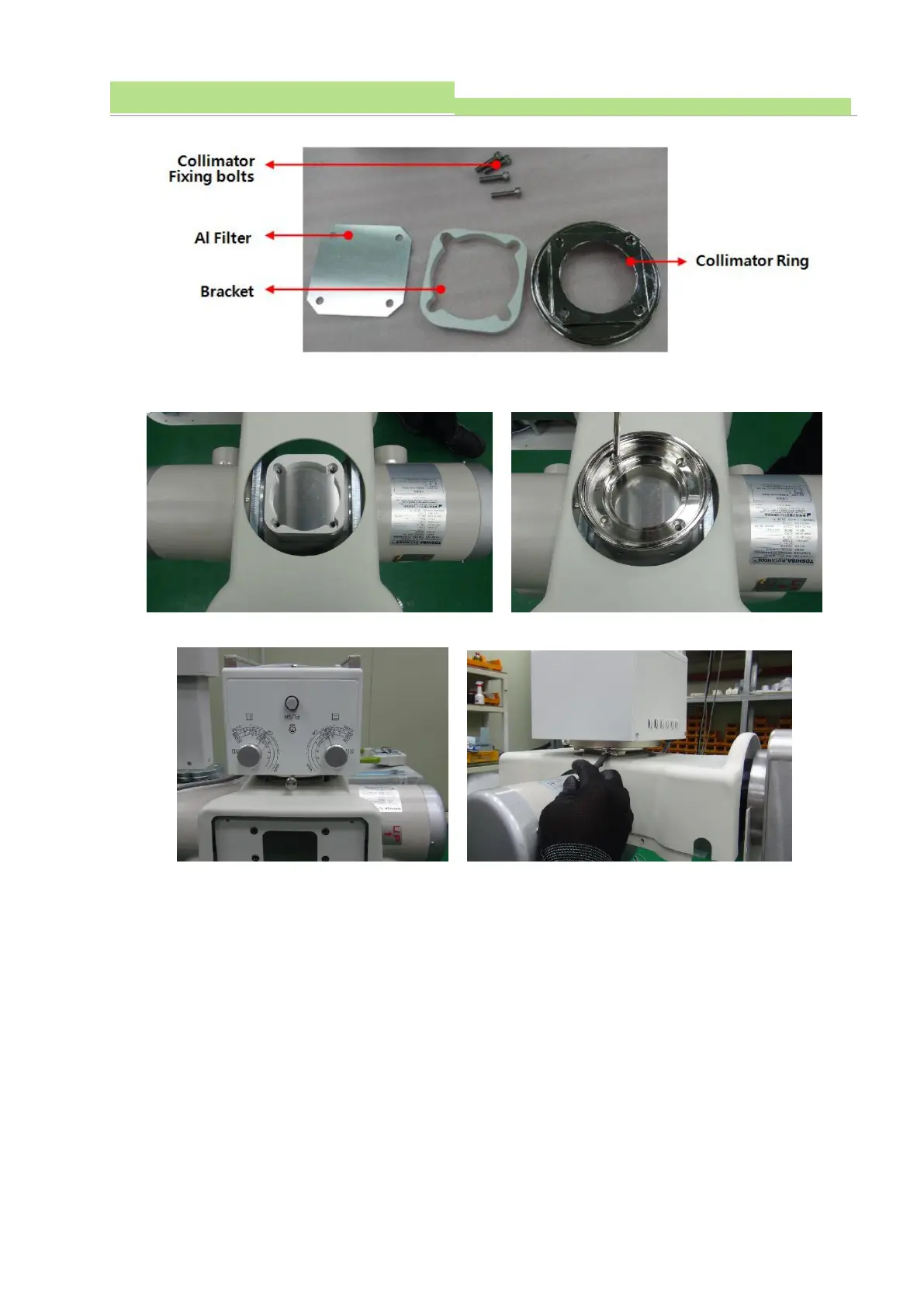

● Before collimator module installation, please put AL filter first and bracket then insert collimator ring
with screws.
● Now put collimator on it and join the bolts to fix it.
● Collimator is on the position now. (Turn the tube to normal position)
