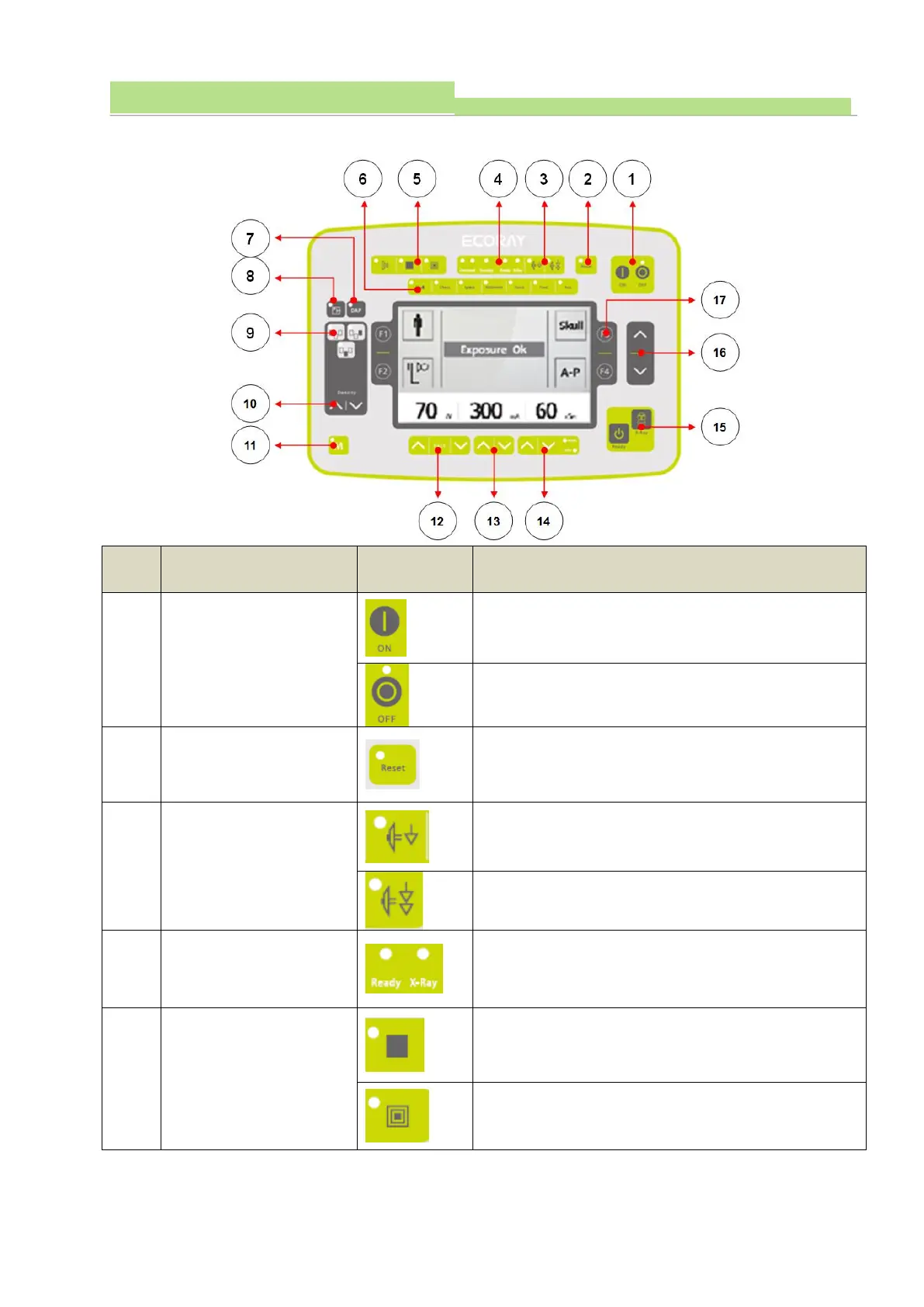

7.2.4 Membrane Key display and functions
No.
Name
Icon
Function
1
Power ON / Off Switch
Power ON.
Power off.
2
Reset Switch
Make the generator RESET when any error stop or
abnormal display is appeared.
3
Dual Rotor Speed
Anode Speed = Low Speed
Anode Speed = High Speed
4
X-Ray Exposure status
Displays Ready, X-Ray condition to shoot .
5
Tube Filament display
Tube Filament = at Large Focus.
Tube Filament = at Small Focus.
