Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

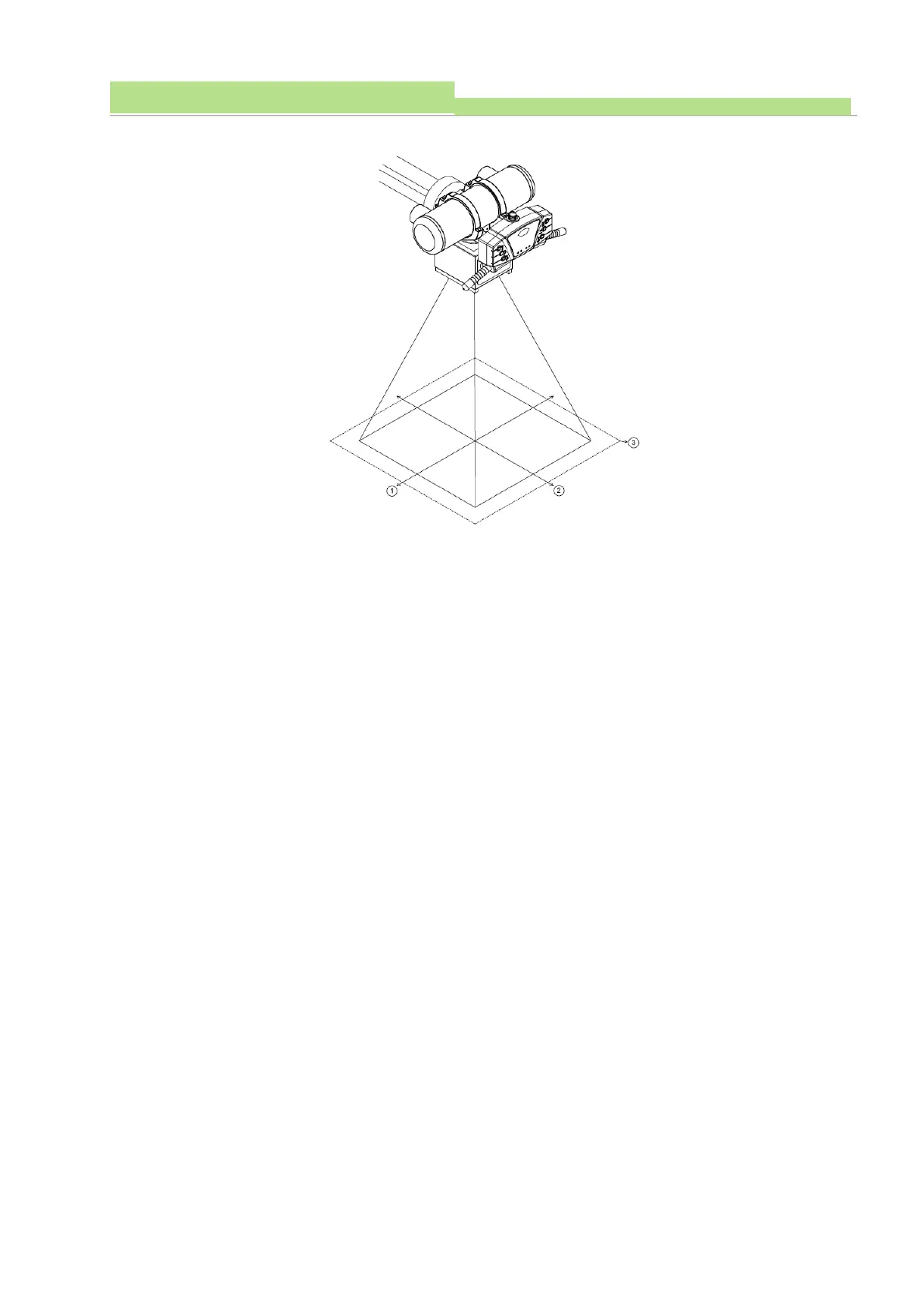

● Collimator movement
(1) Move the tube stand to the patient's X-ray exposure point.
(2) The minimum distance between the Tube Focal and Detector surface should be at least 100 cm.
(3) The distance between the Tube Focal and the patient should be as long as possible.
● Collimator Lamp operation
(1) Press the Lamp operation switch.
(2) The lamp goes off automatically after about 30 seconds after the switch is turned on.
(3) Adjust the X-ray irradiation area by adjusting the X and Y axis knobs while the lamp is on.
(4) If the Lamp is turned off while adjusting the X-ray irradiation area, press the Lamp operation switch
to turn the Lamp ON again.
(5) After adjusting the X-ray irradiation area, press the X-ray Exposure switch to take an X-ray.
NOTE▶
Even with X-Ray shooting with the Collimator Lamp on, there is no problem of X-Ray exposure.
