HF-525Plus Installation, Operation and Service Manual
12.4.5 HV-DRV-OLP trouble or Error Pro O- - - error (XR7-FnD Board)
1) Consist of PCB
2) Check procedure about Board
(1) Board Name: XR7-FnD Board
(2) Functions: Controlling IGBT and Tube Filament

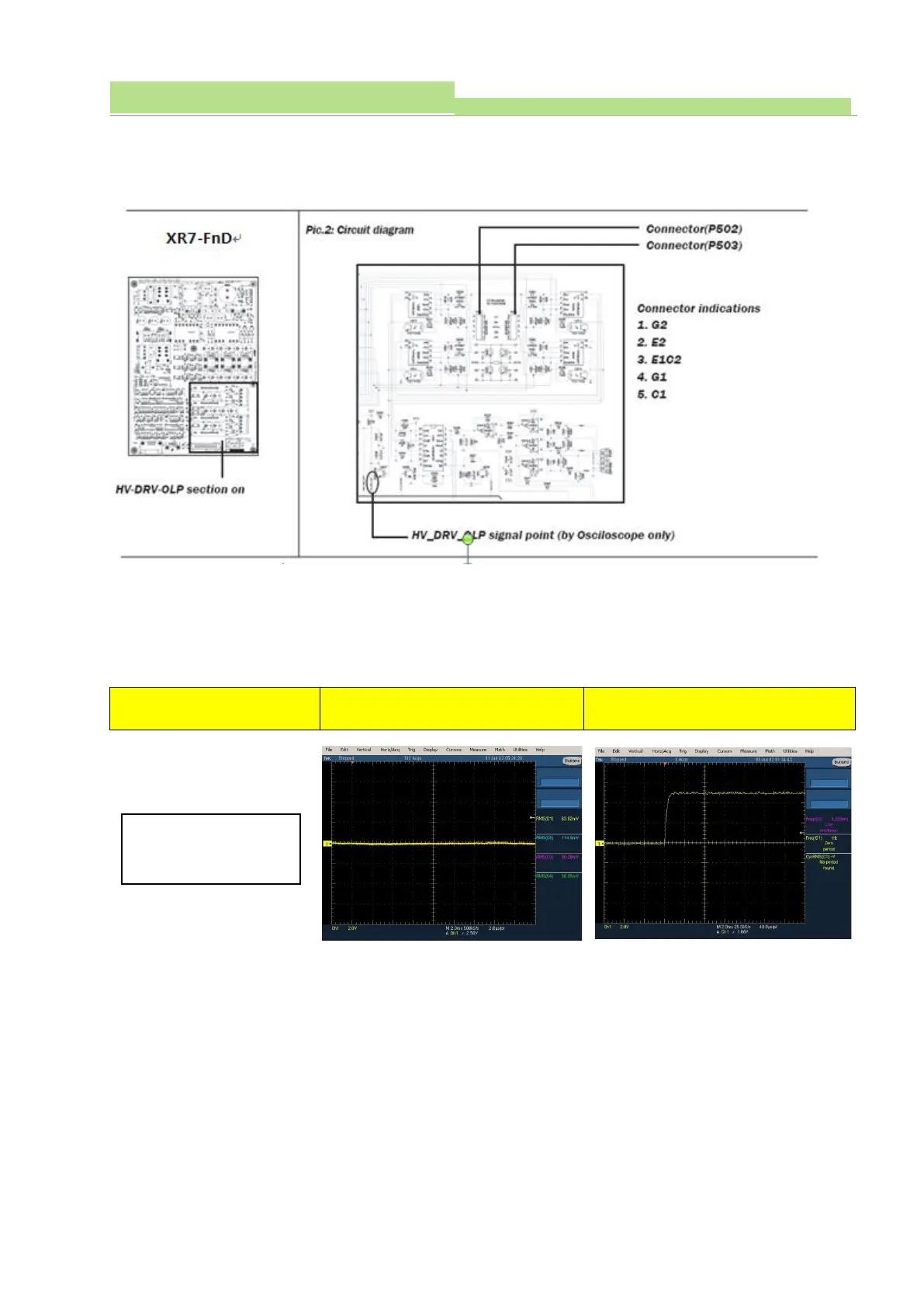

(3) Check wiring condition of XR7-FnD Board and check waveforms at the HV-DRV-OLP check point with
oscilloscope when IGBT Device signal and protection circuit trouble and checked waveforms are as follows.
Displayed on console
(Error Pro o---)
To Next Page
